1022 EX (1697302-01) - Simplicity 22" Snow Thrower, 9.5hp Remote Rotation Group Parts Diagram

22" Snow Thrower, 9.5hp

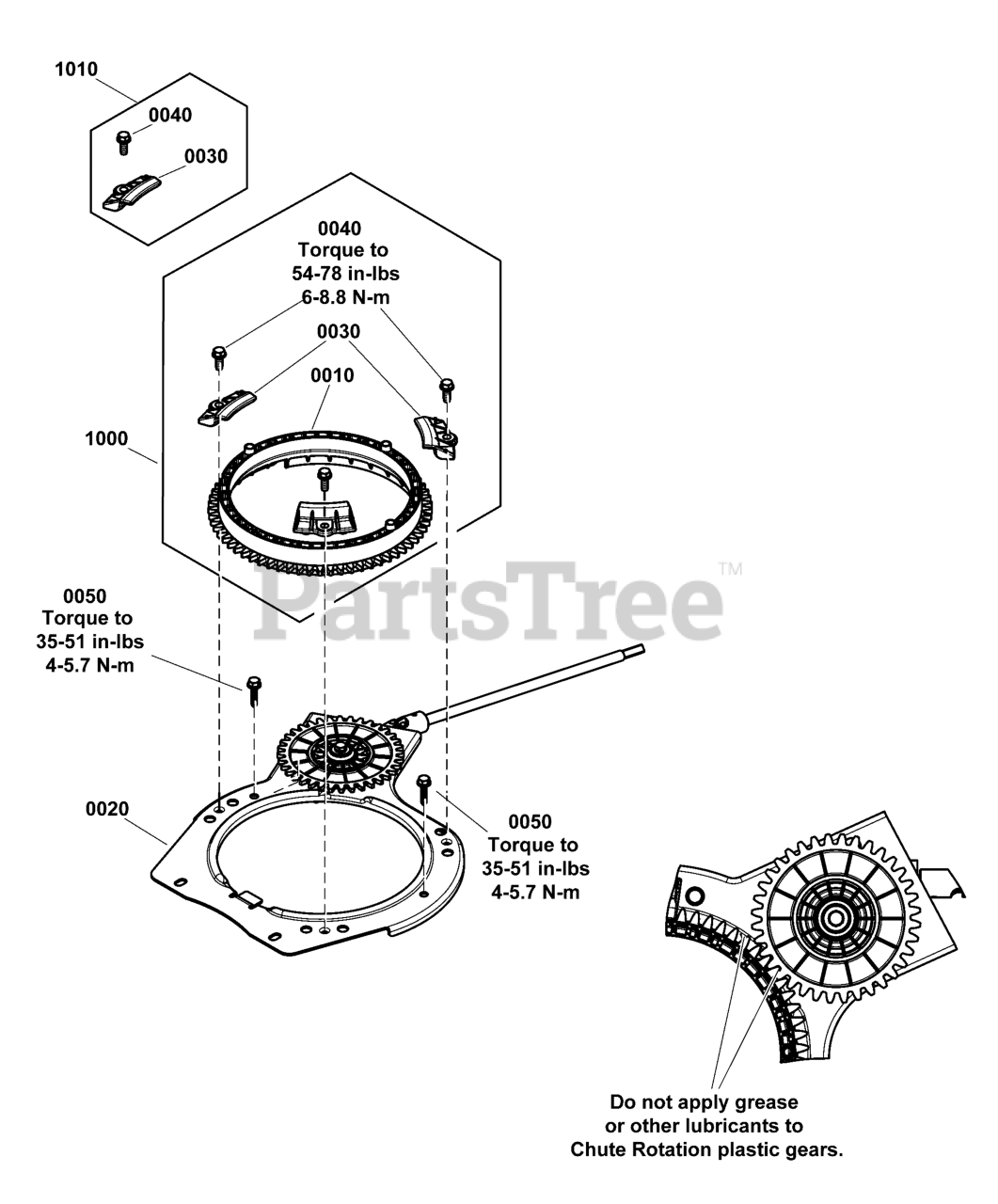

Remote Rotation Group Parts Diagram

  • Title
0020

Simplicity 770634

REMOTE CHUTE ASSEMBLY, Plate

$146.99

$

In Stock, only 1 left!

0

1000

Simplicity 709922

KIT, CHUTE GEAR

Note: (Incl. Ref. Nos. 0010, 0030, 0040)

$50.99

$

In Stock, only 4 left!

0

0010

GEAR, 65T, 8P, Driven, SS Chute Rotation

$

$

Not available

0030

RETAINER, Chute

$

$

Not available

0040

SCREW, Hex Washer Head, Thread Roll, 1/4-20 X 5/8

$

$

Not available

1010

Simplicity 772082

KIT, Chute Retainer

Note: (Incl. Ref. Nos. 0030 & 0040)

$5.99

$

Usually ships in 2-12 days

0

0030

RETAINER, Chute

$

$

Not available

0040

SCREW, Hex Washer Head, Thread Roll, 1/4-20 X 5/8

$

$

Not available

0050

Simplicity 706516

SCREW, Hi-Low, 1/4-15 x 1

$3.49

$

In Stock, only 2 left!

0
