1022 EX (1697292-01) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2020) Auger Drive Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

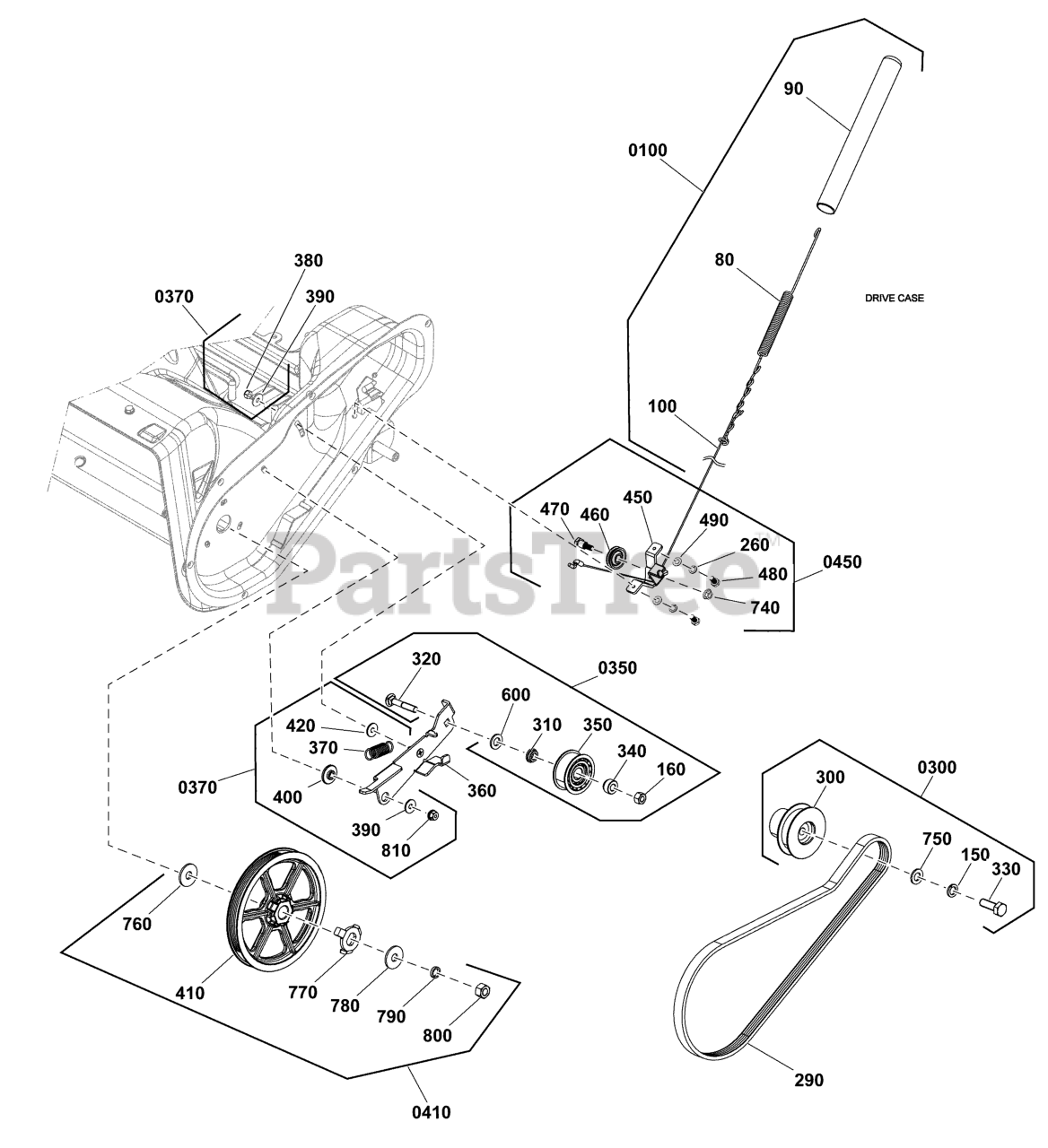

Auger Drive Group Parts Diagram

  • Title

290

Briggs & Stratton 709868

BELT, Drive

$40.99

$

In Stock, Qty 5

0

360

Briggs & Stratton 709927

PLATE, Tension

$12.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 709870

KIT, AUGER CABLE

Note: (Incl. Ref. Nos. 80, 90, 100)

$51.99

$

In Stock, only 2 left!

0

80

SPRING, Cable

$

$

Not available

90

SLEEVE, Rubber

$

$

Not available

100

CABLE, Auger

$

$

Not available

0300

Briggs & Stratton 709876

KIT, ENGINE PULLEY

Note: (Incl. Ref. Nos. 150, 300, 330, 750)

$40.99

$

In Stock, only 1 left!

0

150

WASHER, M10, Split Lock

$

$

Not available

300

PULLEY, Driver

$

$

Not available

330

Briggs & Stratton 720016

SCREW, 3/8-24 x 1, Hex Head
(Superseded to 001X20MA)

$4.49

$

In Stock, only 4 left!

0

750

WASHER, 10x28x3, Flat

$

$

Not available

0350

Briggs & Stratton 709872

KIT, IDLER PULLEY, TENSION PLATE

Note: (Incl. Ref. Nos. 160, 310, 320, 340, 350, 600)

$30.99

$

Usually ships in 2-12 days

0

160

NUT, M8, Lock

$

$

Not available

310

Spacer, 8.5 ID, 18 OD, 6 Thick, Shoulder

$

$

Not available

320

BOLT, M8x40, Carriage

$

$

Not available

340

SPACER, Idler Pulley

$

$

Not available

350

PULLEY, 8 ID, 53 OD, 22 Wide, Idler

$

$

Not available

600

WASHER, 10x20x1.8, Flat

$

$

Not available

0370

Briggs & Stratton 709874

KIT, HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 370, 380, 390, 400, 420, 810)

$13.99

$

Usually ships in 2-12 days

0

370

Briggs & Stratton 709869

SPRING, Tension

$6.49

$

Usually ships in 2-12 days

0

380

NUT, M6, Lock

$

$

Not available

390

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

400

SPACER, Idler Arm

$

$

Not available

420

WASHER, 8x22x2, Flat

$

$

Not available

810

NUT, Lock, Hex Flange Head, M6

$

$

Not available

0410

Briggs & Stratton 709875

KIT, AUGER PULLEY

Note: (Incl. Ref. Nos. 410, 760, 770, 780, 790, 800)

$39.99

$

In Stock, Qty 9

0

410

PULLEY, Driven

$

$

Not available

760

WASHER, Flat, 18x24x2

$

$

Not available

770

CLAW, Coupling

$

$

Not available

780

WASHER, 10X25X2, Flat

$

$

Not available

790

WASHER, M10, Split Lock

$

$

Not available

800

NUT, Lock, M10

$

$

Not available

0450

Briggs & Stratton 709871

KIT, CABLE BASE, AUGER DRIVE

Note: (Incl. Ref. Nos. 260, 450, 460, 470, 480, 490, 740)

$24.99

$

In Stock, only 1 left!

0

260

WASHER, M6, Split Lock, MC

$

$

Not available

450

BRACKET, Cable Guide

$

$

Not available

460

PULLEY, Cable

$

$

Not available

470

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

480

Briggs & Stratton 7091835

SCREW, M6 1.0X12MM, Hex Head, CZ
(Superseded to 7091835YP)

$3.49

$

Usually ships in 2-12 days

0

490

WASHER, 6x12x.7, Flat

$

$

Not available

740

NUT, M6, Flange Head

$

$

Not available
