1022 EX (1696847-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2018) Engine Group - 9.5 & 11.5GTP Parts Diagram

22" Snow Thrower, 9.5 Gross TP

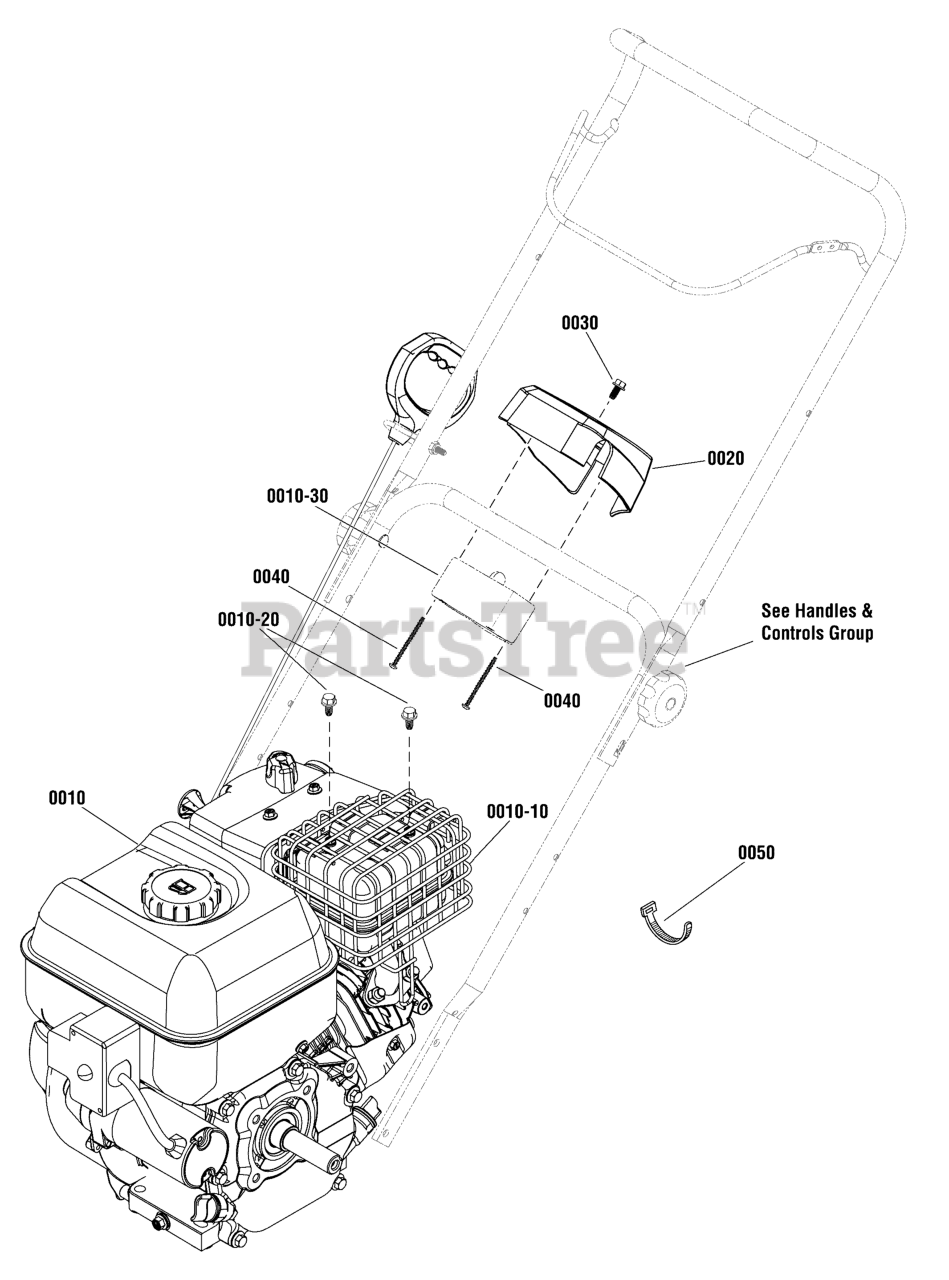

Engine Group - 9.5 & 11.5GTP Parts Diagram

  • Title

0010

Murray 13A132-0003-F1

* ENGINE, Briggs & Stratton, 9.5 GTP, Snow Series

Note: (Engine Model: 13A132-0003-F1)

$

$

Currently unavailable

0010

Murray 13A135-0002-F1

* ENGINE, Briggs & Stratton, 9.5 GTP, Snow Series

Note: (Engine Model: 13A135-0002-F1)

$

$

Currently unavailable

0010

Murray 15C107-0014-F8

* ENGINE, Briggs & Stratton, 11.5 GTP, 1150 Series

Note: (Engine Model: 15C107-0014-F8)

$

$

Not available

0010-10

Murray 591443

* GUARD, Muffler

Note: (Used on 9.5GTP Models)

$67.99

$

Usually ships in 2-12 days

0

0010-10

Murray 799028

* GUARD, Muffler

Note: (Used on 11.5GTP Models)

$47.99

$

Usually ships in 2-12 days

0

0010-20

Murray 590850

SCREW

Note: (Used on 9.5GTP Models)

$3.99

$

In Stock, Qty 7

0

0010-20

Murray 699854

* SCREW, Muffler Guard

Note: (Used on 11.5GTP Models)

$3.99

$

In Stock, Qty 9

0

0010-30

* STARTER, 110V

$

$

Not available

0020

Murray 1754873YP

HOUSING, Starter, 110V

Note: (Used on 9.5GTP Electric Start Models)

$40.99

$

Usually ships in 2-12 days

0

0020

Murray 1750032YP

HOUSING, Starter, 110V

Note: (Used on 11.5GTP Electric Start Models)

$8.99

$

Usually ships in 2-12 days

0

0030

Murray 704130

SCREW, Taptite, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 11

0

0040

Murray 703066

SCREW, 8-16 x 2, Pan Head Phillips, Plast.

Note: (Used on 9.5GTP Electric Start Models)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 1750593YP

SCREW, Pan Head Phillips, Plast., 8-16 x 2

Note: (Used on 11.5GTP Electric Start Models)

$3.49

$

In Stock, only 2 left!

0

0050

Murray 7024641YP

WIRE TIE, 5.5" L

$5.99

$

In Stock, only 1 left!

0
