1022 EX (1696726-00) - Simplicity 22" Snow Thrower, 9.5hp Chute Group - Remote Parts Diagram

22" Snow Thrower, 9.5hp

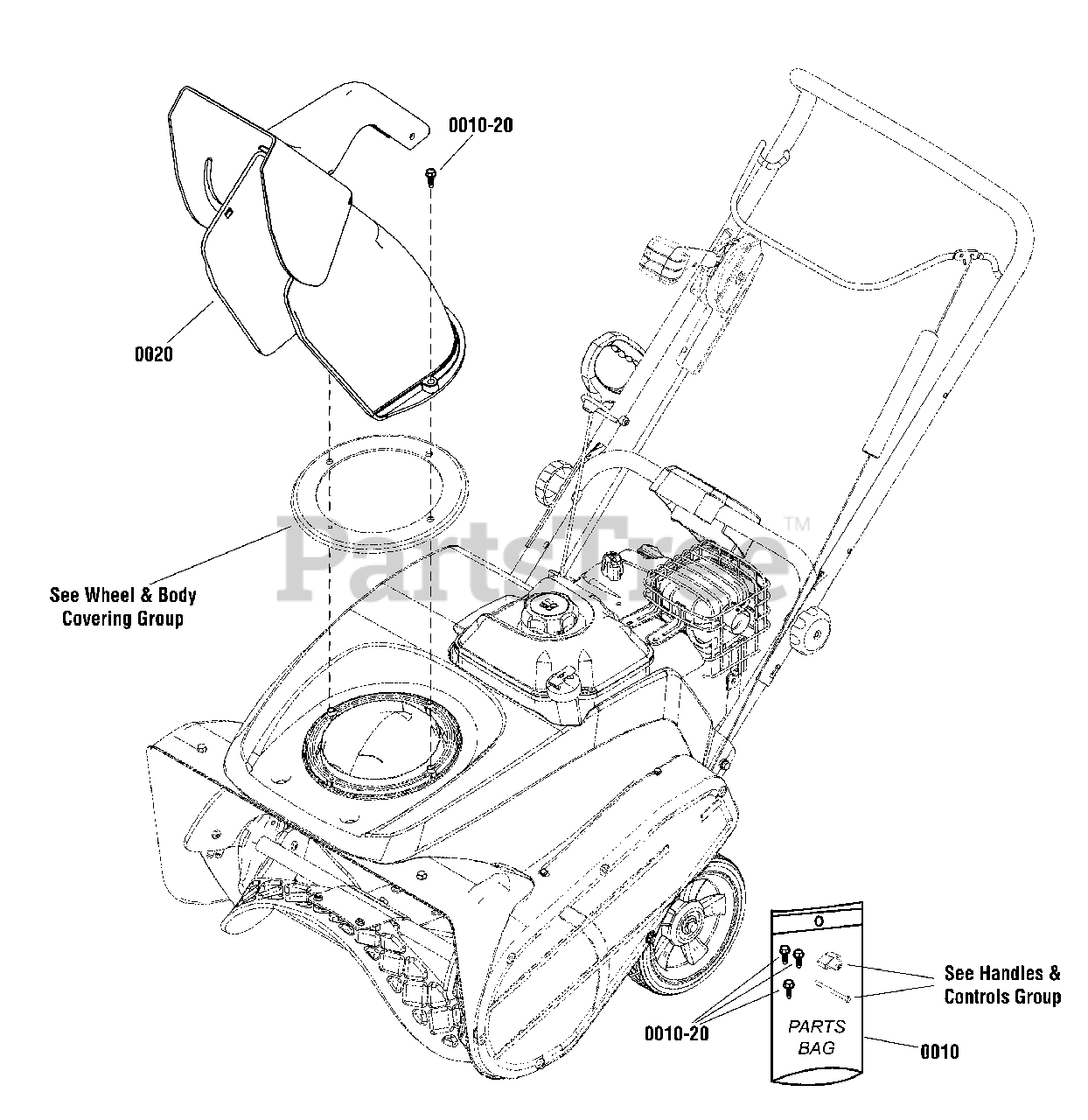

Chute Group - Remote Parts Diagram

  • Title

0010

Simplicity 1753153

PARTS BAG

Note: (Not a serviceable part, order item 0010-20)

$

$

Not available

0010-20

Simplicity 1751399YP

SCREW, Hex Washer Head, HI-LO, 1/4-15 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

--

Simplicity 194289GS

KNOB, Handle

Note: (See Handles & Controls Group)

$7.99

$

Usually ships in 2-12 days

0

--

Simplicity 704208

CAPSCREW, Hex Head, 1/4-20 x 3, G5

Note: (See Handles & Controls Group)

$4.49

$

Usually ships in 2-12 days

0

0020

Simplicity 709756

CHUTE ASSEMBLY

$128.99

$

In Stock, only 3 left!

0
