1022 ER (1697144-01) - Simplicity 22" Snow Thrower, 9.5hp Chute Rotation Group Parts Diagram

22" Snow Thrower, 9.5hp

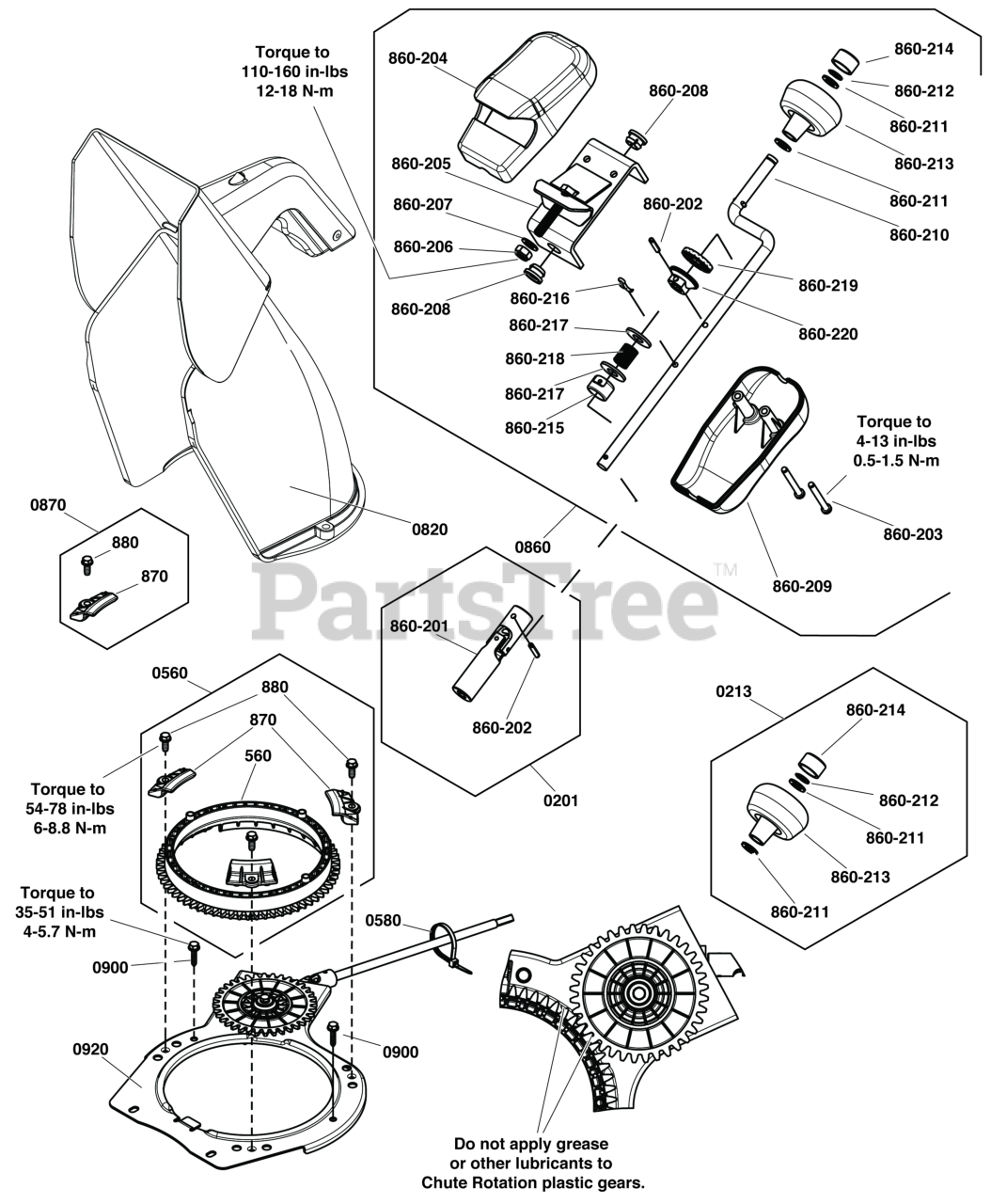

Chute Rotation Group Parts Diagram

  • Title
0201

Simplicity 770635

UNIVERSAL JOINT

Note: (Incl. Ref. Nos. 860-201 & 860-202)

$36.99

$

In Stock, only 1 left!

0

860-201

JOINT, Universal

$

$

Not available

860-202

PIN, 4 X 20, Spring

$

$

Not available

0213

Simplicity 707502

KIT, Chute Knob

Note: (Incl. Ref. Nos. 860-211, 860-212, 860-213 & 860-214)

$11.99

$

Usually ships in 2-12 days

0

860-211

WASHER, 10x20x1, Flat

$

$

Not available

860-212

RING, External Retaining, 10

$

$

Not available

860-213

KNOB, Chute Rotator

$

$

Not available

860-214

KNOB, Cover

$

$

Not available

0560

Simplicity 709922

KIT, CHUTE GEAR

Note: (Incl. Ref. Nos. 560, 870 & 880)

$50.99

$

In Stock, only 4 left!

0

560

GEAR, 65T, 8P, Driven, SS Chute Rotation

$

$

Not available

870

RETAINER, Chute

$

$

Not available

880

SCREW, Hex Washer Head, Thread Roll, 1/4-20 X 5/8

$

$

Not available

0580

Simplicity 1740650MA

TIE, Cable, 7.4", Orange

$

$

Not available

0820

Simplicity 709756

CHUTE ASSEMBLY, Quick

$128.99

$

In Stock, only 3 left!

0

0860

Simplicity 770633

REMOTE CHUTE ASSEMBLY, Handle

Note: (Incl. Ref. Nos. 0860-203 Thru 0860-220)

$63.99

$

Usually ships in 2-12 days

0

860-203

SCREW, 4.8x45, Phillips Head Self Tapping

$

$

Not available

860-204

COVER, Top

$

$

Not available

860-205

ASSEMBLY, Rotater Bracket

$

$

Not available

860-206

NUT, M8, Lock

$

$

Not available

860-207

WASHER, 8x16x1.6, Flat

$

$

Not available

860-208

RING, SJ Mounting Plate, Plastic

$

$

Not available

860-209

COVER, Bottom

$

$

Not available

860-210

LEVER, Rotator

$

$

Not available

860-211

WASHER, 10x20x1, Flat

$

$

Not available

860-212

RING, External Retaining, 10

$

$

Not available

860-213

KNOB, Chute Rotator

$

$

Not available

860-214

KNOB, Cover

$

$

Not available

860-215

SLEEVE, Limit

$

$

Not available

860-216

PIN, 2.5X16, Cotter

$

$

Not available

860-217

WASHER, 10X25X2, Flat

$

$

Not available

860-218

SPRING

$

$

Not available

860-219

WASHER, Rubber, XX

$

$

Not available

860-220

BUSHING, Remote

$

$

Not available

0870

Simplicity 772082

KIT, Chute Retainer

Note: (Incl. Ref. Nos. 870 & 880)

$5.99

$

Usually ships in 2-12 days

0

870

RETAINER, Chute

$

$

Not available

880

SCREW, Hex Washer Head, Thread Roll, 1/4-20 X 5/8

$

$

Not available

0900

Simplicity 706516

SCREW, Hi-Low, 1/4-15 x 1

$3.49

$

In Stock, only 2 left!

0

0920

Simplicity 770634

REMOTE CHUTE ASSEMBLY, Plate

$146.99

$

In Stock, only 1 left!

0
