1022 ER (1696727-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2018) Frame Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

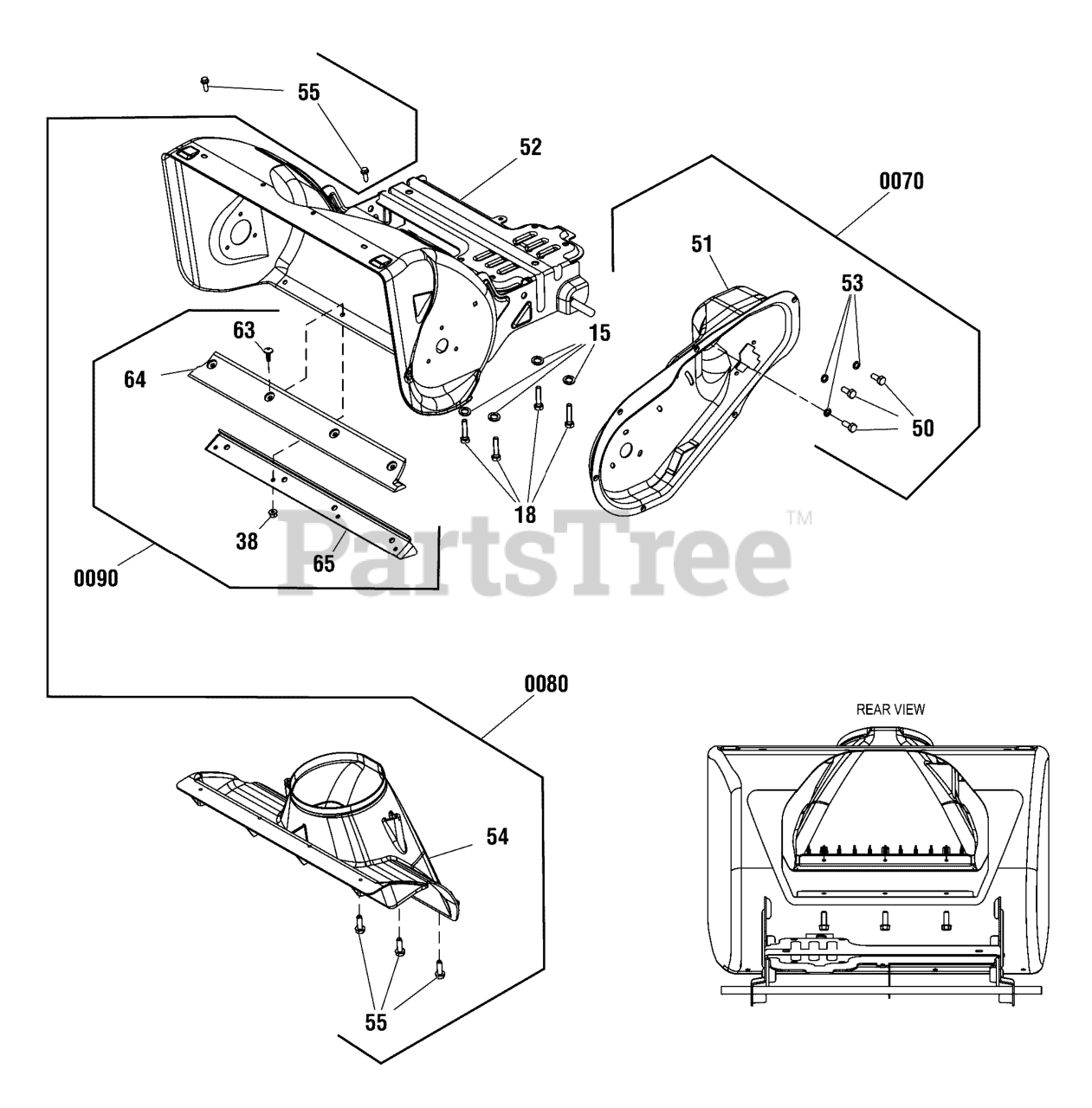

Frame Group Parts Diagram

  • Title

15

WASHER, M10, Split Lock

$

$

Not available

18

SCREW-HEX WSHR HD TAPTT 3/8-16X1.250, ZC

$

$

Not available

52

HOUSING, Auger

$

$

Not available

0070

Murray 709866

KIT, DRIVE HOUSING

Note: (Incl. Ref. Nos. 50, 51, 53)

$69.99

$

Usually ships in 2-12 days

0

50

Murray 1752876YP

CAPSCREW, Hex Head, 5/16-24 x 5/8

$3.99

$

In Stock, only 2 left!

0

51

HOUSING, Drive

$

$

Not available

53

LOCKWASHER, Spring, 5/16

$

$

Not available

0080

Murray 709867

KIT, CHIMNEY

Note: (Incl. Ref. Nos. 54, 55)

$47.99

$

Usually ships in 2-12 days

0

54

CHIMNEY

$

$

Not available

55

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0090

Murray 770004

KIT-SCRAPER BAR

Note: (Incl. Ref. Nos. 38, 63, 64, 65)

$86.99

$

Usually ships in 2-12 days

0

38

Murray 1752935YP

NUT, 1/4-20, Nylon Hex, CZ

$3.49

$

In Stock, Qty 9

0

63

Murray 5025299X5YP

SCREW, 1/4-20 X 5/8

$4.99

$

In Stock, only 1 left!

0

64

BAR, Scraper, Robolon

$

$

Not available

65

Murray 1752660AYP

SUPPORT, Scraper Blade

$28.99

$

In Stock, only 4 left!

0
