1022 EE (1697295-00) - Simplicity 22" Snow Thrower, 9.5hp (2020) Chute Rotation Group - Electric Parts Diagram

22" Snow Thrower, 9.5hp

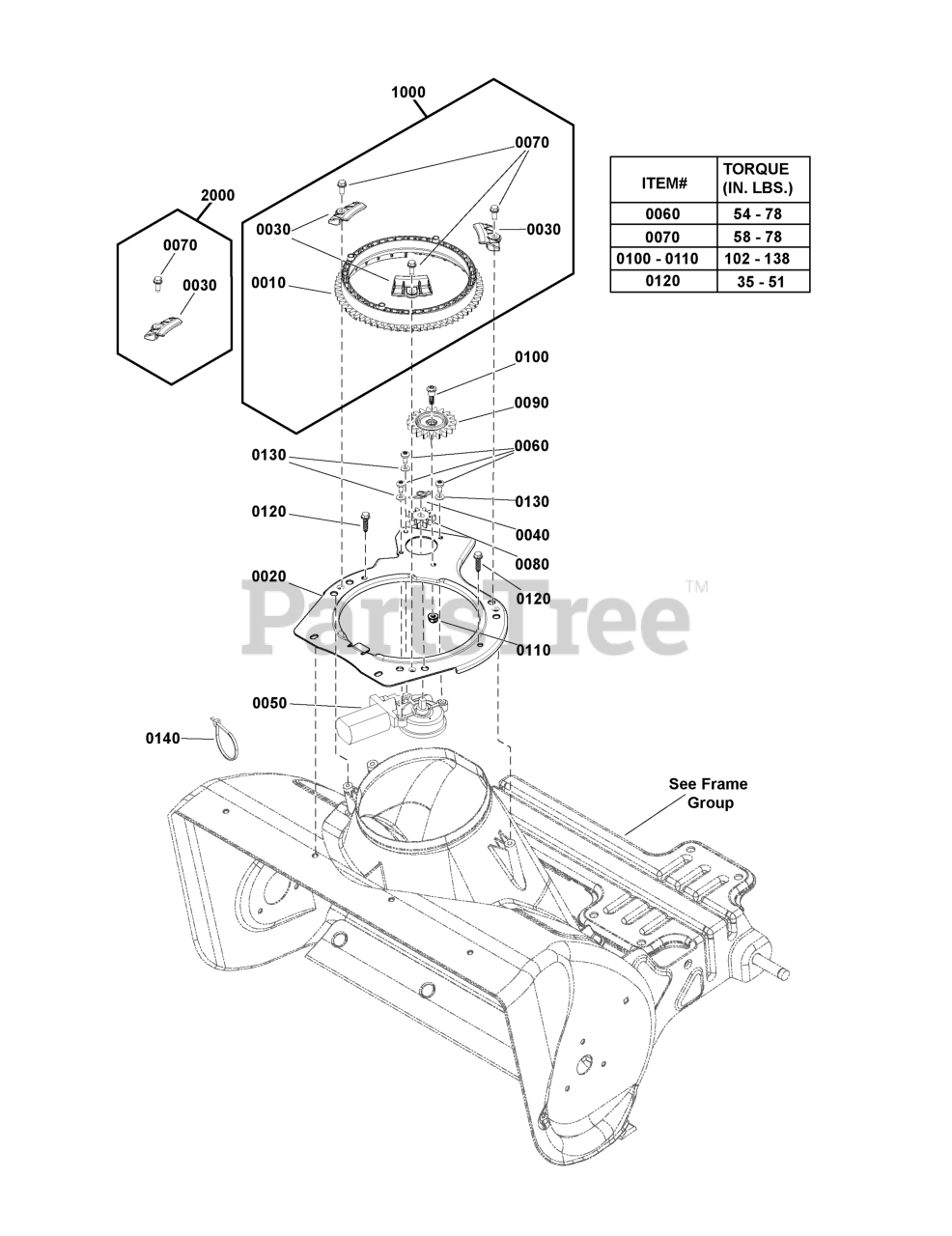

Chute Rotation Group - Electric Parts Diagram

  • Title

0010

Simplicity 706509

GEAR

$38.99

$

Usually ships in 2-12 days

0

0020

PLATE, Chute Rotation Electric

Note: ( Not a serviceable part )

$

$

Not available

0030

Simplicity 706511

RETAINER, CHUTE GEAR

$5.49

$

Usually ships in 2-12 days

0

0040

Simplicity 7091594SM

PIN, Cotter, 1/2

$2.99

$

In Stock, only 2 left!

0

0050

Simplicity 708703

MOTOR, Chute Rotation

$86.99

$

In Stock, Qty 7

0

0060

Simplicity 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 13

0

0070

Simplicity 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0080

Simplicity 84006454

GEAR, 10T

$24.99

$

Usually ships in 2-12 days

0

0090

Simplicity 84006455

GEAR, 19T

$25.99

$

Usually ships in 2-12 days

0

0100

Simplicity 706514

SCREW, Shoulder, Button Torx Washer Head, 1/4-20 x 1

$7.49

$

In Stock, only 2 left!

0

0110

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0120

Simplicity 706516

SCREW, Hi-Low, 1/4-15 x 1

$3.49

$

In Stock, only 2 left!

0

0130

Simplicity 7091552SM

WASHER, Flat, 7/32

$3.99

$

In Stock, Qty 14

0

0140

Simplicity 7024649YP

WIRE TIE,11 Inch Standard Black Nylon

$5.49

$

Usually ships in 2-12 days

0

1000

Simplicity 709922

KIT, CHUTE GEAR

Note: ( Incl. Ref. Nos. 0010, 0030 & 0070 )

$50.99

$

In Stock, only 4 left!

0

2000

Simplicity 709923

KIT, CHUTE RETAINER

Note: ( Incl. Ref. Nos. 0030 & 0070 )

$10.99

$

Usually ships in 2-12 days

0
