1022 EE (1697294-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2020) Frame Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

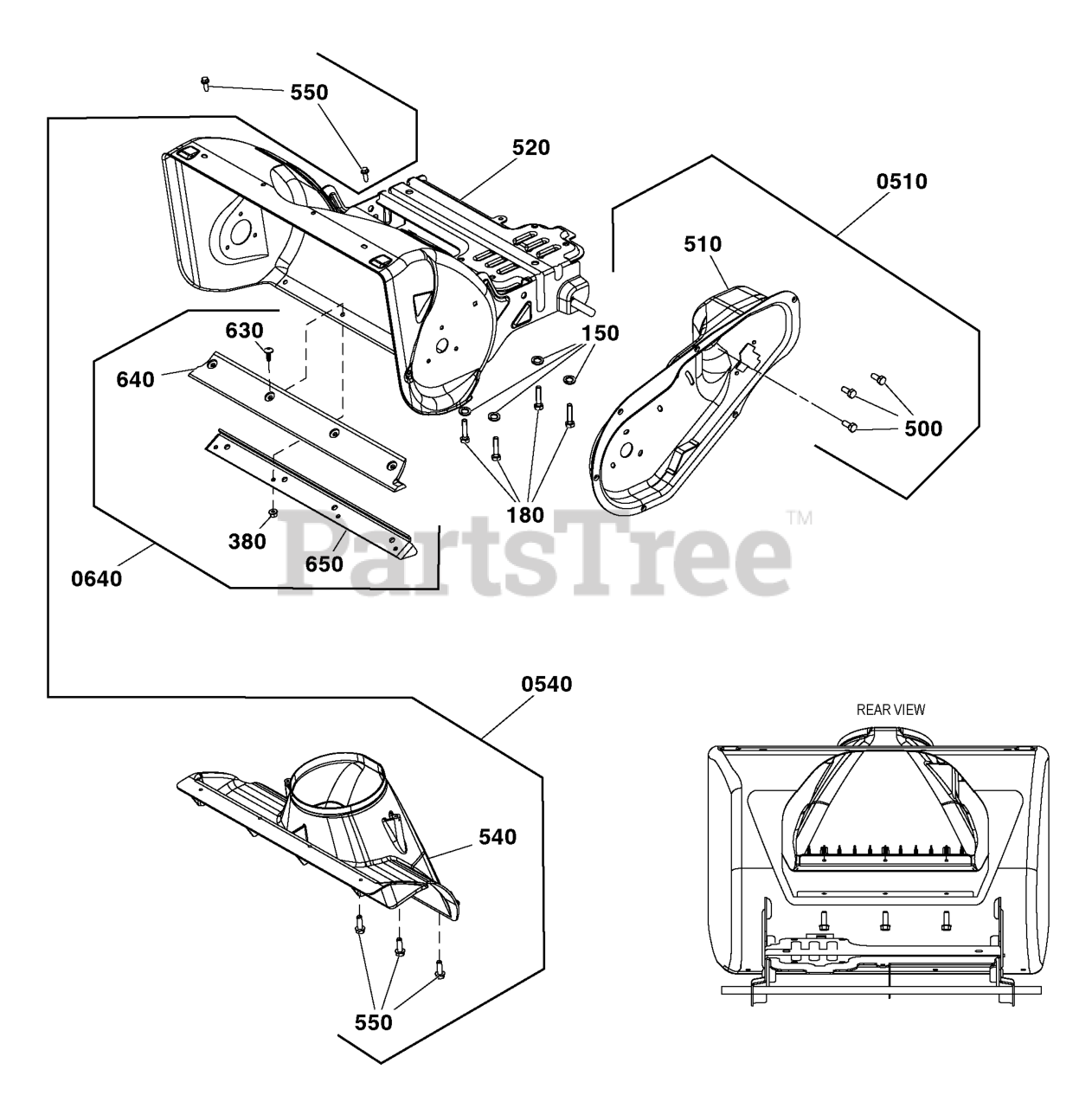

Frame Group Parts Diagram

  • Title

150

WASHER, M10, Split Lock

$

$

Not available

180

Briggs & Stratton 75246GS

SCREW-HEX WSHR HD TAPTT 3/8-16X1.250, ZC

$3.99

$

Usually ships in 2-12 days

0

0510

Briggs & Stratton 709866

KIT, DRIVE HOUSING

Note: (Incl. Ref. Nos. 500, 510)

$69.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 1752876YP

CAPSCREW, Hex Head, 5/16-24 x 5/8

$3.99

$

In Stock, only 2 left!

0

510

HOUSING, Drive

$

$

Not available

520

HOUSING, Auger

Note: ( Not a serviceable part )

$

$

Not available

0540

Briggs & Stratton 84004738

KIT, CHIMNEY

Note: (Incl. Ref. Nos. 540, 550)

$137.99

$

Usually ships in 2-12 days

0

540

CHIMNEY

$

$

Not available

550

Briggs & Stratton 7091081SM

SCREW, 1/4-15 X .750

$4.49

$

In Stock, Qty 12

0

0640

Briggs & Stratton 1687805

KIT, Scraper Bar

Note: (Incl. Ref. Nos. 380, 630, 640, 650)

$97.99

$

In Stock, only 1 left!

0

380

Briggs & Stratton 1752935YP

NUT, 1/4-20, Nylon Hex, CZ

$3.49

$

In Stock, Qty 9

0

630

Briggs & Stratton 5025299X5YP

SCREW, 1/4-20 X 5/8

$4.99

$

In Stock, only 1 left!

0

640

BAR, Scraper, Robolon

$

$

Not available

650

Briggs & Stratton 1752660AYP

SUPPORT, Scraper Blade

$28.99

$

In Stock, only 4 left!

0
