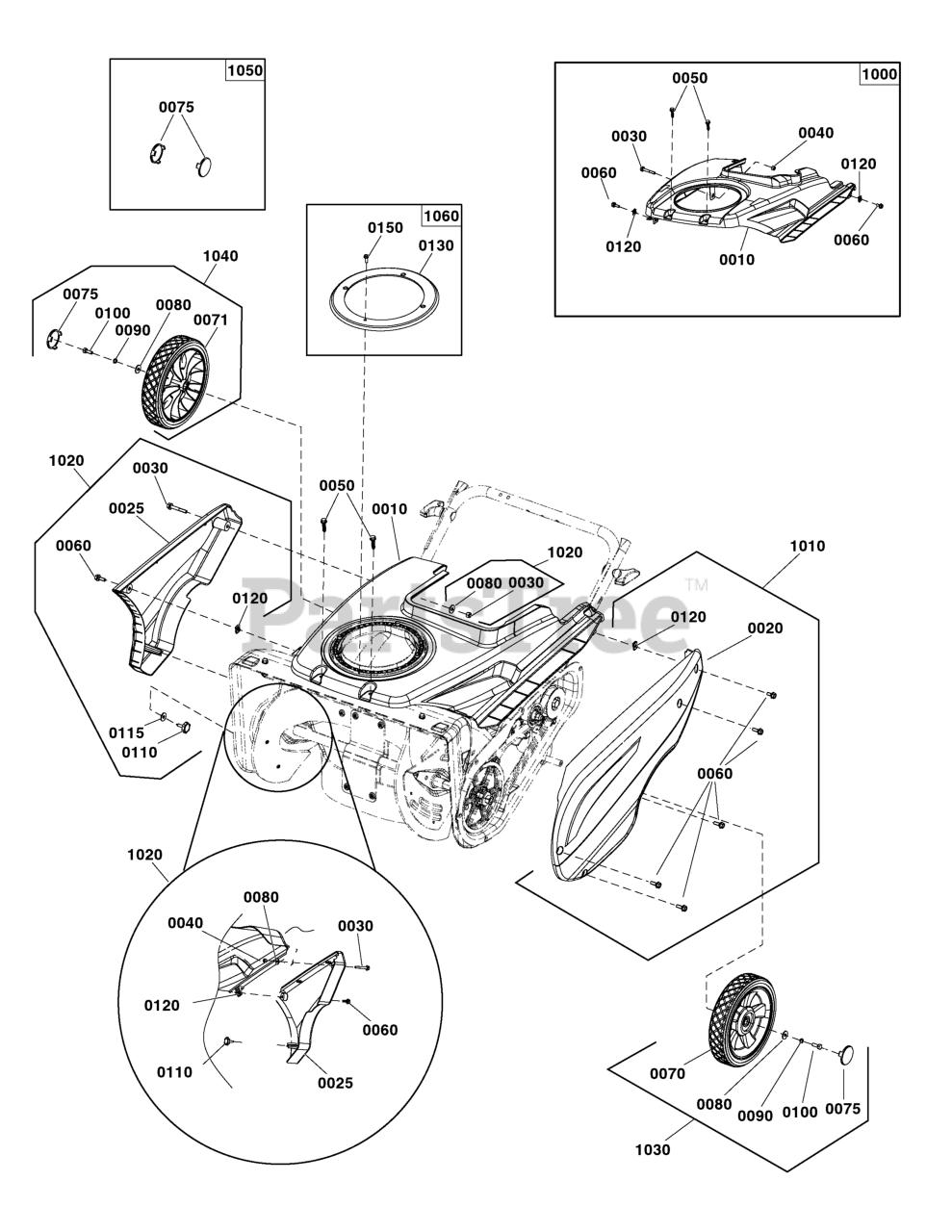

1022 EE (1697294-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2020) Cover & Wheel Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

Cover & Wheel Group Parts Diagram

  • Title

1000

Briggs & Stratton 709891

KIT, TOP COVER

Note: (Incl. Ref. Nos. 0010, 0030, 0040, 0050, 0060 & 0120)

$63.99

$

Usually ships in 2-12 days

0

0010

COVER, Top, Continuum Charcoal

$

$

Not available

0030

SCREW, M6x40, Hex Flange Head

$

$

Not available

0040

NUT, M6, Lock

$

$

Not available

0050

Briggs & Stratton 7091081SM

SCREW, 1/4-15 X .750

$4.49

$

In Stock, Qty 12

0

0060

SCREW, M6x16, Hex Washer Head

$

$

Not available

0120

NUT, M6, CLIP

$

$

Not available

1010

Briggs & Stratton 709896

KIT, DRIVE CASE COVER

Note: (Incl. Ref. Nos. 0020, 0060 & 0120)

$60.99

$

Usually ships in 2-12 days

0

0020

COVER, Drive Case, Black

$

$

Not available

0060

SCREW, M6x16, Hex Washer Head

$

$

Not available

0120

NUT, M6, CLIP

$

$

Not available

1020

Briggs & Stratton 709916

KIT, SIDE COVER, RIGHT

Note: (Incl. Ref. Nos. 0025, 0030, 0040, 0060, 0080,0110 & 0120)

$64.99

$

Usually ships in 2-12 days

0

0025

COVER, Side, Continuum Charcoal

$

$

Not available

0030

SCREW, M6x40, Hex Flange Head

$

$

Not available

0040

NUT, M6, Lock

$

$

Not available

0060

SCREW, M6x16, Hex Washer Head

$

$

Not available

0080

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0110

SCREW, M5x20, Knob, Self-Tapping

$

$

Not available

0115

WASHER, Flat, 5X10X1

$

$

Not available

0120

NUT, M6, CLIP

$

$

Not available

1030

Briggs & Stratton 709885

KIT, WHEEL, LEFT, PEWTER

Note: (Incl. Ref. Nos. 0070, 0075, 0080, 0090, 0100)

$71.99

$

Usually ships in 2-12 days

0

0070

WHEEL, Left, 1.75 X 8, Pewter

$

$

Not available

0075

COVER, End, Wheel, Pewter

$

$

Not available

0080

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0090

WASHER, M6, Split Lock, MC

$

$

Not available

0100

BOLT, M6x16, Hex Head

$

$

Not available

1040

Briggs & Stratton 770059

KIT, WHEEL, RIGHT, PEWTER

Note: (Incl. Ref. Nos. 0071, 0075, 0080, 0090, 0100)

$62.99

$

In Stock, only 1 left!

0

0071

WHEEL, Right, 1.75 X 8, Pewter

$

$

Not available

0075

COVER, End, Wheel, Pewter

$

$

Not available

0080

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0090

WASHER, M6, Split Lock, MC

$

$

Not available

0100

BOLT, M6x16, Hex Head

$

$

Not available

1050

Briggs & Stratton 709883

KIT, Wheel Cover, Pewter

Note: (Incl. Ref. Nos. 0075)

$14.99

$

In Stock, only 1 left!

0

0075

COVER, End, Wheel, Pewter

$

$

Not available

1060

Briggs & Stratton 709887

KIT, CHUTE MOISTURE COVER

Note: (Incl. Ref. Nos. 0130 & 0150)

$23.99

$

Usually ships in 2-12 days

0

0130

COVER, Chute Moisture

$

$

Not available

0150

Briggs & Stratton 316042MA

SCREW,10-HLX0.62 HEXW

$4.49

$

Usually ships in 2-12 days

0
