1022 EE (1696950-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2018) Auger Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

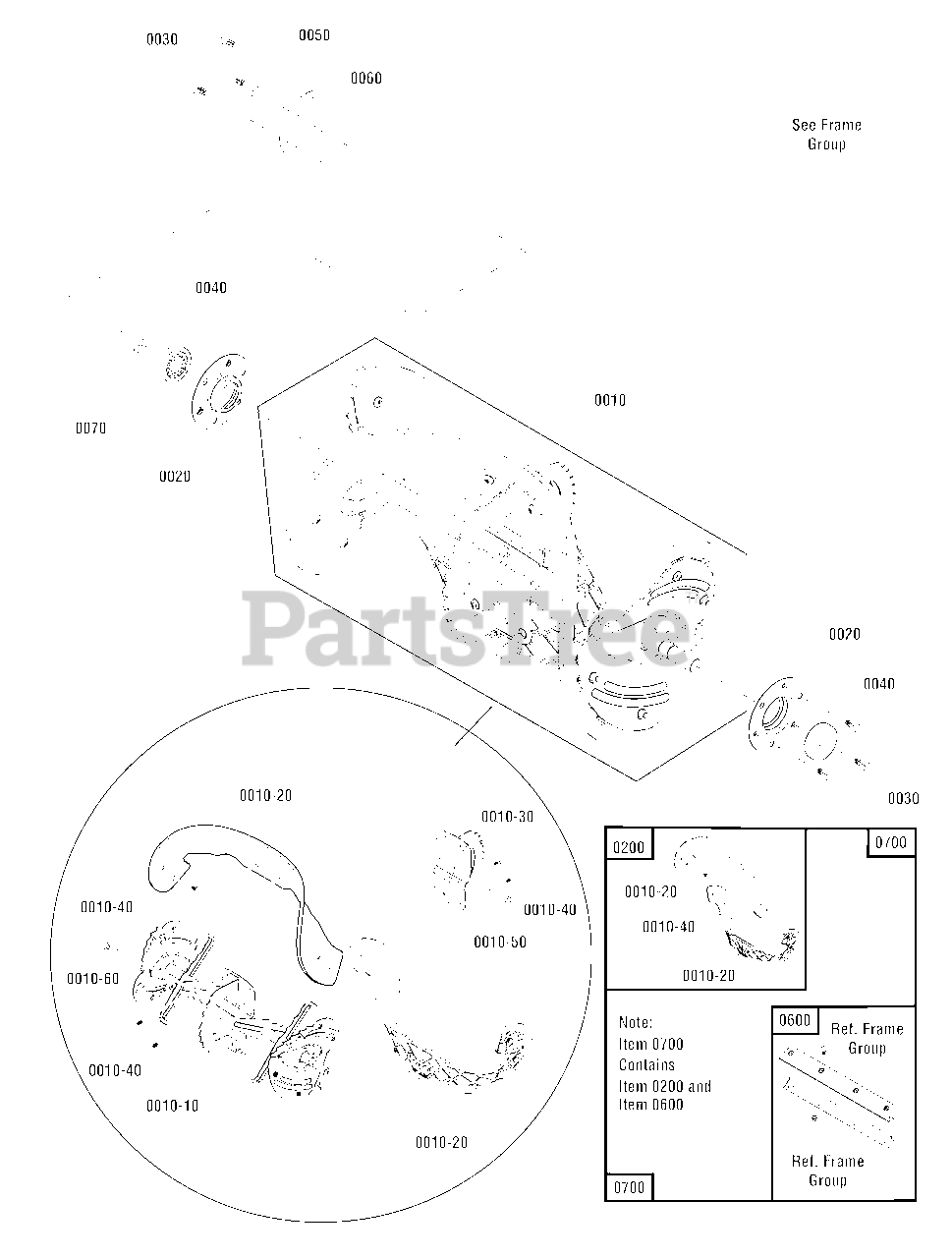

Auger Group Parts Diagram

  • Title

0010

Briggs & Stratton 1687814

AUGER ASSEMBLY, Complete

Note: (Incl. Ref. Nos. 0010-10, 0010-20, 0010-30, 0010-40, 0010-50 & 0010-60)

$170.99

$

In Stock, Qty 5

0

0010-10

* AUGER SHAFT ASSEMBLY

$

$

Not available

0010-20

** FLIGHT, Auger

Note: (Included with Ref. No. 0200)

$

$

Not available

0010-30

* PLATE, Auger, Center

$

$

Not available

0010-40

Briggs & Stratton 770003

SCREW, Pan Head Torx, 1/4-20 x 3/4

Note: (Included with Ref. No. 0200)

$3.99

$

In Stock, Qty 20+

0

0010-50

Briggs & Stratton 703232

NUT, Nylock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0010-60

Briggs & Stratton 703234

CAPSCREW, Hex Head, 1/4-20 X 1 1/2, G5

$4.49

$

In Stock, only 4 left!

0

0020

Briggs & Stratton 1739228YP

RETAINER, Bearing

$6.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 704130

SCREW, Hex Washer Head, Trilob, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 7

0

0040

Briggs & Stratton 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

In Stock, Qty 20+

0

0050

Briggs & Stratton 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 9

0

0060

Briggs & Stratton 1739229AYP

CAP, BEARING

$7.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 703118

WASHER, Flat, 7/8 x 21/64

$3.49

$

In Stock, Qty 11

0

0200

Briggs & Stratton 1687489YP

KIT, Auger Flight
(Superseded to 1687806)

Note: (Incl. Ref. Nos. 0030 & 0010-40)

$121.99

$

In Stock, Qty 20+

0

0600

Briggs & Stratton 1687805

KIT, Scraper Bar

Note: (Reference Frame group)

$97.99

$

In Stock, only 1 left!

0

0700

Briggs & Stratton 1687806

KIT, Scraper Bar & Flight

Note: (Incl. Ref. Nos. 0200 & 0600)

$121.99

$

In Stock, Qty 20+

0
