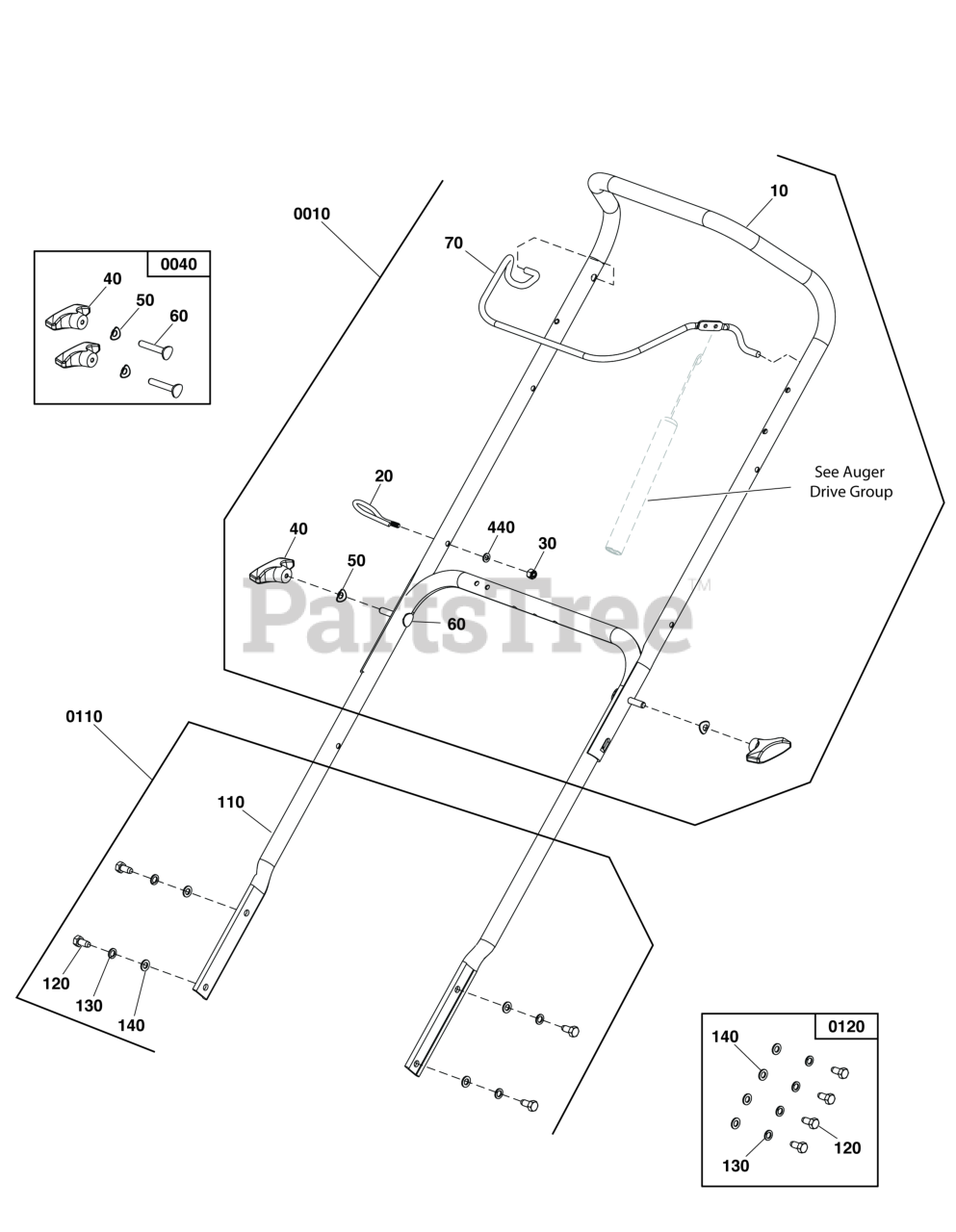

1022 E (1697142-01) - Simplicity 22" Snow Thrower, 9.5hp Handles & Controls Group Parts Diagram

22" Snow Thrower, 9.5hp

Handles & Controls Group Parts Diagram

  • Title

0010

Simplicity 709860

KIT, UPPER HANDLE

Note: (Incl. Ref. Nos. 10, 20, 30, 40, 50, 60, 70, 440)

$95.99

$

Usually ships in 2-12 days

0

10

HANDLEBAR, Upper SS

$

$

Not available

20

Simplicity 84002745

GUIDE, ROPE

$5.49

$

Usually ships in 2-12 days

0

30

NUT, M6, Lock

$

$

Not available

40

KNOB, Wing, M8

$

$

Not available

50

WASHER, M8, Curved

$

$

Not available

60

BOLT, M8x40, Carriage, Curved Head

$

$

Not available

70

Simplicity 709858

BAIL, Engine Stop

$47.99

$

In Stock, only 1 left!

0

440

WASHER, 6x12x.7, Flat

$

$

Not available

0040

Simplicity 709859

KIT, UPPER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 40, 50, 60)

$18.99

$

In Stock, only 1 left!

0

40

KNOB, Wing, M8

$

$

Not available

50

WASHER, M8, Curved

$

$

Not available

60

BOLT, M8x40, Carriage, Curved Head

$

$

Not available

0110

Simplicity 709862

KIT, LOWER HANDLE

Note: (Incl. Ref. Nos. 110, 120, 130, 140)

$64.99

$

Usually ships in 2-12 days

0

110

HANDLE, Lower

$

$

Not available

120

SCREW, Hex Head, M8 X 20

$

$

Not available

130

WASHER, Lock, M8

$

$

Not available

140

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0120

Simplicity 709861

KIT, LOWER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 120, 130, 140)

$22.99

$

Usually ships in 2-12 days

0

120

SCREW, Hex Head, M8 X 20

$

$

Not available

130

WASHER, Lock, M8

$

$

Not available

140

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available
