1022 E (1696720-01) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2020) Handles & Controls Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

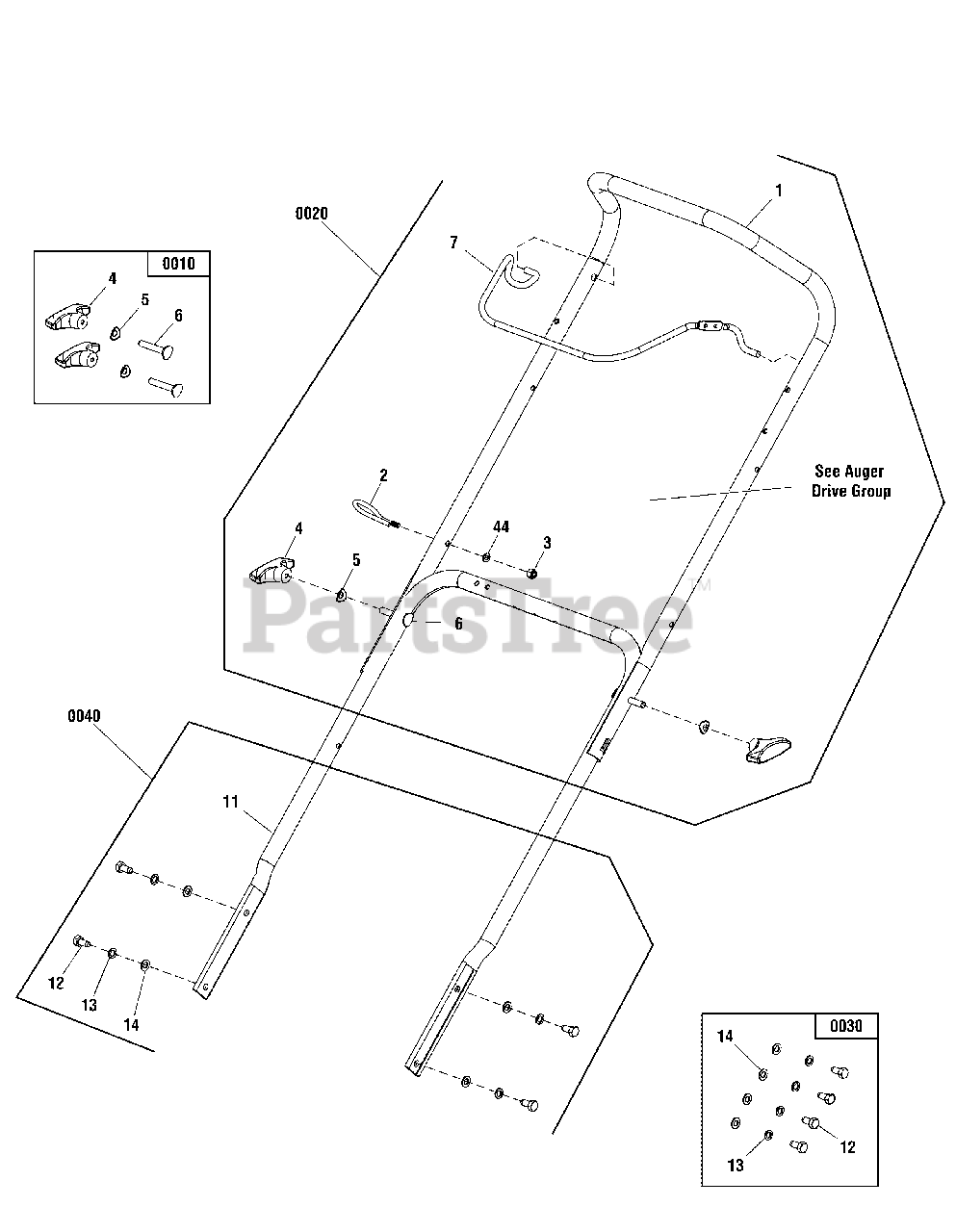

Handles & Controls Group Parts Diagram

  • Title

0010

Briggs & Stratton 709859

KIT, UPPER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 4, 5, 6)

$18.99

$

In Stock, only 1 left!

0

4

KNOB, Wing, M8

$

$

Not available

5

WASHER, M8, Curved

$

$

Not available

6

BOLT, M8x40, Carriage, Curved Head

$

$

Not available

0020

Briggs & Stratton 709860

KIT, UPPER HANDLE

Note: (Incl. Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 44)

$95.99

$

Usually ships in 2-12 days

0

1

HANDLEBAR, Upper SS

$

$

Not available

2

GUIDE, Rope

$

$

Not available

3

NUT, M6, Lock

$

$

Not available

4

KNOB, Wing, M8

$

$

Not available

5

WASHER, M8, Curved

$

$

Not available

6

BOLT, M8x40, Carriage, Curved Head

$

$

Not available

7

Briggs & Stratton 709858

BAIL, Engine Stop

$47.99

$

In Stock, only 1 left!

0

44

WASHER, 6x12x.7, Flat

$

$

Not available

0030

Briggs & Stratton 709861

KIT, LOWER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 12, 13, 14)

$22.99

$

Usually ships in 2-12 days

0

12

SCREW, Hex Head, M8 X 20

$

$

Not available

13

WASHER, Lock, M8

$

$

Not available

14

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0040

Briggs & Stratton 709862

KIT, LOWER HANDLE

Note: (Incl. Ref. Nos. 11, 12, 13, 14)

$64.99

$

Usually ships in 2-12 days

0

11

HANDLE, Lower

$

$

Not available

12

SCREW, Hex Head, M8 X 20

$

$

Not available

13

WASHER, Lock, M8

$

$

Not available

14

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available
