10211 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

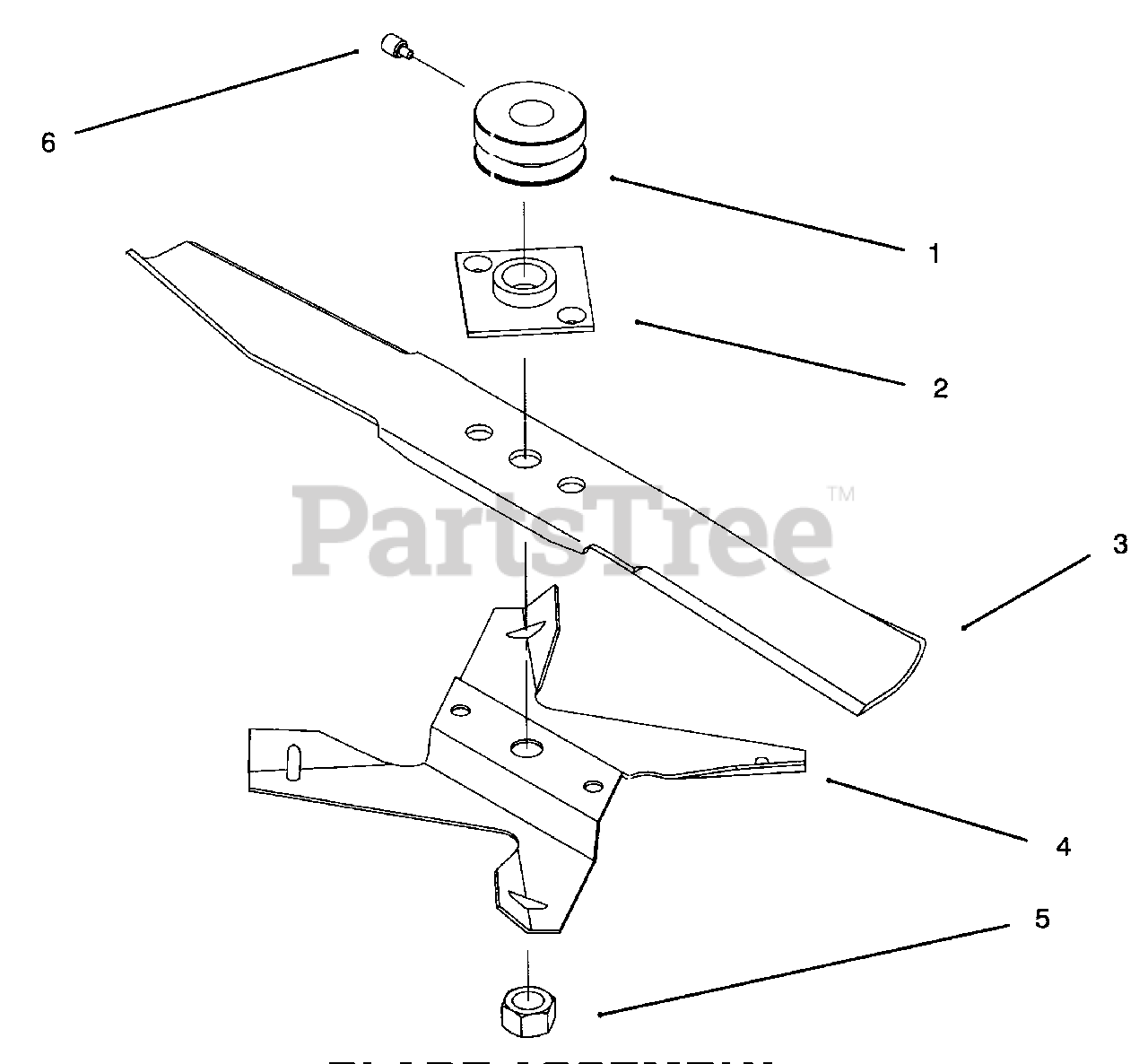

BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-6542

Pulley-Engine (Model No. 10312 Only)

$93.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 677525

Plate & Collar

$51.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$33.99

$

In Stock, Qty 18

0

4

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$37.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

6

Lawn-Boy 613227

Screw-Set (Model No. 10312 Only)
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0
