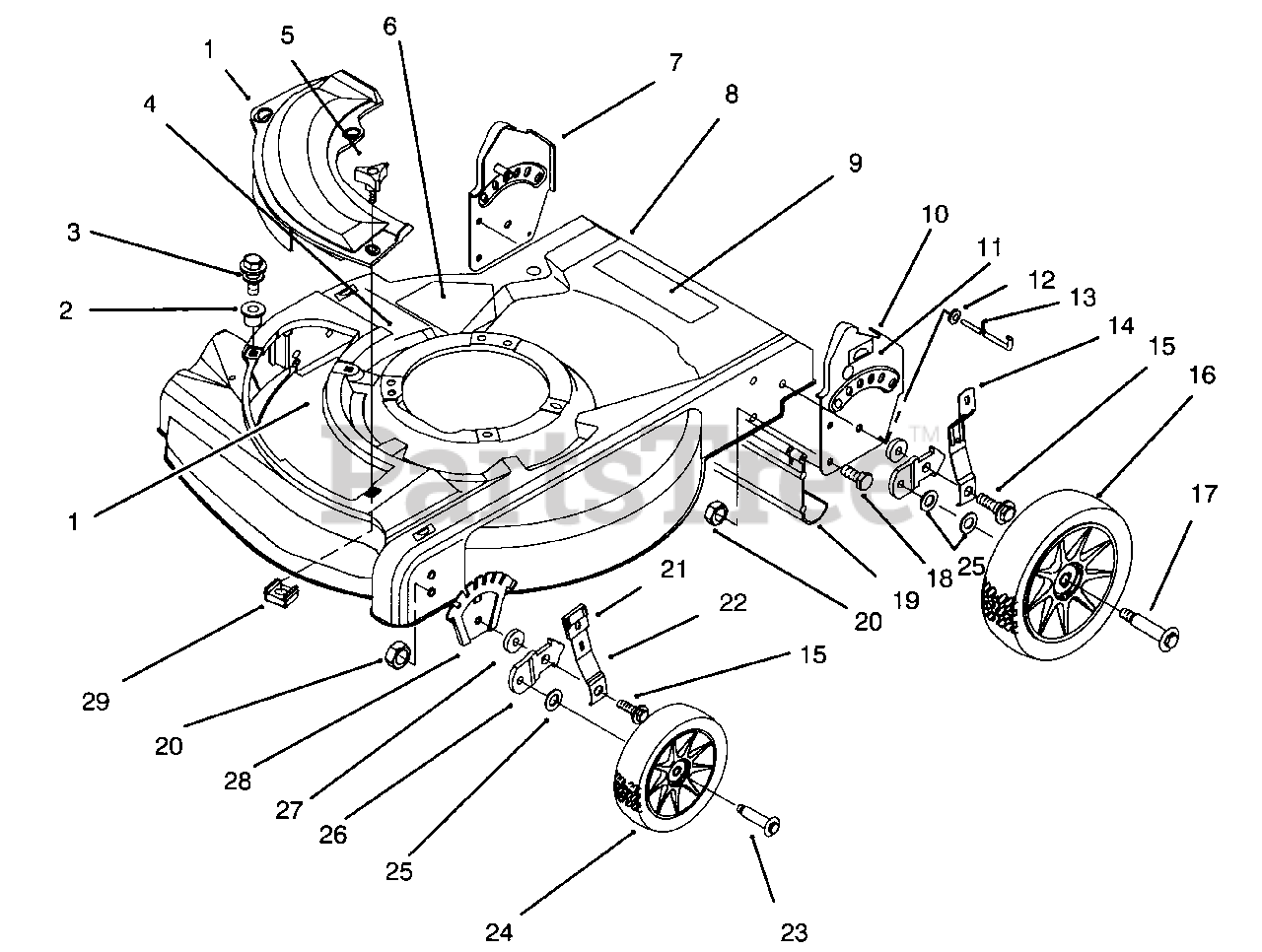

10210 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) DECK & WHEEL ASSEMBLY (HAND PUSH) Parts Diagram

Silver Series Walk-Behind Mower

DECK & WHEEL ASSEMBLY (HAND PUSH) Parts Diagram

  • Title
1

Lawn-Boy 614545

Plate-Cover, Mulch
(Superseded to 92-8630)

$

$

Not available

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

Note: Not Illustrated

$36.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 604604

Grommet-Plastic
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 614677

Screw-Thread Forming

$4.49

$

In Stock, Qty 12

0

4

Lawn-Boy 92-1097

Decal-Danger

$

$

Not available

5

Lawn-Boy 614682

Knob
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

6

Lawn-Boy 39-5770

Decal-Danger

$8.99

$

In Stock, Qty 8

0

7

Lawn-Boy 684745

Handle Bracket Ass'y-RH

$

$

Not available

8

Lawn-Boy 14-8219

Housing & Baffle Ass'y (Incl. Ref. #4, 6, & 11)
(Superseded to 98-4471)

$

$

Not available

9

Lawn-Boy 92-4981

Decal-Danger

$

$

Not available

10

Lawn-Boy 684746

Handle Bracket Ass'y-LH

$

$

Not available

11

Lawn-Boy 92-2915

Decal-H.O.C. L.H.

$6.49

$

Usually ships in 3-6 days

0

Lawn-Boy 92-2914

Decal-H.O.C. R.H.

Note: Not Illustrated

$

$

Not available

12

$

$

Not available

13

Lawn-Boy 92-1649

Rod-Trailing Shield

$

$

Not available

14

Lawn-Boy 92-1005

Spring Arm Assembly

$21.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 684777

Wheel Ass'y-8"

$59.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 614650

Bolt-Wheel

$4.49

$

In Stock, Qty 20+

0

18

$1.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 92-1038

Shield-Trailing

$

$

Not available

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 92-1008

Knob-H.O.C. Lever

$14.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 614687

Arm-Spring, Front

$21.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 92-1099

Bolt-Wheel

$8.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 684776

Wheel Ass'y-6"

$37.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 40-1940

Washer-Wheel Bolt

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 614637

Bracket-H.O.C.
(Superseded to 95-7403-03)

$

$

Not available

27

$

$

Not available

28

Lawn-Boy 92-4881

Plate-H.O.C. Front
(Superseded to 92-4881-03)

$29.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 613765

Nut-Cage

$9.99

$

In Stock, Qty 7

0
