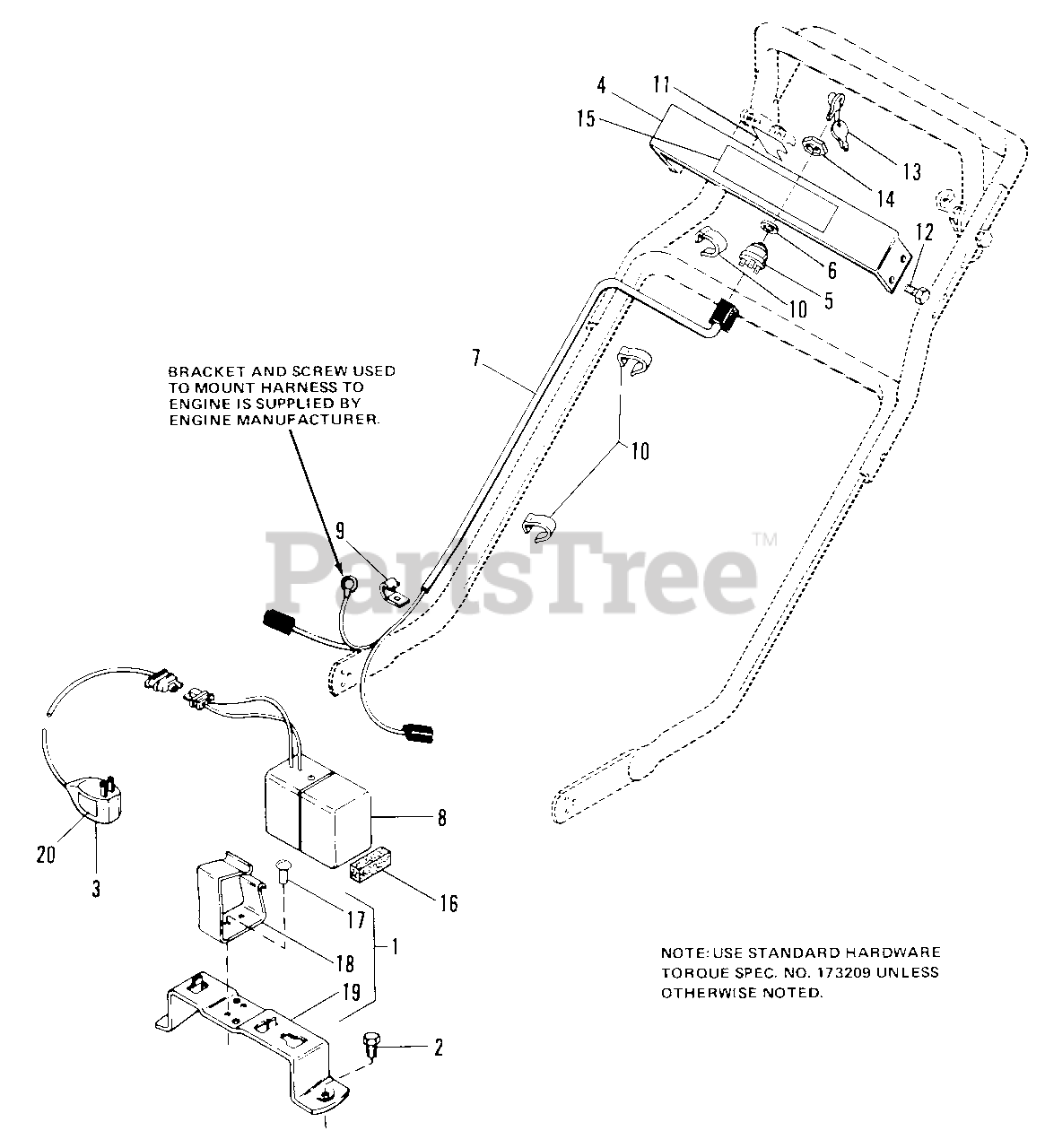

1021 (1690279) - Simplicity 21" Walk-Behind Mower Electrical Group Parts Diagram

21" Walk-Behind Mower

Electrical Group Parts Diagram

  • Title

1

Simplicity 170014

SUPPORT ASSY, Battery

$

$

Not available

2

Simplicity 2829000

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

3

Simplicity 170046

CHARGER, Battery

$

$

Not available

4

Simplicity 1657544

SWITCH, Mfg. Panel

$

$

Not available

5

Simplicity 2122201SM

KEY, Switch

$

$

Not available

6

Simplicity 928636

LOCKWASHER, Internal

$

$

Not available

7

Simplicity 1657558

HARNESS ASSY

$

$

Not available

8

Simplicity 1656590

BATTERY

$

$

Not available

9

Simplicity 108811

CLAMP, Cable

$

$

Not available

10

Simplicity 2108812

CLIP, Harness

$

$

Not available

11

Simplicity 1608527

DECAL, Ignition

$

$

Not available

12

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

13

Simplicity 1717163SM

KEY & RING ASSY (Set of Two)

$8.99

$

In Stock, Qty 20+

0

14

Simplicity 122235

NUT, Hex, Special

$

$

Not available

15

Simplicity 1657492

DECAL, Simplicity Electric Start

$

$

Not available

16

Simplicity 1656657

PAD

$

$

Not available

17

Simplicity 2828707SM

RIVET, Pop

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 170298

CLIP, Spring, Battery

$

$

Not available

19

Simplicity 170299

SUPPORT, Battery

$

$

Not available

20

Simplicity 1651724

DECAL, Caution

$

$

Not available
