1021 (1690277) - Simplicity 21" Walk-Behind Mower Engine, Housing & Shroud Group Parts Diagram

21" Walk-Behind Mower

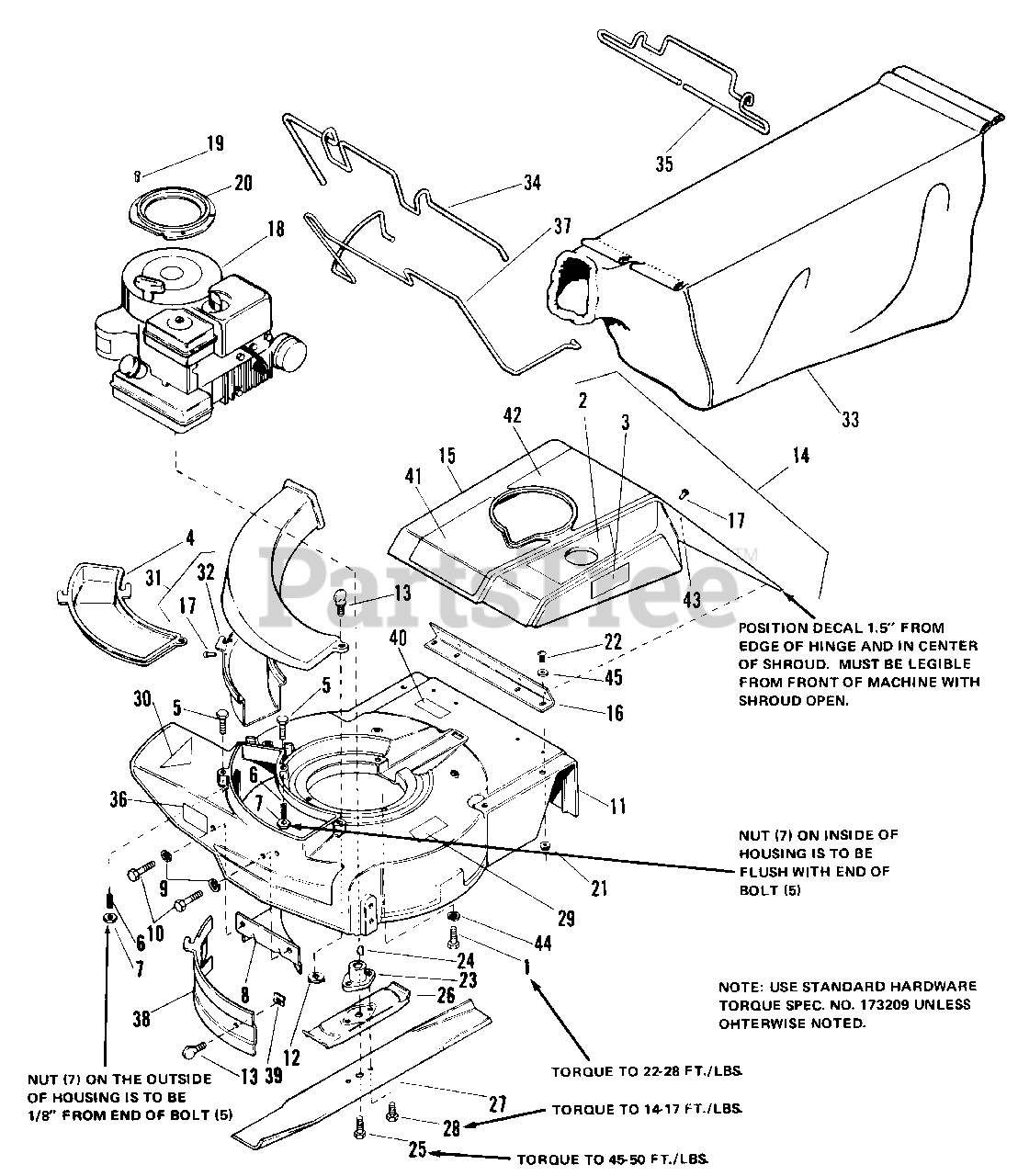

Engine, Housing & Shroud Group Parts Diagram

  • Title

1

Simplicity 2828635SM

SCREW, Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1657165

DECAL, Caution

$

$

Not available

3

Simplicity 1657164

DECAL, 1021

$

$

Not available

4

Simplicity 171645

PLATE, Cover

$

$

Not available

5

Simplicity 2172429

SCREW, Special

$

$

Not available

6

Simplicity 171651

SPRING

$

$

Not available

7

Simplicity 2823358

NUT, Hex, Full, Lock, 1/4-20

$

$

Not available

8

Simplicity 175703

GUARD ASSY, Stone

$

$

Not available

9

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

10

Simplicity 2808295

CAPSCREW, Hex, 1/4-20 x 1/2

$

$

Not available

11

Simplicity 176069

HOUSING, 21"

$

$

Not available

12

Simplicity 108699

NUT, Speed, Special, 1/4-20

$

$

Not available

13

Simplicity 2828694

SCREW, Wing, 1/4-20 x 5/8

$

$

Not available

14

Simplicity 108760

SHROUD ASSY (Inc. Ref. Nos. 15, 16, 17)

$

$

Not available

15

SHROUD

$

$

Not available

16

Simplicity 108763

HINGE

$

$

Not available

17

Simplicity 2828706

RIVET, 3/16 x 5/16

$

$

Not available

18

ENGINE, 3.5 HP Briggs & Stratton.

$

$

Not available

19

Simplicity 928708

RIVET, Pop, 3/32 x .337

$

$

Not available

20

Simplicity 108777

SUPPORT, Ring

$

$

Not available

21

Simplicity 2828919

NUT & WASHER ASSY, No. 10-32

$

$

Not available

22

Simplicity 2830531

CAPSCREW, Hex Hd., No. 10-32

$

$

Not available

23

Simplicity 108716

ADAPTOR, Blade

$

$

Not available

24

Simplicity 2810224SM

KEY, Woodruff, No. 6

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 2822128

CAPSCREW, Hex, 3/8-24 x 1-1/2

$

$

Not available

26

Simplicity 108704

STIFFNER, Blade

$

$

Not available

27

Simplicity 108700

BLADE, 21"

$

$

Not available

28

Simplicity 928697

SCREW, 5/16-18 x 1

$

$

Not available

29

Simplicity 1608220

DECAL, Instructions

$

$

Not available

30

DECAL, OPEI

$

$

Not available

31

Simplicity 1657256

CHUTE ASSY

$

$

Not available

32

Simplicity 171643

DEFLECTOR

$

$

Not available

33

Simplicity 1657134

GRASS BAG

$

$

Not available

34

Simplicity 1657414

SUPPORT, Bag, Front

$

$

Not available

35

Simplicity 1657152

SUPPORT, Bag, Rear

$

$

Not available

36

Simplicity 170488

DECAL, Numerial, 21"

$

$

Not available

37

Simplicity 1657554

ROD, Support Bag

$

$

Not available

38

Simplicity 171644

BAFFLE

$

$

Not available

39

Simplicity 2828705

NUT, Speed, 1/4-20

$

$

Not available

40

I.D. PLATE

$

$

Not available

41

Simplicity 1657166

DECAL, Shroud

$

$

Not available

42

Simplicity 1657167

DECAL, Shroud

$

$

Not available

43

Simplicity 1657638

DECAL, Speed Control

$

$

Not available

44

Simplicity 2820427SM

LOCKWASHER, Ext. Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 2817380

WASHER, Plain, 3/16

$

$

Not available
