1021-0 - Generac MEGAFORCE 6,500 Watt Portable Generator Generator Parts Diagram

MEGAFORCE 6,500 Watt Portable Generator

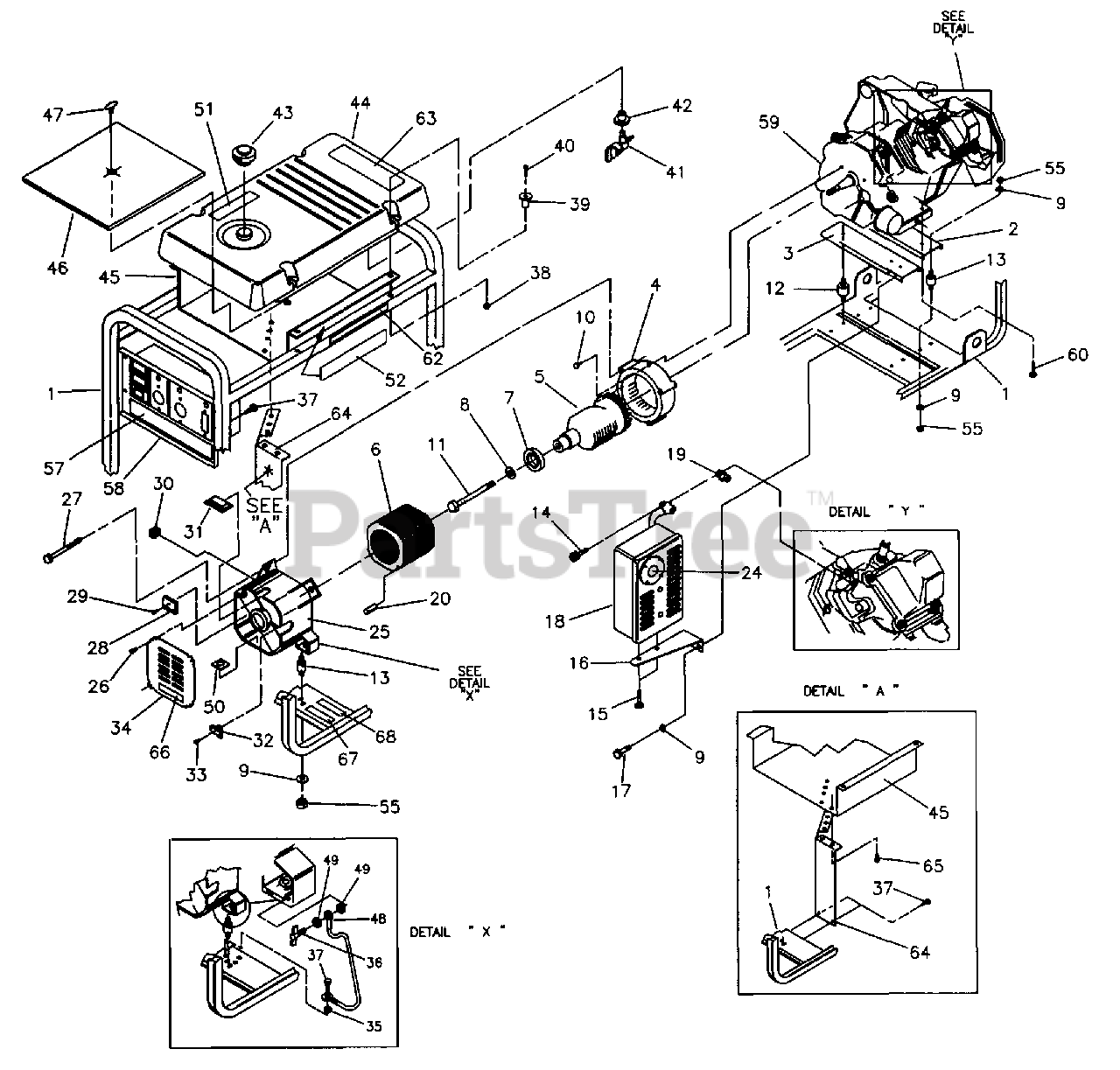

Generator Parts Diagram

  • Title

1

Briggs & Stratton 92432

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton 92531

SUPPORT, Engine

$

$

Currently unavailable

3

Briggs & Stratton 92731

SUPPORT, Engine & Muffler
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247

HOUSING, Engine Adapter
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 92679G

ASSEMBLY, Rotor
(Superseded to 92679GGS)

$617.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 92681G

ASSEMBLY, Stator
(Superseded to 92681AGS)

$633.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

WASHER, M8 Flat

$

$

Currently unavailable

9

Briggs & Stratton 22129

WASHER, M8 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

SCREW, 5/16-24 x 3/4 Mach.
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 25254

SCREW, 5/16-24 x 9-7/8"
(Superseded to 5025254)

$2.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609

MOUNT, Vibration
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857

MOUNT, Vibration
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 40976

SCREW, M8 - 1.25 x 20

$

$

Not available

15

Briggs & Stratton 66476

CAPSCREW, M6 - 1.0 x 12mm
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 92532

BRACKET, Muffler
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22142

SCREW, 5/16 - 18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 91153

MUFFLER
(Superseded to A7433GS)

$

$

Not available

19

Briggs & Stratton 90239

GASKET, Muffler
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 81917

PIN, 4 mm x 10 Roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 83083

SCREEN, Spark Arrest
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

25

Briggs & Stratton 66825C

CARRIER, Rear Bearing
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908

SCREW, M5-0.8 x 10 Taptite
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308B

BOLT, M6-1 x 165mm Stator
(Superseded to 86308BGS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

29

Briggs & Stratton 66849A

SCREW, M5-0.8 x 20 Taptite
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84132

ASSEMBLY, Power Regulator
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 66386

ASSEMBLY, Brush Holder
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 66849

SCREW, M5-0.8 x 16 Taptite
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

35

Briggs & Stratton 22769

WASHER, #10 Int. Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494

SCREW, M6-1.0 x 16 Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292

SCREW, #10 Self Drilling
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 77395

NUT, M6 Flange Lock
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465

GROMMET, Tank
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 78831B

HHMS, M6-1.0 x 60 (blk)
(Superseded to 78831BGS)

$

$

Not available

41

Briggs & Stratton 80270

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 94834

CAP, Fuel
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

44

Briggs & Stratton 93595

TANK, Fuel
(Superseded to 193500GS)

$

$

Not available

45

Briggs & Stratton 92039

SHIELD, Heat

$

$

Currently unavailable

46

Briggs & Stratton 92665

INSULATION, #2-1/4"
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000

CLIP, Insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

48

14353621

WIRE, Ground

$

$

Not available

49

Briggs & Stratton 26850

WASHER, M6 Shakeproof

$

$

Not available

50

Briggs & Stratton 57593

MOUNT, Cable Tie
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 94479

DECAL, Danger
(Superseded to 194984GS)

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton B1223

DECAL, Heat Shield

$

$

Not available

55

Briggs & Stratton 25244

NUT, 5/16-18 Hex
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton B1224

DECAL, Control Panel

$

$

Not available

58

Briggs & Stratton B1473

ASSEMBLY, Control Box
(Superseded to B1473GS)

$1001.99

$

Usually ships in 2-12 days

0

59

ENGINE, 13 h.p., EHF 00958

Note: (NSP)

$

$

Not available

60

Briggs & Stratton 22531

HHCS, 5/16-18 x 1-3/4
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93221

DECAL, Cradle

$

$

Not available

63

Briggs & Stratton 94480

DECAL, Start Instructions
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

64

Briggs & Stratton 96068

SHIELD, Heat

$

$

Currently unavailable

65

Briggs & Stratton 56893

CRIMPTITE, 10-24 x 1/2
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

66

Briggs & Stratton 25717

DECAL, CSA

$

$

Currently unavailable

67

Briggs & Stratton 74728

DECAL, Neutral ground
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 76247

DECAL, Neutral ground
(Superseded to 76247GS)

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B1479

Owner's Manual
(Superseded to B1479GS)

Note: (Accessory, not pictured)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

Outlet Extension Plug, 125 Volts, 30 Amp
(Superseded to 100523GS)

Note: (Accessory, not pictured)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438

Outlet Extension Plug, 125/250 Volts, 30 Amp
(Superseded to 43438GS)

Note: (Accessory, not pictured)

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787

Battery Charge Cable

Note: (Accessory, not pictured)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 72347

Spark Plug
(Superseded to 491055S)

Note: (Accessory, not pictured)

$4.99

$

In Stock, Qty 20+

0

Briggs & Stratton 84882

Spark Plug Wrench
(Superseded to 84882GS)

Note: (Accessory, not pictured)

$9.99

$

Usually ships in 2-12 days

0
