10202 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) DECK & WHEEL ASSEMBLY (MODEL NO. 10302 ONLY) Parts Diagram

Silver Series Walk-Behind Mower

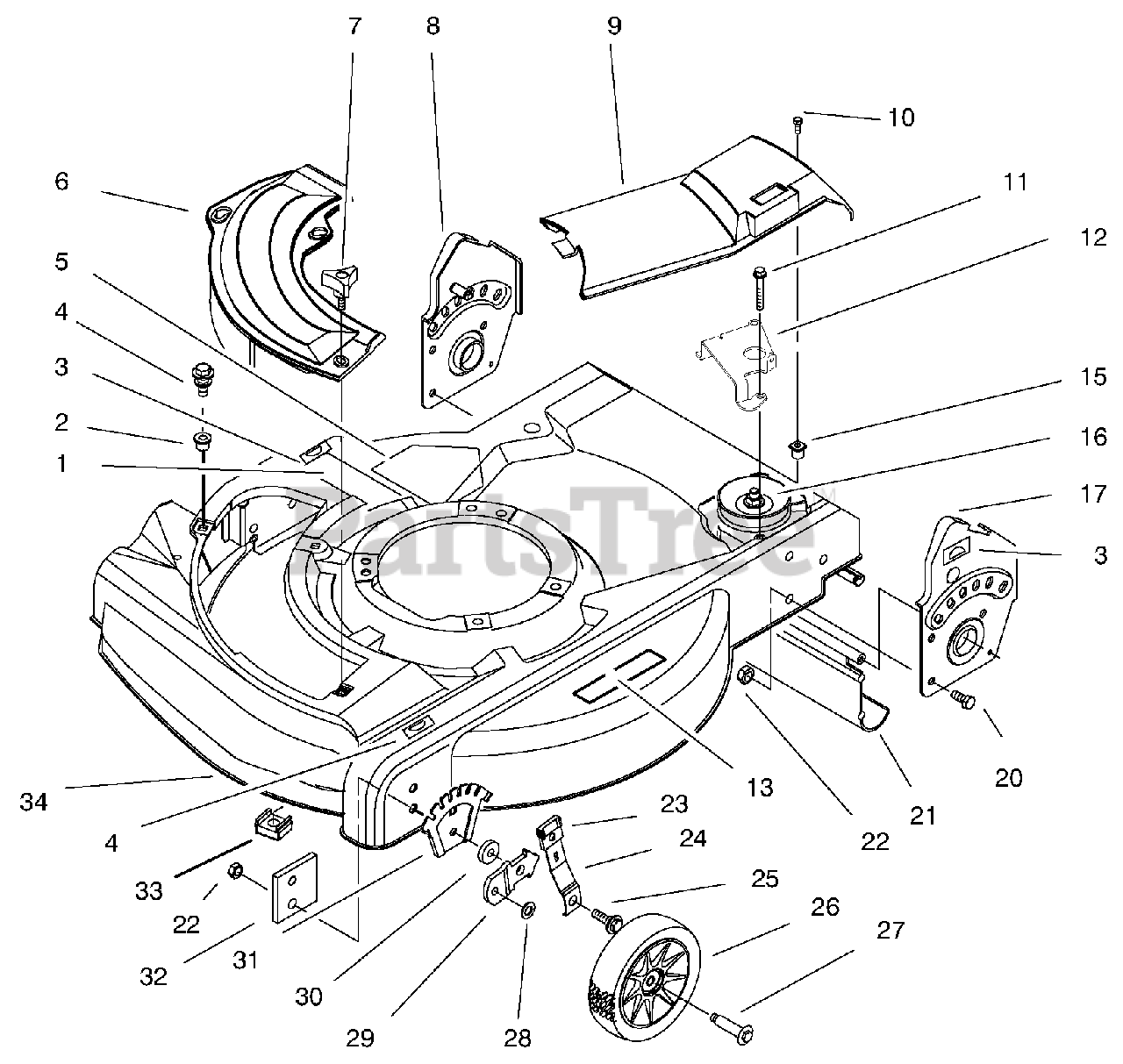

DECK & WHEEL ASSEMBLY (MODEL NO. 10302 ONLY) Parts Diagram

  • Title
1

Lawn-Boy 92-1097

Decal-Danger

$

$

Not available

2

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 14

0

3

Lawn-Boy 92-2915

Decal-H. O. C. L.H.

$5.49

$

Usually ships in 3-6 days

0

Lawn-Boy 92-2914

Decal-H. O. C. R.H.

Note: Not Illustrated

$

$

Not available

4

Lawn-Boy 614677

Screw-Thread Forming

$3.99

$

In Stock, Qty 16

0

5

Lawn-Boy 39-5770

Decal-Danger

$7.99

$

In Stock, Qty 8

0

6

Lawn-Boy 92-8630

Plate-Cover, Mulch

$

$

Not available

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

Note: Not Illustrated

$30.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 614682

Knob
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 18

0

8

Lawn-Boy 92-7723

Handle Bracket Ass'y-RH
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 614671

Cover-Drive
(Superseded to 92-8649)

$

$

Not available

10

$1.99

$

In Stock, only 4 left!

0

11

Lawn-Boy 49-2040

Screw-Thread Forming

$2.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 92-7728

Guide-Transmission
(Superseded to 92-7728-03)

$7.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 93-7250

Decal-Warning

$14.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 605120

Grommet-Shroud Mtg.

$3.99

$

In Stock, Qty 9

0

16

Lawn-Boy 92-7735

Gear Case Ass'y
(Superseded to 104-7671)

$

$

Not available

17

Lawn-Boy 92-7724

Handle Bracket Ass'y-L.H.
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 322-3

Screw-Hex. Hd.

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 92-8647

Shield-Trailing

$35.99

$

In Stock, only 1 left!

0

$2.49

$

In Stock, Qty 16

0

23

Lawn-Boy 92-1008

Knob-H. O. C.

$12.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 614687

Arm-Spring

$21.99

$

In Stock, only 3 left!

0

25

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 6

0

26

Lawn-Boy 684776

Wheel Assembly-6"

$33.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 92-1099

Bolt-Wheel

$7.49

$

In Stock, Qty 20+

0

28

$2.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 614637

Bracket-H. O. C.
(Superseded to 95-7403-03)

$

$

Not available

30

$8.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 92-4881

Plate H. O. C.
(Superseded to 92-4881-03)

$25.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 613765

Nut-Cage

$8.49

$

In Stock, Qty 10

0

34

Lawn-Boy 16-4369

Housing & Baffle Ass'y (Incl. Ref. # 1-5, & 13)
(Superseded to 98-4477)

$293.99

$

Usually ships in 3-6 days

0
