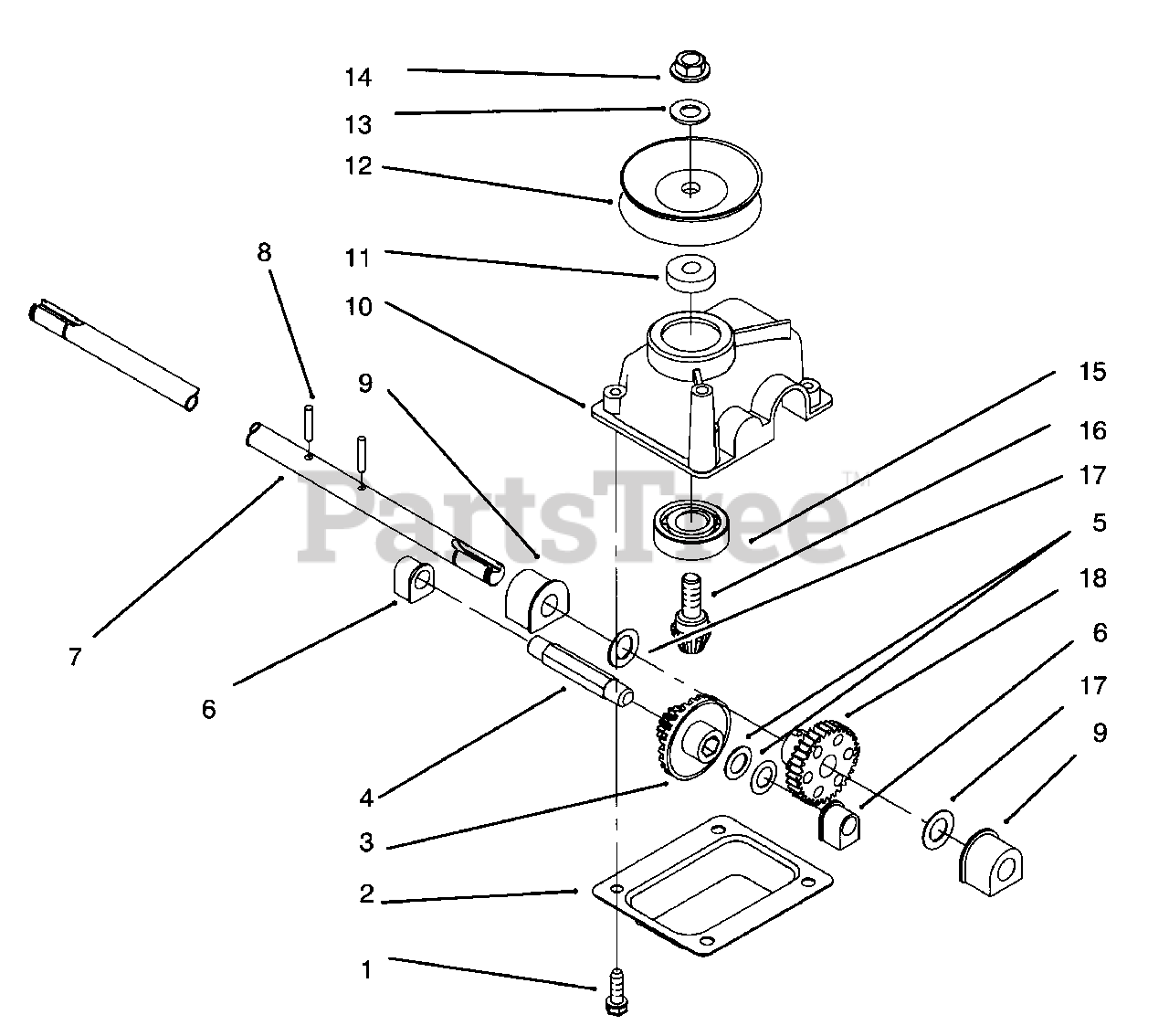

10202 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) GEAR CASE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 32144-4

Screw-Taptite

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 614668

Cover-Gear Case
(Superseded to 614668-03)

$9.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 55-3760

Pinion-15 Tooth
(Superseded to 104-7668)

$34.99

$

In Stock, Qty 15

0

4

Lawn-Boy 614696

Shaft-Intermediate

$108.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 36-4791

Washer

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 60-8750

Bushing

$6.99

$

In Stock, Qty 10

0

7

Lawn-Boy 614666

Shaft-Output
(Superseded to 104-7670)

$139.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 3285-19

Pin-Groove

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 60-8850

Bushing-Output

$8.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 614578

Gearcase

$

$

Not available

11

Lawn-Boy 62-6660

Spacer

$0.99

$

In Stock, Qty 12

0

12

Lawn-Boy 614669

Pulley-Half

$23.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 3256-24

Washer

$0.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 3296-5

Nut

$3.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 38-7820

Bearing-Ball

$13.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 60-8890

Gear-Bevel Pinion
(Superseded to 104-7667)

$18.99

$

In Stock, Qty 10

0

17

Lawn-Boy 36-4780

Washer-Thrust

$7.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 614596

Gear 34 Tooth

$54.99

$

In Stock, Qty 5

0
