10201 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

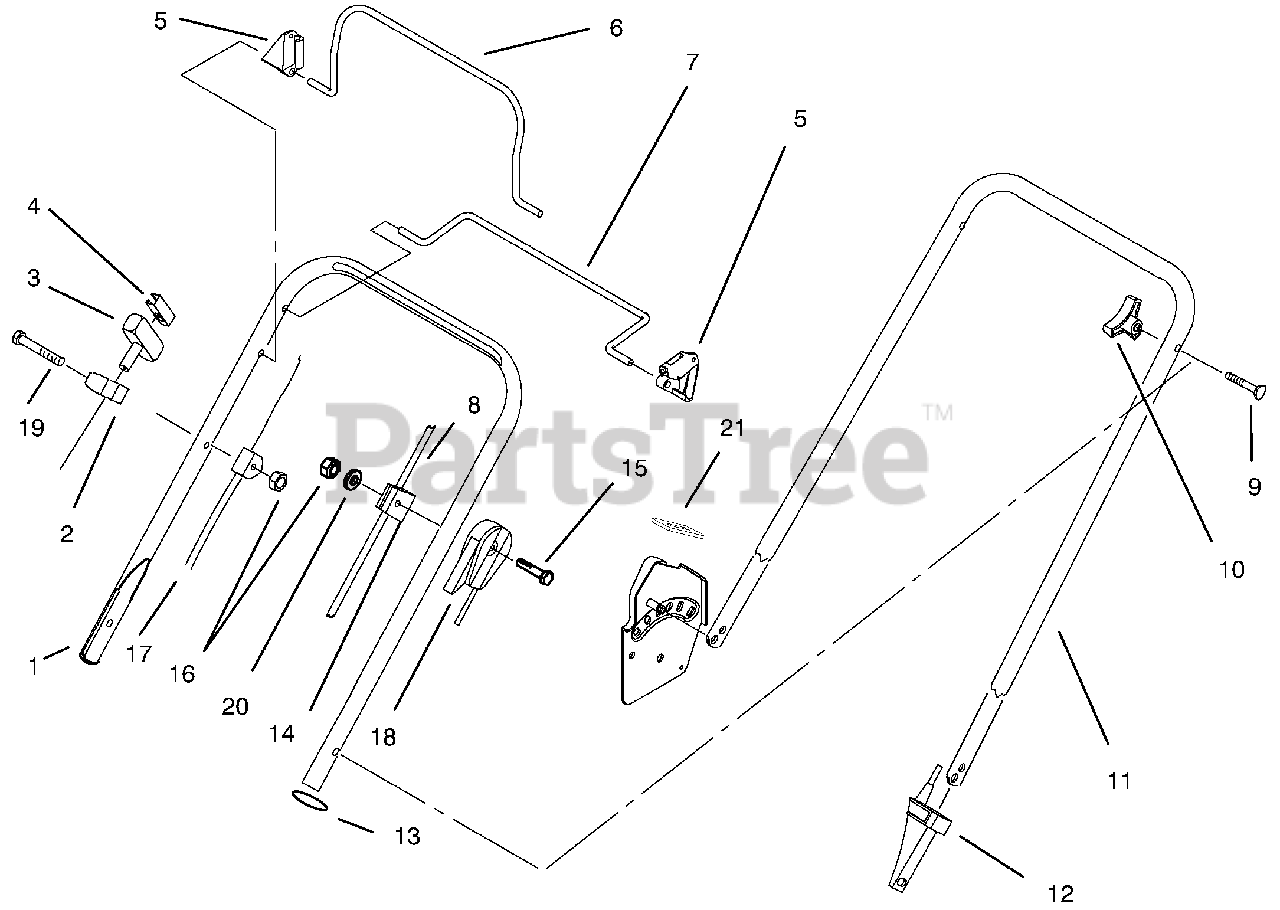

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-7737

Handle-Upper
(Superseded to 92-7737-05)

$

$

Not available

2

Lawn-Boy 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 612824

Clip-Rope Insert

$4.49

$

In Stock, Qty 10

0

5

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 92-1002

Bail-Brake
(Superseded to 92-1002-03)

$

$

Not available

7

Lawn-Boy 92-1001

Bail-Control (Model No. 10301 Only)
(Superseded to 92-1001-03)

$58.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 92-7726

Cable-Traction
(Superseded to 95-5590)

$34.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 614243

Knob-Handle
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 614643

Handle-Lower
(Superseded to 614643-05)

$

$

Not available

12

Lawn-Boy 614693

Anchor-Cable (Lower)(Model No. 10301 Only)
(Superseded to 93-7380)

$14.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, only 2 left!

0

14

Lawn-Boy 92-7729

Anchor-Cable (Upper)(Model No. 10301 Only)

$4.99

$

In Stock, Qty 13

0

15

Lawn-Boy 321-48

Screw (Model No. 10201 Only)

$1.99

$

In Stock, only 2 left!

0

Lawn-Boy 321-49

Screw (Model No. 10301 Only)

$1.99

$

In Stock, Qty 9

0

$5.49

$

In Stock, Qty 8

0

17

Lawn-Boy 92-7738

Cable-Brake

$33.99

$

In Stock, Qty 6

0

18

Lawn-Boy 92-7734

Cable-Throttle

$40.99

$

In Stock, only 3 left!

0

19

$1.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 92-8632

Washer (Model No. 10201 Only)
(Superseded to 115-0995)

$6.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 93-3653

Guard-Handle (Qt'y 2 Model No. 10201 Only)
(Superseded to 104-1013)

$

$

Not available
