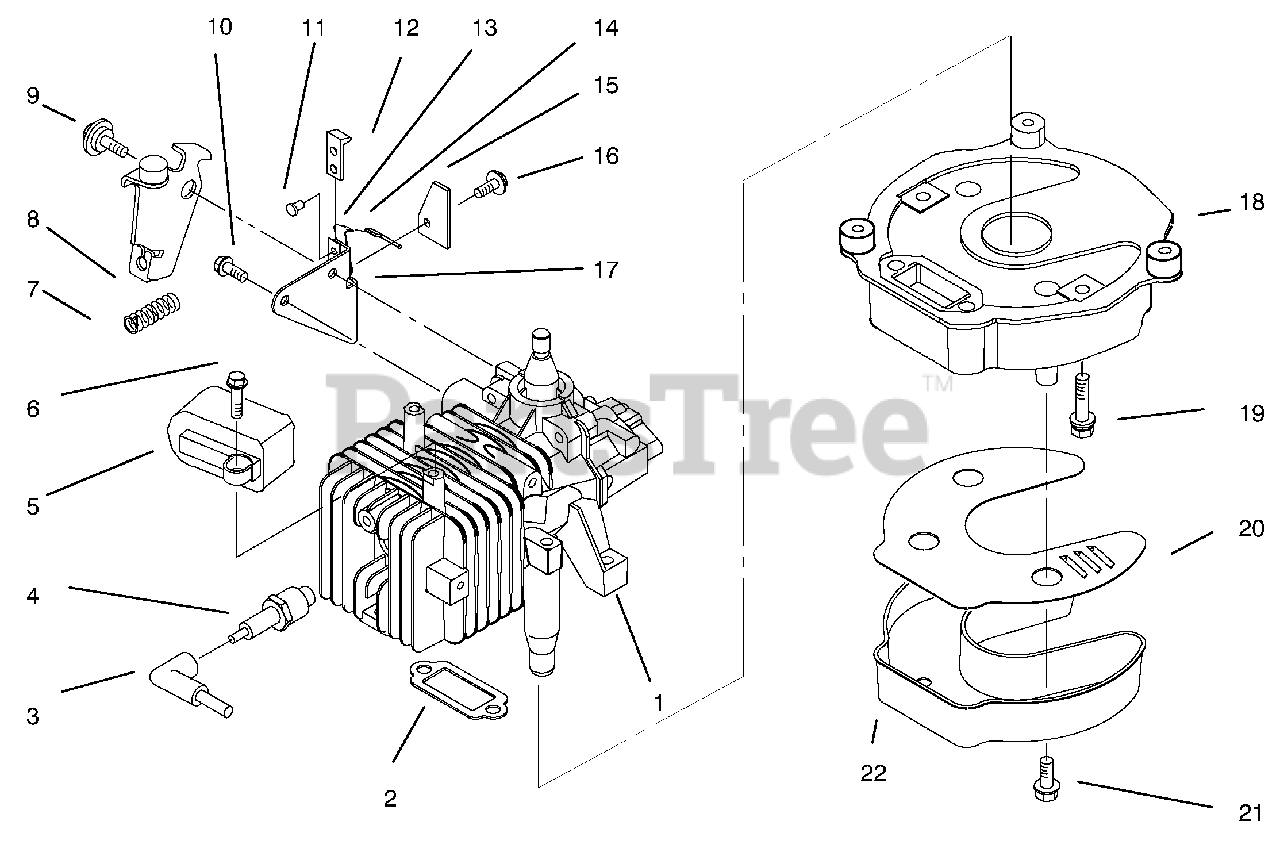

10201 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ENGINE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-9693

Short Block (Incl. Ref. #2, Ref. #9 pg. 8)
(Superseded to 94-5737)

$

$

Not available

3

Lawn-Boy 92-1152

CD Ignition
(Superseded to 99-2916)

$90.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 614009

Plug-Spark

$6.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 684049

CD Ignition (Incl. Ref. #3)
(Superseded to 99-2916)

$90.99

$

In Stock, only 3 left!

0

6

Lawn-Boy 613208

Screw-Hex. Washer Hd.

$2.49

$

In Stock, only 2 left!

0

7

Lawn-Boy 66-5370

Spring-Compression

$12.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 66-5380

Brake Plate Assembly

$78.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-9698

Screw-Shoulder

$5.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 614702

Screw
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 15

0

11

Lawn-Boy 3290-459

Rivet-Plastic

$2.49

$

In Stock, only 1 left!

0

12

Lawn-Boy 92-2925

Strap-Insulation

$2.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 60-9010

Strap-Ground

$14.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-1156

Wire-Brake Switch Lead

$

$

Not available

15

Lawn-Boy 53-4690

Stop-Ground Strap

$4.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 12-5450

Screw-Thread Forming

$9.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 14-6009

Mounting Plate

$

$

Not available

18

Lawn-Boy 614654

Plate-Muffler

$121.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 607601

Screw

$4.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 614681

Baffle
(Superseded to 93-4343)

$14.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 609471

Screw

$4.99

$

In Stock, Qty 14

0

22

Lawn-Boy 614674

Cover-Muffler
(Superseded to 614674-03)

$

$

Not available
