10201 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) 2 CYCLE ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

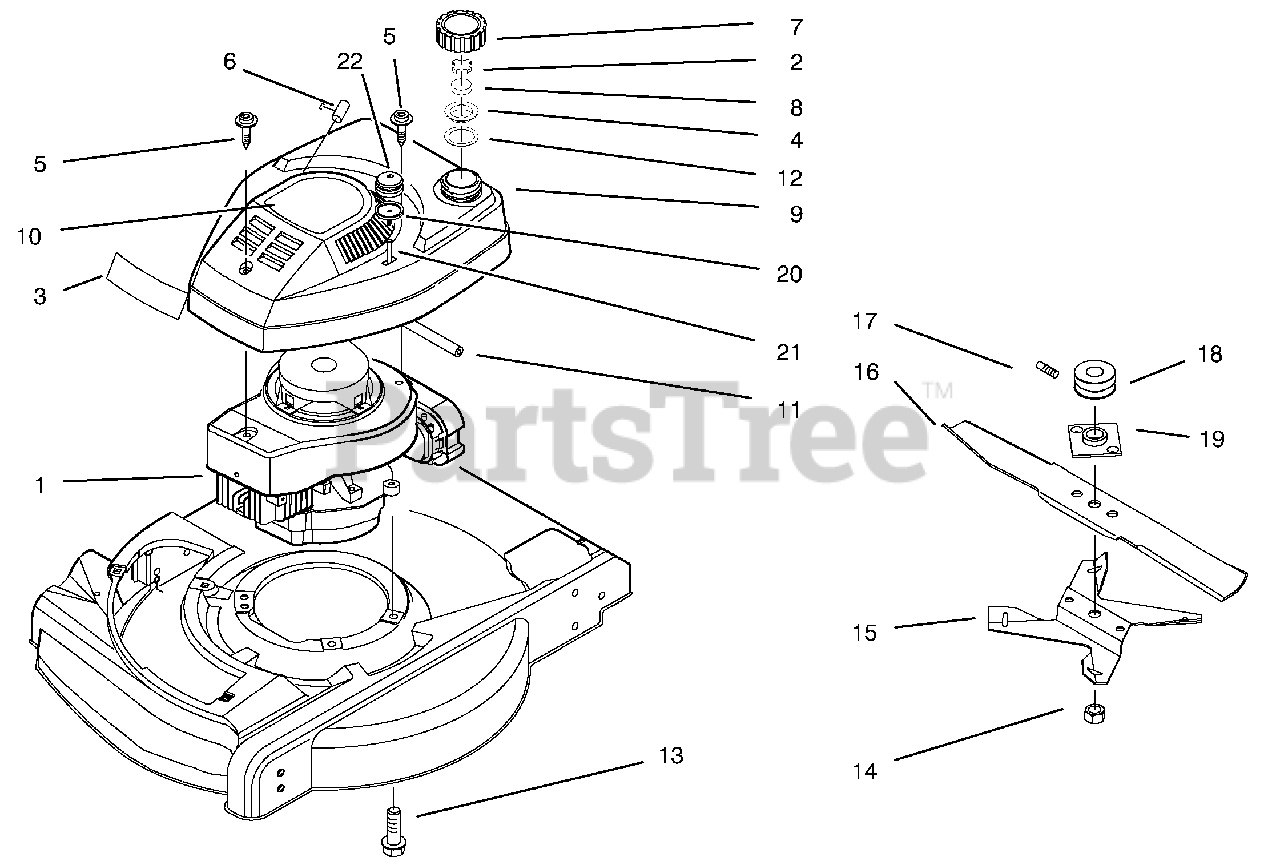

2 CYCLE ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

  • Title

1

Engine Ass'y-2 Cycle

$

$

Not available

2

Lawn-Boy 93-3175

Baffle

$3.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-8615

Applique

$24.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 93-1230

Cover

$

$

Not available

5

Lawn-Boy 93-4302

Screw

$6.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 93-3660

Cap Assembly-Fuel (Includes Ref. #2, 4, 8, & 12)
(Superseded to 98-8344)

$23.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 609150

Baffle-Foam

$5.49

$

In Stock, Qty 11

0

9

Lawn-Boy 92-6380

Shroud & Tank Ass'y

$127.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 92-9569

Decal-Shroud (Model No. 10201 Only)

$22.99

$

Usually ships in 3-6 days

0

Lawn-Boy 92-9570

Decal-Shroud, (Model No. 10301 Only)

Note: Not Illustrated

$22.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 612782

Hose-Gas

$6.49

$

In Stock, Qty 9

0

12

Lawn-Boy 613311

Gasket

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 92-1624

Screw-Engine Mount
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$32.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

17

Lawn-Boy 613227

Screw-Set, Pulley
(Superseded to 105-8875)

$10.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-6542

Pulley-Engine

$77.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 677525

Plate & Collar Ass'y

$23.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 44-3174

Hose-Primer

$4.99

$

In Stock, Qty 15

0

22

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+
