10200 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE & BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

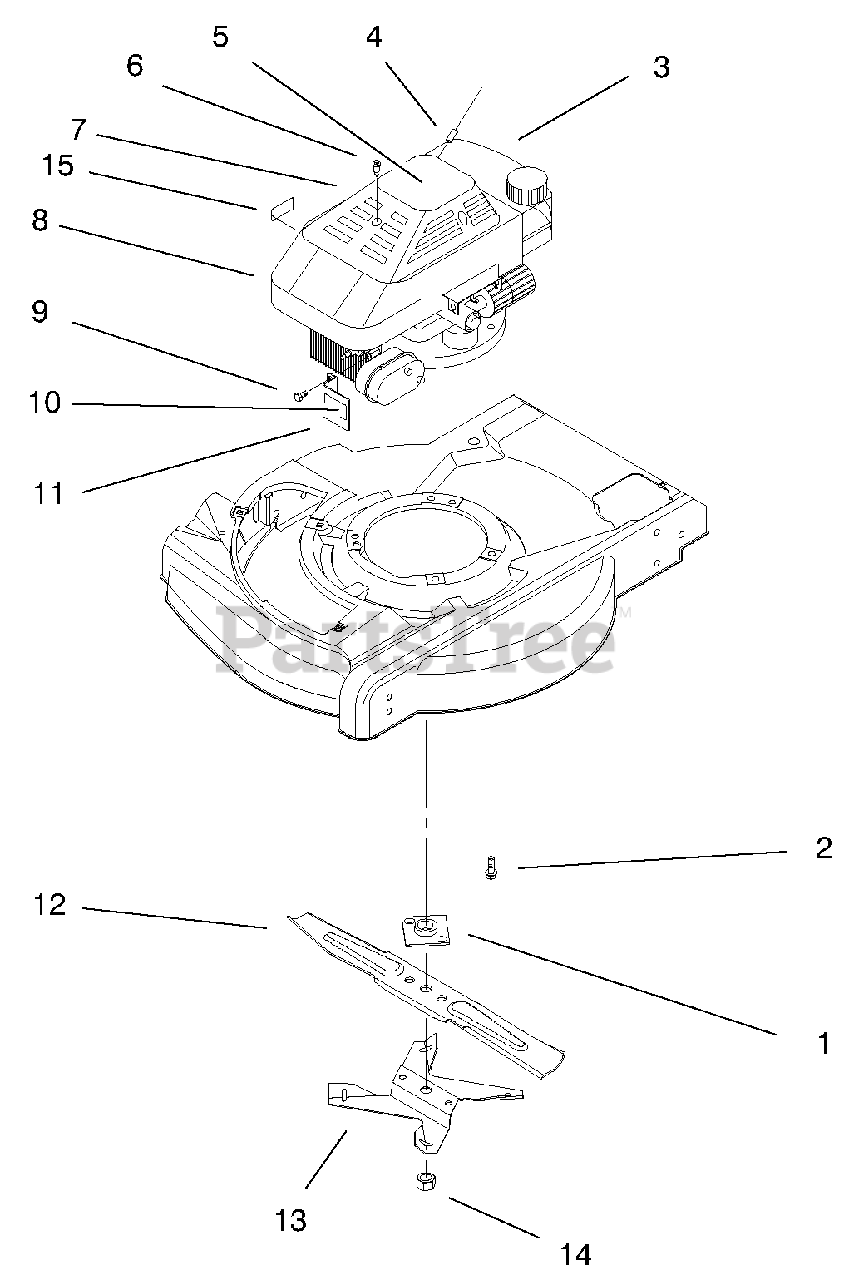

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 677525

Plate & Collar Assembly

$51.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 95-1726

Screw-Engine

$2.99

$

In Stock, Qty 20+

0

3

Engine

$

$

Not available

4

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 95-1745

Decal-Shroud Top

$

$

Not available

6

Lawn-Boy 92-4852

Screw-Recoil Cover

$

$

Not available

7

Lawn-Boy 92-4854

Cover-Starter

$

$

Not available

8

Lawn-Boy 94-6088

Shroud-Engine
(Superseded to 94-6088-02)

$215.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 3274-52

Screw-Hex Socket Hd.

$3.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 65-2690

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

11

Lawn-Boy 92-1605

Guard-Muffler
(Superseded to 16-2139)

$

$

Not available

12

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$37.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 92-4851

Decal-Oil Instruction

$1.99

$

In Stock, only 1 left!

0
