10200 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) CARBURETOR NO. 632733 Parts Diagram

Silver Series Walk-Behind Mower

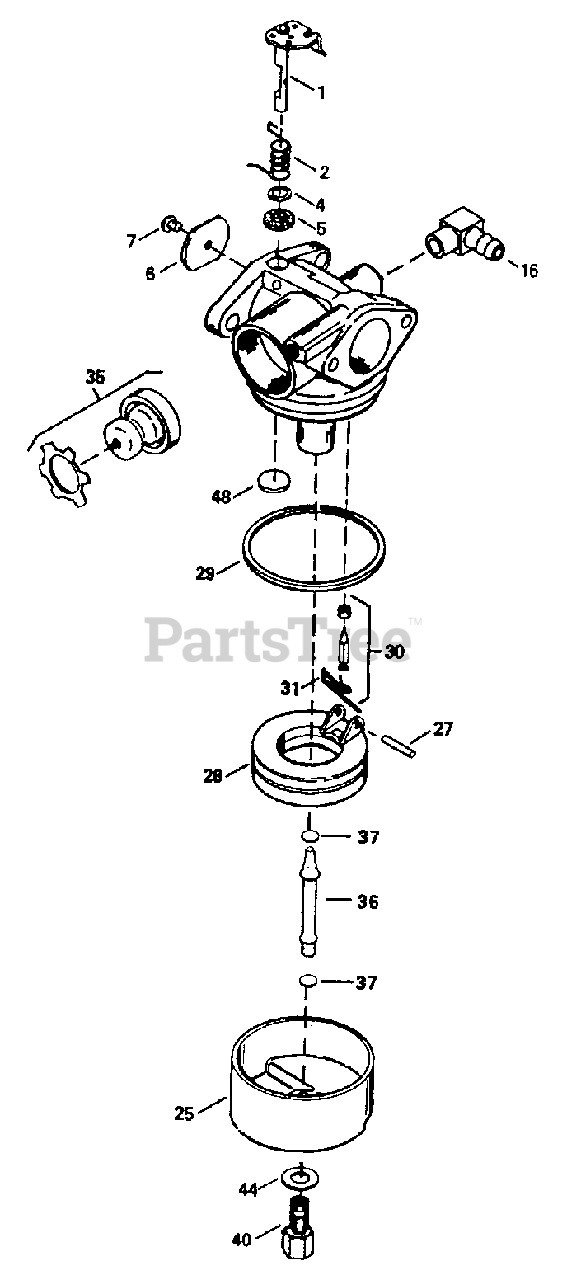

CARBURETOR NO. 632733 Parts Diagram

  • Title
1

Lawn-Boy 631615

Throttle Shaft & Lever Assembly

$

$

Currently unavailable

2

Lawn-Boy 631767

Throttle Return Spring

$

$

Currently unavailable

4

Lawn-Boy 631184

Dust Seal Washer

$

$

Currently unavailable

5

Lawn-Boy 631183

Dust Seal (Throttle)

$

$

Currently unavailable

6

Lawn-Boy 632504

Throttle Shutter

$

$

Currently unavailable

7

Lawn-Boy 650506

Shutter Screw

$

$

Currently unavailable

16

Lawn-Boy 631775

Fuel Fitting

$

$

Currently unavailable

25

Lawn-Boy 631867

Float Bowl

$

$

Currently unavailable

27

Lawn-Boy 631024

Float Shaft

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Lawn-Boy 631028

Float Bowl "O" Ring

$

$

Currently unavailable

30

Lawn-Boy 631021

Inlet Needle, Seat, & Clip (Incl. 31)

$

$

Currently unavailable

31

Lawn-Boy 631022

Spring Clip

$

$

Currently unavailable

35

Lawn-Boy 36045

Primer Bulb/Retainer Ring

$

$

Currently unavailable

36

Lawn-Boy 632735

Main Nozzle Tube

$

$

Currently unavailable

37

Lawn-Boy 632547

O-Ring, Main Nozzle Tube

$

$

Currently unavailable

40

Lawn-Boy 632736

High Speed Bowl Nut

$

$

Currently unavailable

44

Lawn-Boy 27110

Bowl Nut Washer

$

$

Currently unavailable

48

Lawn-Boy 631027

Welch Plug, Atmospheric Vent

$

$

Currently unavailable
