1020 (139-210-100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) PTO Drive Parts Diagram

Lawn Tractor

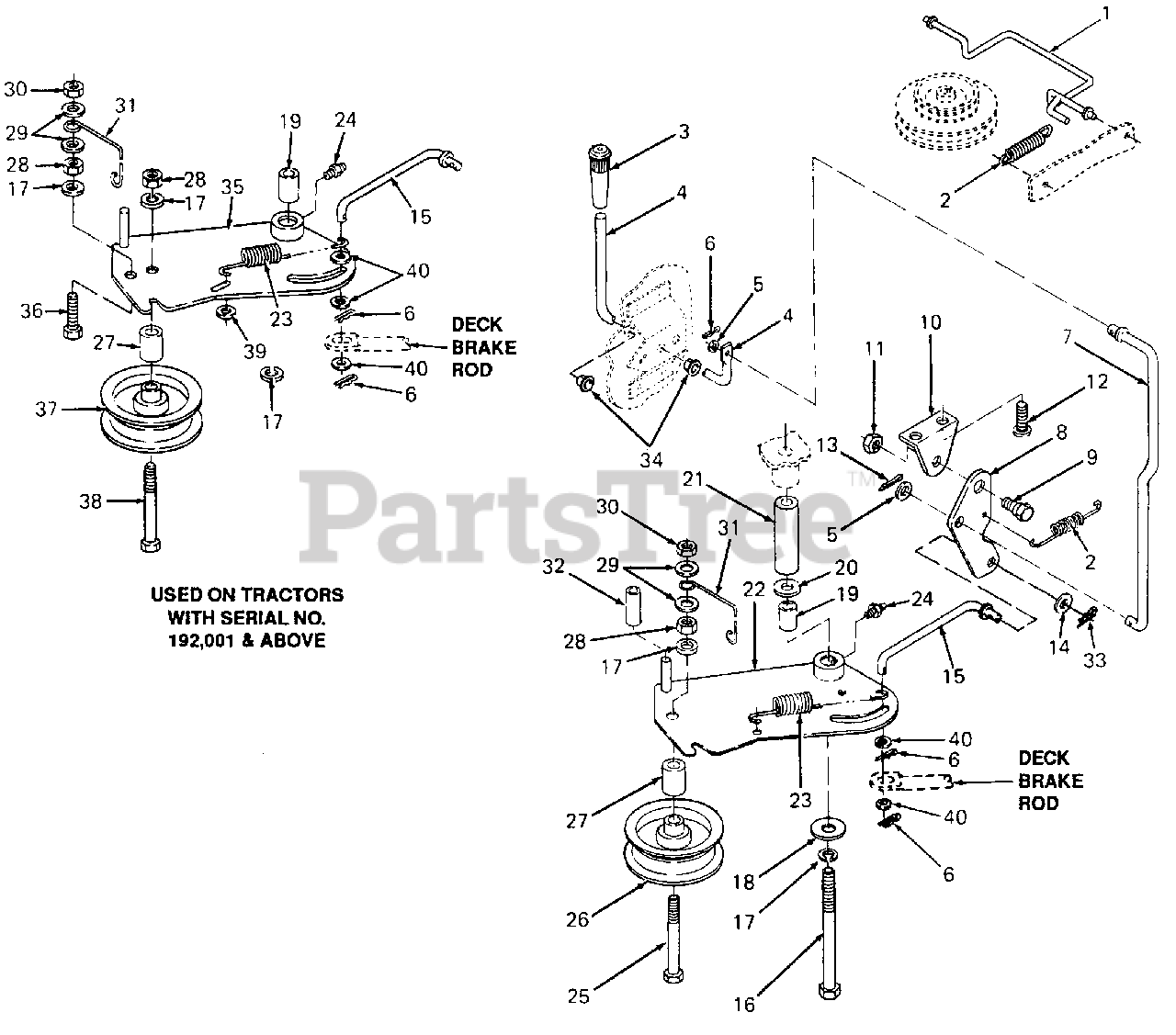

PTO Drive Parts Diagram

  • Title

1

Cub Cadet 703-1543

Guard, Belt

$

$

Not available

2

Cub Cadet 732-3002

Spring, Extension
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0

3

Cub Cadet 720-0143

Grip

$

$

Not available

4

Cub Cadet 747-3115

Handle, PTO Clutch

$

$

Not available

5

Cub Cadet 736-0159

Washer, Flat, .344 X .875 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 714-0104

Pin, Internal Cotter, 5/16 Dia

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 747-3117

Rod, PTO Clutch

$

$

Not available

8

Cub Cadet 703-1539

Cam, Clutch Engagement

Variations

Cub Cadet 703-1539-0637

CAM-CLUTCH ENGAGEM - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 738-0140

Screw, Shoulder

$5.99

$

In Stock, Qty 15

0

10

Cub Cadet 703-1538

Bracket, Pivot

$

$

Not available

11

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0971

Screw, Truss Phillips Hd, 5/16-18 X 1.0 Lg

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet 714-0127

Pin, Cotter, 1/16 Dia X .75 Lg

$

$

Not available

14

Cub Cadet 736-0173

Washer, Flat, .281 X .73 X .063 Thk

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 747-3123A

Rod, Clutch

$

$

Not available

16

Cub Cadet 710-3153

Bolt, Hex, 3/8-16 X 4.75 Lg GR5

$

$

Not available

17

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0247

Washer, Flat, .406 X 1.25 X .157 Thk

$9.49

$

In Stock, Qty 16

0

19

Cub Cadet 750-0252

Spacer, .3776 X .500 X .830 Lg
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

20

Cub Cadet 736-0267

Washer, Flat, .385 X .87 X .06 Thk HDN

$4.49

$

In Stock, only 1 left!

0

21

Cub Cadet 748-3025

Spacer, Idler, .385 X .75 X 2.68 Lg

$

$

Not available

22

Cub Cadet 703-1555

Bracket, Manual Idler Arm
(Superseded to 703-2100)

$414.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-3058

Spring, Extension, .58 OD X 2.90 Lg

$

$

Not available

24

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0521

Screw, Hex Cap, 3/8-16 X 3.0 Lg GR8

$5.49

$

In Stock, Qty 10

0

26

Cub Cadet 756-0217

Idler, Flat
(Superseded to 956-0217)

$22.99

$

In Stock, only 1 left!

0

27

Cub Cadet 711-3276

Spacer, .38 X .75 X .88 Lg

$

$

Not available

28

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06 Thk

$3.99

$

In Stock, only 3 left!

0

30

Cub Cadet 712-0266

Nut, Hex Center Lock Jam, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

31

Cub Cadet 732-3056

Guard, Belt

$15.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 751-3072

Line, Fuel, 1.31 Lg
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

33

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 723-3047

Bushing, Nyliner

$

$

Not available

35

Cub Cadet 703-2100

Bracket, Manual Idler Arm

$414.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 12

0

37

Cub Cadet 756-0365

Idler, Flat
(Superseded to 956-0365)

$48.99

$

In Stock, Qty 7

0

38

Cub Cadet 710-0859

Screw, Hex Cap, 3/8-16 X 2.5 Lg GR5

$6.99

$

In Stock, Qty 16

0

39

Cub Cadet 736-0400

Washer, Flat, .218 X .62 X .063 Thk

$5.49

$

In Stock, Qty 14

0

40

Cub Cadet 736-0342

Washer, Flat, .28 X .72 X .030 Thk

$7.49

$

Usually ships in 3-6 days

0
