1020 (139-210-100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) Electrical Parts Diagram

Lawn Tractor

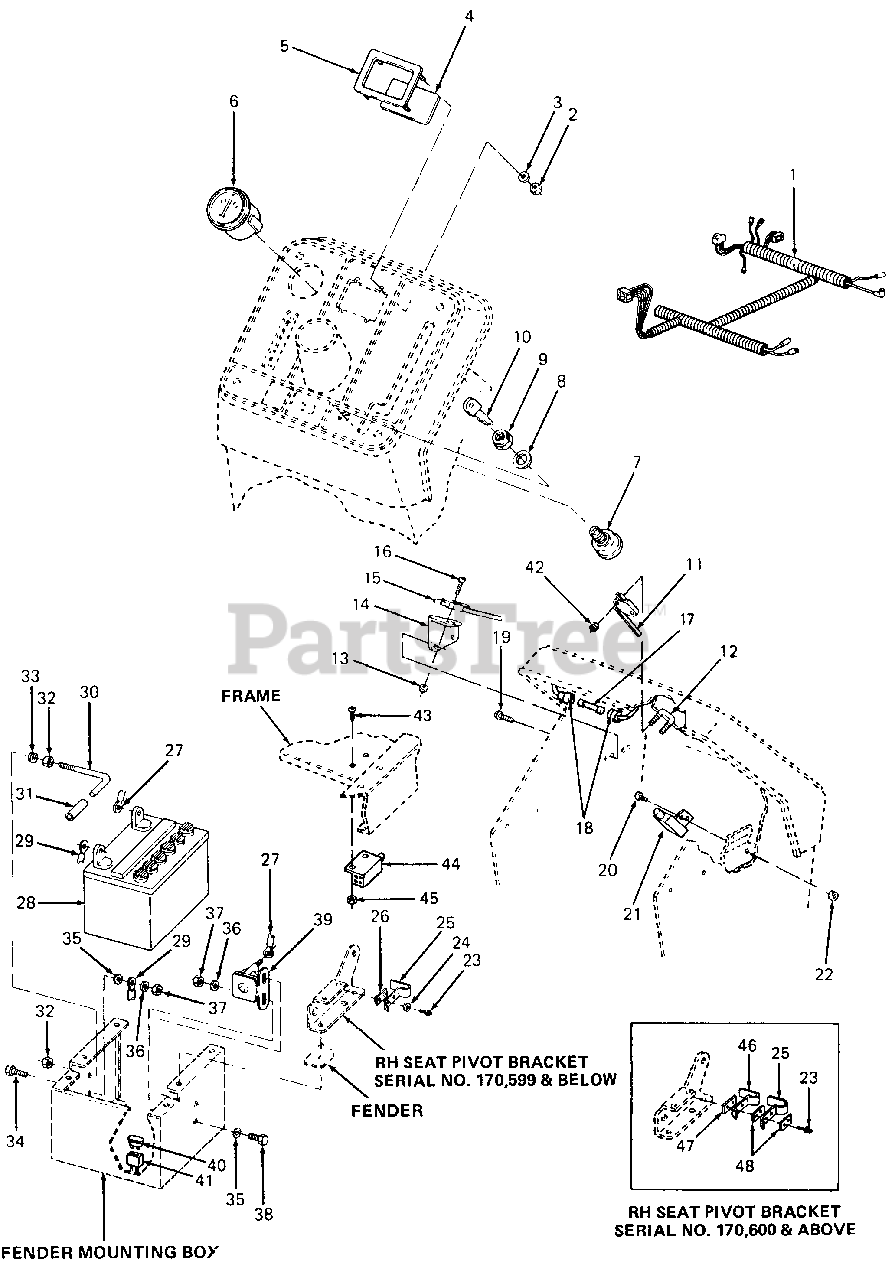

Electrical Parts Diagram

  • Title

1

Cub Cadet 725-3144

Harness, Wire

Note: (For tractors w/serial no. 170,599 and below)

$

$

Not available

Cub Cadet 725-3171

Harness, Wire

Note: (For tractors w/serial no. 170,600 and above)

$

$

Not available

Cub Cadet 725-1436

Diode, Harness Adapter
(Superseded to 925-1436)

$

$

Not available

2

Cub Cadet 712-3060

Nut, Self-Threading

$

$

Not available

3

Cub Cadet 735-0640

Washer, Rubber, .18 X .50 X .06 Thk

$

$

Not available

4

Cub Cadet 779-3293

Label, Indicator

$

$

Not available

5

Cub Cadet 731-3049

Bezel, Light

$

$

Not available

6

Cub Cadet 725-3141

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

7

Cub Cadet 725-3026

Switch, Ignition Key
(Superseded to 925-3026)

$43.99

$

In Stock, Qty 5

0

8

Cub Cadet 736-0302

Washer, Flat

$

$

Not available

9

Cub Cadet 712-3013

Nut, Ignition Switch

$

$

Not available

10

Cub Cadet 759-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

11

Cub Cadet 725-3066

Switch, Rev. Micro
(Superseded to 925-3066)

$

$

Not available

12

Cub Cadet 711-3259

Screw, Switch

$

$

Not available

13

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

Note: (For tractors w/serial no. 170,599 and below)

$

$

Not available

14

Cub Cadet 703-1606

Plate, Switch

Note: (For tractors w/serial no. 170,599 and below)

$

$

Not available

15

Cub Cadet 725-3146

Switch, Micro
(Superseded to 925-3146)

Note: (For tractors w/serial no. 170,599 and below)

$

$

Not available

16

Cub Cadet 710-3112

Screw, Hex Hd Mach, #4-40 X .75 Lg

Note: (For tractors w/serial no. 170,599 and below)

$

$

Not available

17

Cub Cadet 725-3120

Fuse, 20 Amp Slo-Blow
(Superseded to 925-3120)

Note: (For tractors with fuse under the dash)

$

$

Not available

18

Cub Cadet 729-0124

Fuse Holder

Note: (For tractors with fuse under the dash)

$

$

Not available

19

Cub Cadet 710-0776

Screw, Hex AB Tapp, 1/4 X .62 Lg
(Superseded to 710-0896)

Note: (For tractors w/serial no. 170,599 and below)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0473

Screw, Truss Mach, #10-24 X .50 Lg

$4.49

$

In Stock, only 2 left!

0

21

Cub Cadet 725-0465A

Switch, Safety
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

22

Cub Cadet 712-0998

Nut, Hex Center Lock, #10-24

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0227

Screw, Hex Wash Hd AB Tapp, #8 X .50 Lg

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0426

Washer, Plastic

Note: (For tractors w/serial no. 170,599 and below)

$

$

Not available

25

Cub Cadet 725-1303

Switch, Spring
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

26

Cub Cadet 726-0222

Plate, Insulator Nut
(Superseded to 926-0320)

Note: (For tractors w/serial no. 170,599 and below)

$6.99

$

In Stock, Qty 11

0

27

Cub Cadet 725-3158

Wire, Positive Battery

$

$

Not available

28

Cub Cadet 725-3061

Battery, 12 Volt
(Superseded to 925-1707D)

$

$

Not available

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 725-0977

Wire, Ground, 11.5 in. Lg

$

$

Not available

30

Cub Cadet 747-0216

Pin, Belt Guard Lock

$

$

Not available

31

Fuel Line, 2 in. Lg

Note: (Use bulk fuel line part no. 759-3330, 10 ft. Lg)

$

$

Not available

32

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

33

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-3006

Washer, Int Ext Lock, 1/4 X 3/4

$6.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0173

Washer, Flat, .281 X .73 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

38

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.99

$

In Stock, Qty 11

0

39

Cub Cadet 725-0771

Solenoid, 12 Volt
(Superseded to 925-0771)

Note: (For tractors w/serial no. 170,599 and below)

$35.99

$

In Stock, only 1 left!

0

Cub Cadet 725-1426

Solenoid, 12 Volt w/Spade Terminal
(Superseded to 925-1426A)

Note: (For tractors w/serial No. 170,600 and above)

$26.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 19

0

40

Cub Cadet 725-1381

Fuse, Auto Type, 20 Amp
(Superseded to 925-1381)

Note: (For tractors with fuse under the seat)

$6.49

$

In Stock, Qty 11

0

41

Cub Cadet 729-0207

Fuse Holder

$

$

Not available

Cub Cadet 729-0209

Clip, Fuse Holder Mtg

Note: (For tractors with fuse under the seat)

$

$

Not available

42

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

43

Cub Cadet 710-0519

Screw, #10-24 X .50 Lg

Note: (For tractors w/serial no. 170,600 and above)

$

$

Not available

44

Cub Cadet 725-3169

Switch, Double Poled Plunger
(Superseded to 925-04039)

Note: (For tractors w/serial no. 170,600 and above)

$24.99

$

In Stock, Qty 8

0

45

Cub Cadet 712-0998

Nut, Hex Center Lock, #10-24

Note: (For tractors w/serial no. 170,600 and above)

$3.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 725-1439

Switch, Spring

Note: (For tractors w/serial no. 170,600 and above)

$8.49

$

In Stock, Qty 10

0

47

Cub Cadet 726-0278

Plate, Insulator Boss

Note: (For tractors w/serial no. 170,600 and above)

$6.99

$

In Stock, Qty 10

0

48

Cub Cadet 726-0279

Plate, Insulator

Note: (For tractors w/serial no. 170,600 and above)

$3.99

$

In Stock, Qty 8

0
