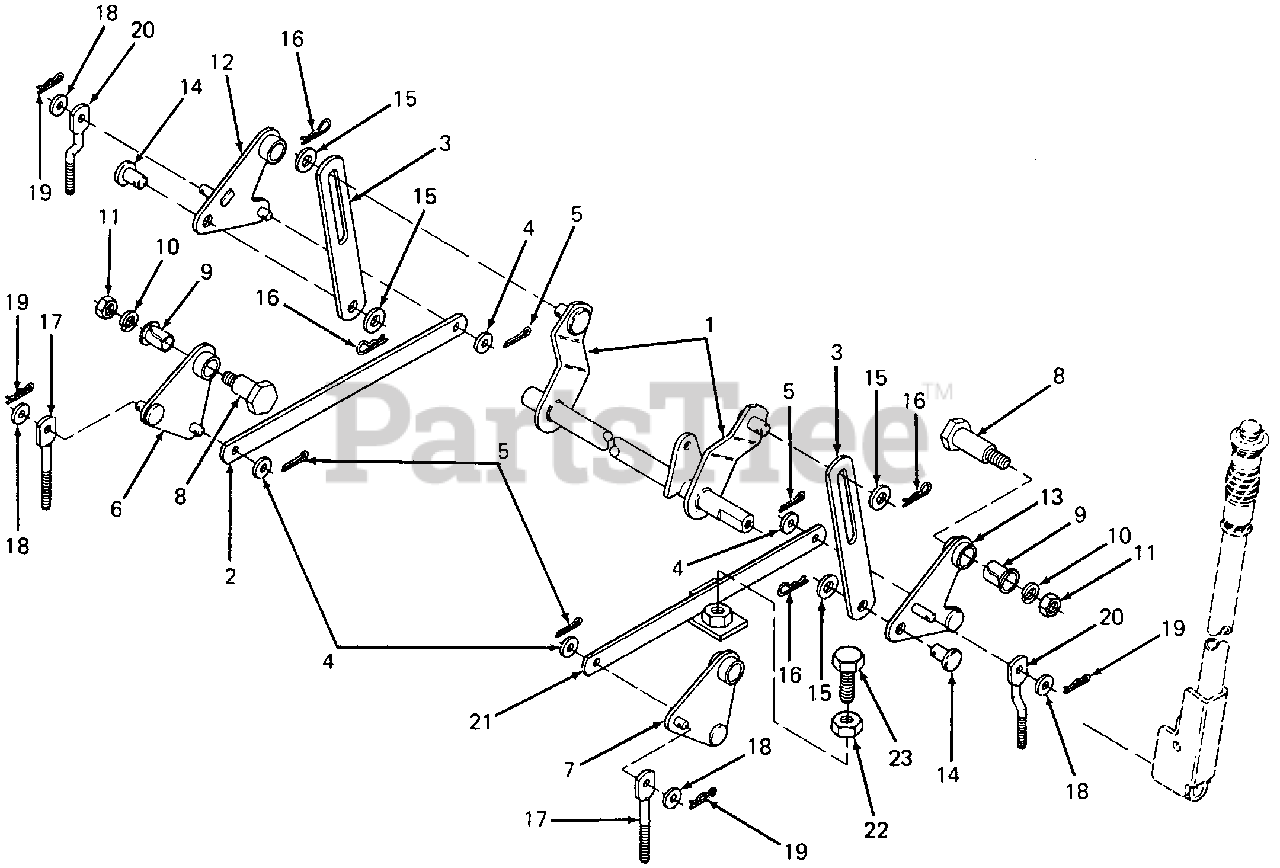

1020 (139-210-100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) Deck Lift & Hanger Parts Diagram

Lawn Tractor

Deck Lift & Hanger Parts Diagram

  • Title
1

Cub Cadet 703-1578

Shaft Assy, Lift

$

$

Currently unavailable

$

$

Not available

3

Cub Cadet 703-1601

Link, Lift

$

$

Not available

4

Cub Cadet 736-0101

Washer, Flat, .406 X 1.0 X .030 Thk
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 714-0474

Pin, Cotter, 1/8 X 3/4 Lg

$4.99

$

In Stock, Qty 13

0

6

Cub Cadet 703-1595

Cam Assy, Rear Lift - LH

$

$

Not available

7

Cub Cadet 703-1594

Cam Assy, Rear Lift - RH
(Superseded to 903-1594)

$

$

Not available

8

Cub Cadet 738-0150

Screw, Shoulder, .625 X .960
(Superseded to 938-0150)

$24.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0295

Bearing, Flanged Nyliner
(Superseded to 941-0591)

$

$

Not available

10

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

12

Cub Cadet 703-1597

Cam Assy, Front Lift - LH
(Superseded to 903-1597)

$152.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-1598

Cam Assy, Front Lift - RH

Variations

Cub Cadet 703-1598-0637

Cam Assembly, RH Front - POWDER BLACK (0637)

$167.99

$

Usually ships in 3-6 days

0

$167.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 711-3241

Pin, Clevis, .50 Dia X .62 Lg
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

15

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .06 Thk

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0149

Pin, Internal Cotter
(Superseded to 914-0149B)

$

$

Not available

17

Cub Cadet 711-3239

Link, Rear Lift
(Superseded to 911-3239)

$14.99

$

In Stock, Qty 7

0

18

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 711-3237

Link, Front Lift

$16.99

$

In Stock, Qty 11

0

21

Cub Cadet 703-1708

Lift Stop Assy

$

$

Not available

22

Cub Cadet 712-3008

Nut, Hex, 3/16-18 GR5

$4.99

$

In Stock, Qty 16

0

23

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0
