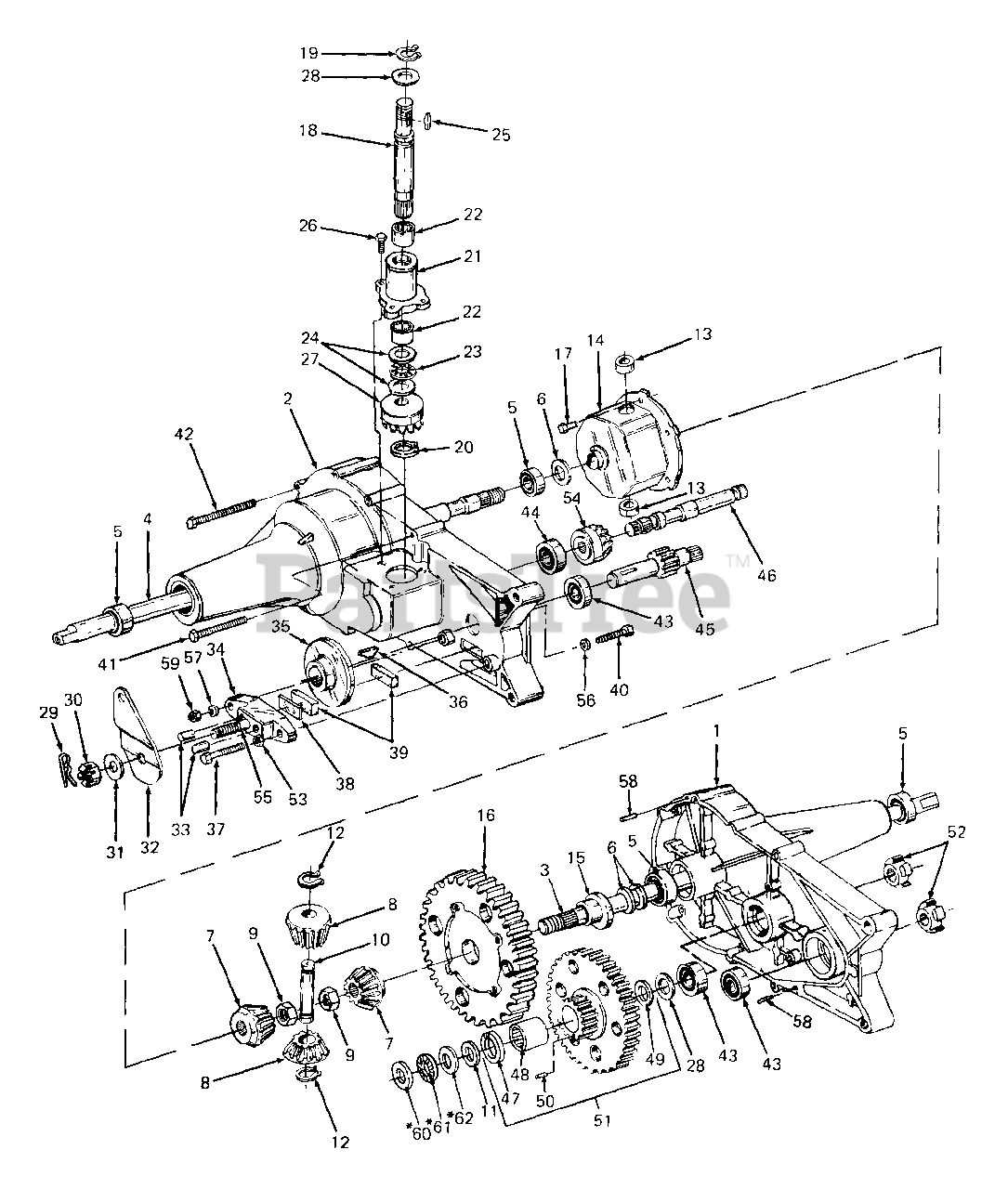

1020 (131-210D100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) Transmission Parts Diagram

Lawn Tractor

Transmission Parts Diagram

  • Title

Cub Cadet 717-3048

Axle Assy, Complete

$

$

Currently unavailable

1

Cub Cadet AF-44077

Housing Half, LH
(Superseded to HG-62587)

$

$

Not available

2

Cub Cadet AF-44076

Housing half, RH
(Superseded to HG-62586P)

$

$

Not available

3

Cub Cadet AF-44065

Axle, LH

$

$

Currently unavailable

4

Cub Cadet AF-44086

Axle, RH

$

$

Not available

5

Cub Cadet AF-44121

Bearing, Ball
(Superseded to HG-44121P)

$56.99

$

In Stock, only 2 left!

0

6

Cub Cadet 736-0351

Washer, Flat, .76 X 1.5 X .306 Thk Hdn

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 717-1019

Gear, Miter
(Superseded to 917-1019)

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 717-1020

Gear, Miter

$

$

Not available

9

Cub Cadet 712-0200A

Nut, Hex Jam Patch Lock, 1/2-20

$4.49

$

In Stock, only 1 left!

0

10

Shaft, Cross

Note: (Order service kit 753-0527)

$

$

Not available

11

Cub Cadet AF-44371

Washer, Flat, .62 ID X 1.0 OD X .050 Thk
(Superseded to HG-44371)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0337

Washer, Flat, .62 ID X 1.0 OD X .040 Thk

$4.49

$

In Stock, Qty 9

0

12

Ring, Snap

Note: (Order service kit 753-0527)

$

$

Not available

13

Bearing, Thrust

Note: (Order service kit 753-0527)

$

$

Not available

14

Cub Cadet 717-0777

Housing Assy, Differential
(Superseded to 753-0546)

$62.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 741-0376

Bearing, Flange, .75 ID X .587
(Superseded to 941-0376)

$8.99

$

In Stock, Qty 7

0

16

Cub Cadet 717-0767

Gear, Differential, 72 Tooth
(Superseded to 917-0767)

$

$

Not available

17

Cub Cadet AF-44126

Bolt, Hex Wash Hd Patch, 1/4-28 X .62 Lg
(Superseded to HG-44126)

$

$

Not available

18

Cub Cadet 717-0634A

Shaft, Input

$119.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 716-0115

Ring, Snap
(Superseded to 916-0115)

$

$

Not available

20

Cub Cadet 716-0108

Ring, Retaining, Ext, 7/16 Dia

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet AF-44081

Bearing, Input Housing

$

$

Currently unavailable

22

Cub Cadet 741-0335

Bearing, Needle, 5/8 ID X .50 Lg
(Superseded to 941-0335)

$18.99

$

In Stock, only 4 left!

0

23

Cub Cadet AF-44139

Bearing, Thrust
(Superseded to HG-44139P)

$

$

Not available

24

Cub Cadet AF-44109

Washer, Flat, 5/8 OD X 1.12 OD X .030 Thk
(Superseded to HG-44109)

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 714-0129

Key, #4 Hi-Pro, 3/32 X 5/8 Dia Hdn
(Superseded to 914-0129)

$

$

Not available

26

Cub Cadet AF-44122

Screw, Hex Patch Lock, 1/4-20 X 3/4 Lg

$

$

Not available

27

Cub Cadet AF-44078

Gear, Input Pinion, 17 Tooth

$

$

Currently unavailable

28

Cub Cadet AF-44371

Washer, Flat, .62 ID X 1.0 OD X .050 Thk
(Superseded to HG-44371)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet AF-44110

Washer, Flat, .62 ID X 1.12 OD X .060 Thk

$

$

Currently unavailable

Cub Cadet 736-0337

Washer, Flat, .62 ID X 1.0 OD X .040 Thk

$4.49

$

In Stock, Qty 9

0

29

Cub Cadet AF-44101

Pin, Cotter

$

$

Not available

30

Cub Cadet 712-0335

Nut, Castle, 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0371

Washer, Flat, .343 X .88 X .062 Thk

$4.49

$

In Stock, only 3 left!

0

32

Cub Cadet AF-44094

Arm, Brake Actuator

$

$

Not available

33

Cub Cadet 741-0343

Pin, Actuating, 5/16 Dia

$10.99

$

In Stock, Qty 7

0

34

Cub Cadet 717-0679

Yoke, Brake

$

$

Not available

35

Cub Cadet 717-0677

Disc, Brake

$

$

Not available

36

Cub Cadet 714-0161

Key, Hi-Pro, 3/16 X 5/8 Dia
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 710-3201

Screw, Hex Patch Lock, 1/4-20 X 1.5 Lg

$

$

Not available

38

Cub Cadet 717-0682

Plate, Puck
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

39

Cub Cadet 717-0678

Puck, Brake
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

40

Cub Cadet AF-44277

Screw, Hex Cap, 1/4-20 X 1.5 Lg

$

$

Not available

41

Cub Cadet AF-44123

Screw, Hex Self-Tapp, 1/4-20 X 2.0 Lg

$

$

Not available

42

Cub Cadet AF-44124

Screw, Hex Self-Tapp, 1/4-20 X 2.75 Lg

$

$

Not available

43

Cub Cadet 741-0155

Bearing, Ball
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

44

Cub Cadet AF-44232

Bearing, Ball
(Superseded to HG-44232P)

$

$

Not available

45

Cub Cadet AF-44083

Shaft, Pinion w/11 Tooth Gear
(Superseded to HG-44083P)

$

$

Not available

46

Cub Cadet AF-44080

Shaft, Drive
(Superseded to HG-44080)

$181.99

$

Usually ships in 3-6 days

0

47

Cub Cadet AF-44343

Bearing, Bronze Thrust
(Superseded to HG-44343)

$28.99

$

In Stock, only 1 left!

0

48

Cub Cadet AF-44342

Bearing, Needle
(Superseded to 941-0478)

$

$

Not available

49

Cub Cadet AF-44394

Seal, Grease
(Superseded to HG-44394)

$

$

Not available

50

Cub Cadet AF-44346

Pin, Dowel, 3/32 Dia X .25 Lg

$

$

Not available

51

Cub Cadet AF-62760

Gear Assy, 60 & 17 Tooth
(Superseded to HG-62760P)

$

$

Not available

52

Cub Cadet AF-44084

Coupling
(Superseded to HG-44084P)

$17.99

$

In Stock, Qty 6

0

53

Cub Cadet 712-0298

Nut, Hex Jam, 1/4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

54

Cub Cadet AF-44079

Gear, Drive Pinion, 17 Tooth

$

$

Not available

55

Cub Cadet 717-0796

Bolt, Square Hd, 5/16-24

$

$

Not available

56

Cub Cadet 736-0176

Washer, Flat, .265 X .938 X .12 Thk

$4.99

$

In Stock, only 4 left!

0

57

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

58

Cub Cadet AF-44269

Pin, Roll, 3/16 Dia X .50 Lg

$

$

Not available

59

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 19

0

60

Cub Cadet AF-44110

Washer, Flat, .62 ID X 1.12 OD X .060 Thk

$

$

Currently unavailable

61

Cub Cadet AF-44139

Bearing, Thrust
(Superseded to HG-44139P)

$

$

Not available

62

Cub Cadet AF-44109

Washer, Flat, .62 ID X 1.12 OD X .030 Thk
(Superseded to HG-44109)

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-0223

Grease, Transmission
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 753-0527

Kit, Differential Cross Shaft

$

$

Not available

Cub Cadet 711-0918

Shaft, Cross

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 716-0184

Ring, Snap
(Superseded to 916-0184)

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-0589

Bearing, Thrust
(Superseded to 941-0589)

$6.49

$

Usually ships in 3-6 days

0
