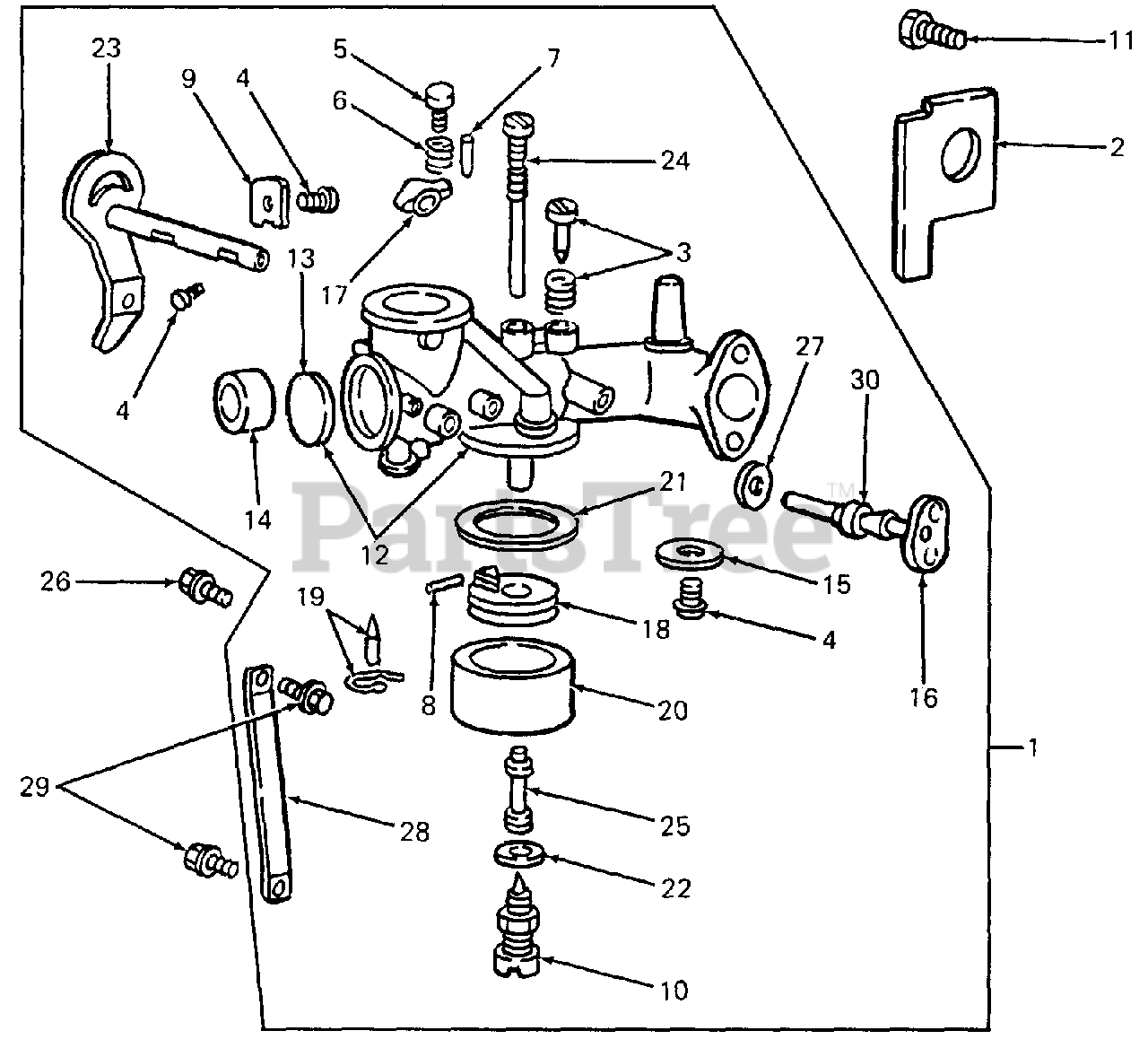

1020 (131-210D100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) Carburetor Parts Diagram

Lawn Tractor

Carburetor Parts Diagram

  • Title
1

Cub Cadet BS-491602

Carburetor Assembly

$239.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-270872

Gasket, Carburetor Mounting
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 5

0

3

Cub Cadet BS-292681

Valve Assy, Carburetor Idle

$11.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-93499

Screw, Throttle & Choke Valve Mtg Sems
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

5

Cub Cadet BS-91920

Screw, Machine Fill Hd, #8-32 X .62 Lg

$

$

Currently unavailable

6

Cub Cadet BS-26157

Spring, Throttle Adjustment
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-93043

Pin, Throttle Stop

$

$

Not available

8

Cub Cadet BS-230896

Pin, Float Hinge

$

$

Not available

9

Cub Cadet BS-222010

Valve, Choke

$7.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-396568

Valve, Needle

$20.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-93357

Screw, Carburetor Mounting

$

$

Not available

12

Cub Cadet BS-490473

Body Assy, Carburetor

Note: (Includes Ref No. 13)

$109.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-221997

Plug, Welch

$4.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-213115

Venturi, Carburetor

$

$

Currently unavailable

15

Cub Cadet BS-222433

Valve, Throttle

$9.49

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-491006

Shaft & Lever, Throttle

$21.99

$

In Stock, only 2 left!

0

17

Cub Cadet BS-211712

Stop, Throttle
(Superseded to BS-691708)

$8.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-299707

Float, Carburetor

$

$

Not available

19

Cub Cadet BS-394681

Valve, Fuel Inlet

$7.99

$

In Stock, only 1 left!

0

20

Cub Cadet BS-221995

Bowl, Fuel

$8.99

$

In Stock, Qty 6

0

21

Cub Cadet BS-270511

Gasket, Float Bowl

$3.49

$

In Stock, Qty 19

0

22

Cub Cadet BS-222014

Washer, Float Bowl
(Superseded to BS-690618)

$4.99

$

In Stock, Qty 9

0

23

Cub Cadet BS-299647

Shaft & Lever, Manual Choke

$16.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-299740

Nozzle, Carburetor

$15.99

$

In Stock, only 2 left!

0

25

Cub Cadet BS-231323

Screw, Nozzle

$24.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-93543

Screw, Control Casing

$

$

Not available

27

Cub Cadet BS-271853

Washer, Foam
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

28

Cub Cadet BS-222311

Bracket, Carburetor

$

$

Not available

29

Cub Cadet BS-93572

Screw, Carburetor
(Superseded to 710-0432)

$

$

Not available

30

Cub Cadet BS-398970

Seal, Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

Cub Cadet BS-394698

Kit, Carburetor Overhaul

Note: (Includes Ref No. 3, 8, 10, 13, 19, 21, 22, 24 & 25)

$32.99

$

In Stock, Qty 14

0
