1020 (130-210-100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) Fenders, Foot Rests & Battery Tray Parts Diagram

Lawn Tractor

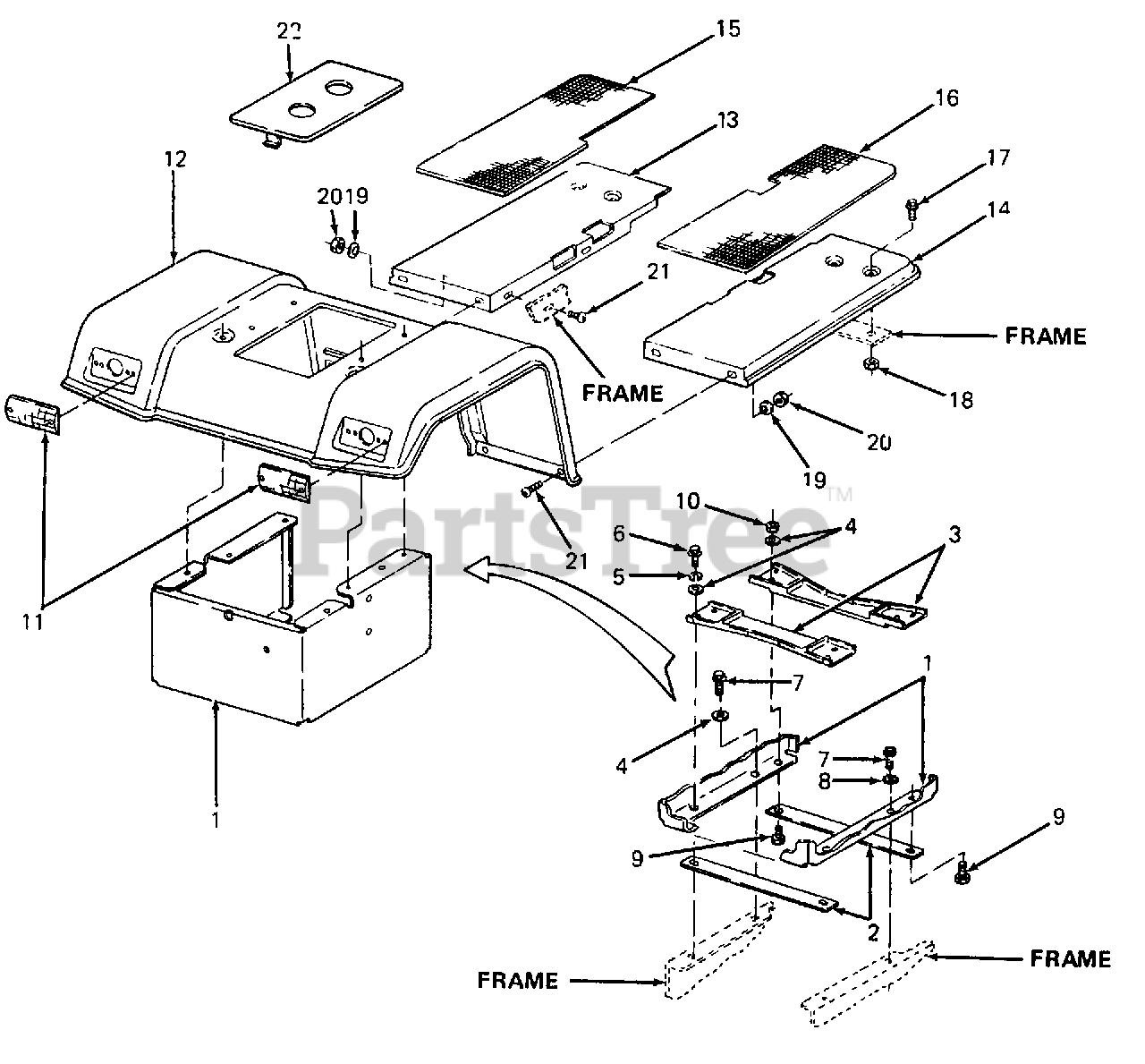

Fenders, Foot Rests & Battery Tray Parts Diagram

  • Title
1

Cub Cadet 703-1525B

Box, Fender Mounting

$

$

Not available

2

Cub Cadet 703-1719

Plate, Reinforcement

$

$

Not available

3

Cub Cadet 731-3082A

Tray, Battery

$

$

Currently unavailable

4

Cub Cadet 736-0159

Washer, Flat, .344 X .875 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0650

Screw, Hex Wash Hd Tapp, 5/16-18 X .88 Lg

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp, 5/16-18 X .50 Lg

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 736-3007

Washer, Int Ext Lock, 5/16 X 7/8

$

$

Not available

9

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3068

Nut, Hex Patch Lock, 5/16-18
(Superseded to 912-3009)

$

$

Not available

11

Cub Cadet 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

$

$

Not available

13

Cub Cadet 703-1575

Foot Rest - LH

Variations

Cub Cadet 703-1575-0498

FOOT REST (LH) (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

14

Cub Cadet 703-1576

Foot Rest - RH

Variations

Cub Cadet 703-1576-0498

FOOT REST (RH) (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

15

Cub Cadet 723-3056

Pad, LH - Foot Rest

$

$

Currently unavailable

16

Cub Cadet 723-3057

Pad, RH - Foot Rest

$

$

Currently unavailable

17

Cub Cadet 710-0604

Screw, Hex Wash Hd Tapp, 5/16-18 X .62 Lg
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

21

Cub Cadet 710-0286

Screw, Truss Mach, 1/4-20 X .50 Lg

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-3083

Cover, Battery

$

$

Currently unavailable
