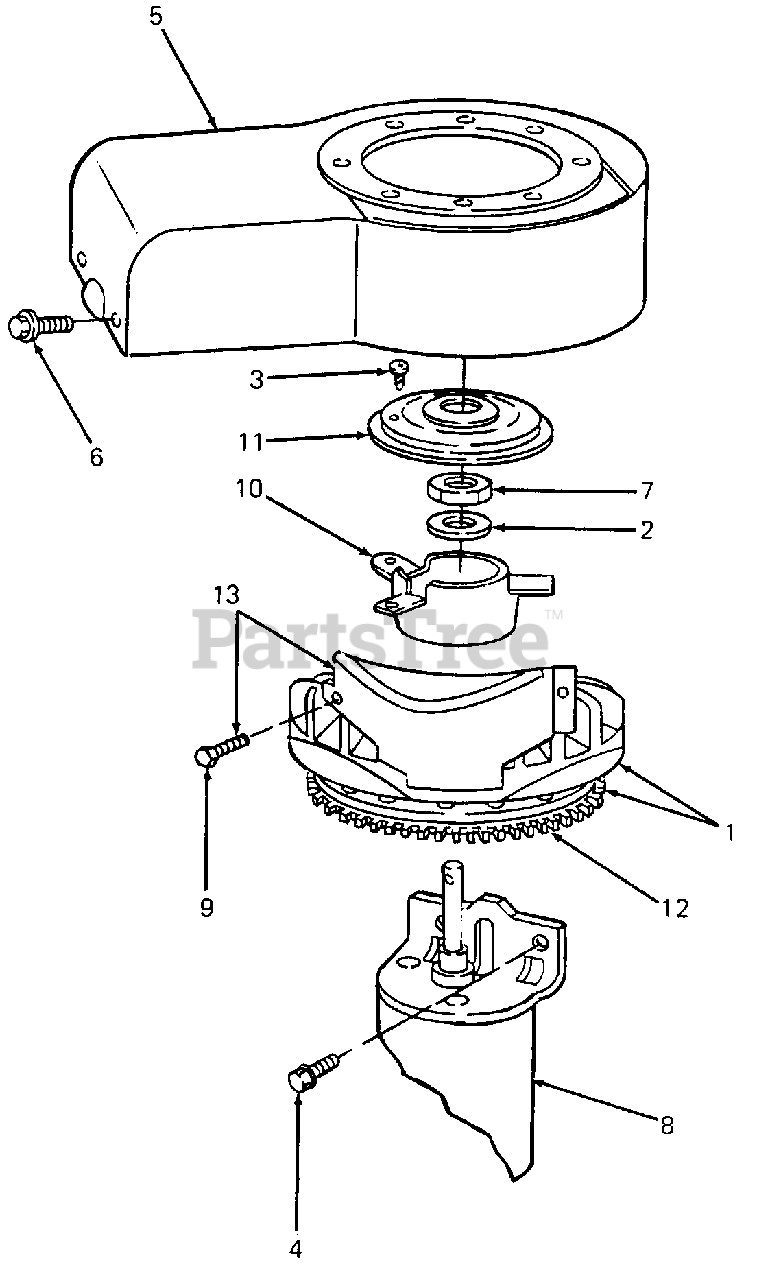

1020 (130-210-100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) Engine Flywheel, Ring Gear, Blower Housing & Screen Parts Diagram

Lawn Tractor

Engine Flywheel, Ring Gear, Blower Housing & Screen Parts Diagram

  • Title

1

Cub Cadet BS-391988

Flywheel & Ring Gear Assy - Magneto

Note: (Includes Ref No. 12)

$

$

Not available

2

Cub Cadet BS-224061

Washer, Spring

$

$

Not available

3

Cub Cadet BS-93805

Screw, Sems
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-93535

Screw, Sems

$

$

Not available

5

Cub Cadet BS-398333

Housing, Blower

$

$

Currently unavailable

6

Cub Cadet BS-93158

Screw, Blower Housing Mtg Sems

$

$

Not available

7

Cub Cadet BS-92284

Nut, Hex
(Superseded to 712-3056)

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet BS-394805

Motor, Starting
(Superseded to BS-497595)

$110.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-93984

Screw, Sems

$

$

Currently unavailable

10

Cub Cadet BS-222561

Cup, Screen Mounting

$

$

Not available

11

Cub Cadet BS-222562

Screen, Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-392134

Gear, Ring
(Superseded to BS-696537)

Note: (Includes Mtg Hardware)

$50.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-395405

Cover, Starter

Note: (Includes Mtg Screws)

$

$

Not available
