102 - Cub Cadet Garden Tractor Seat Parts Diagram

Garden Tractor

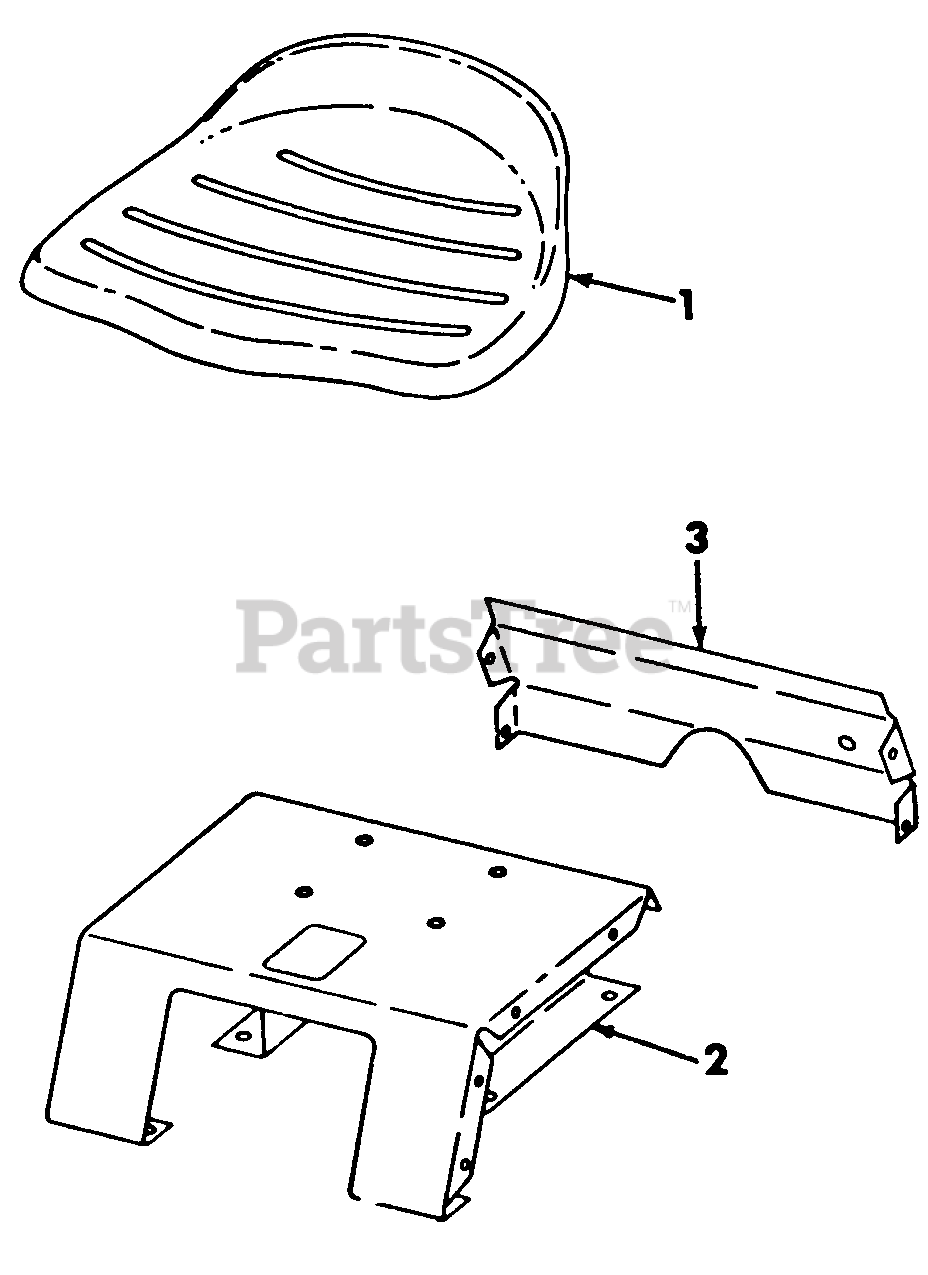

Seat Parts Diagram

  • Title
1

~NLA

Seat Assy

$

$

Not available

Cub Cadet 710-0118

Screw, 5/16-18 X 3/4 C-Z Hex Hd Cap
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0275

Washer, 11/32 X 11/16 X .065 C-Z

$6.99

$

Usually ships in 3-6 days

0

2

~NLA

Cover & Seat Support Assy, Rear Frame

$

$

Not available

Screw, 3/8-16 X 3/4 Hex Hd Cap *

$

$

Not available

3

~NLA

Panel Assy, Rear Frame Cover Back

$

$

Not available
