102 - Cub Cadet Garden Tractor Hood, Grille & Frame Parts Diagram

Garden Tractor

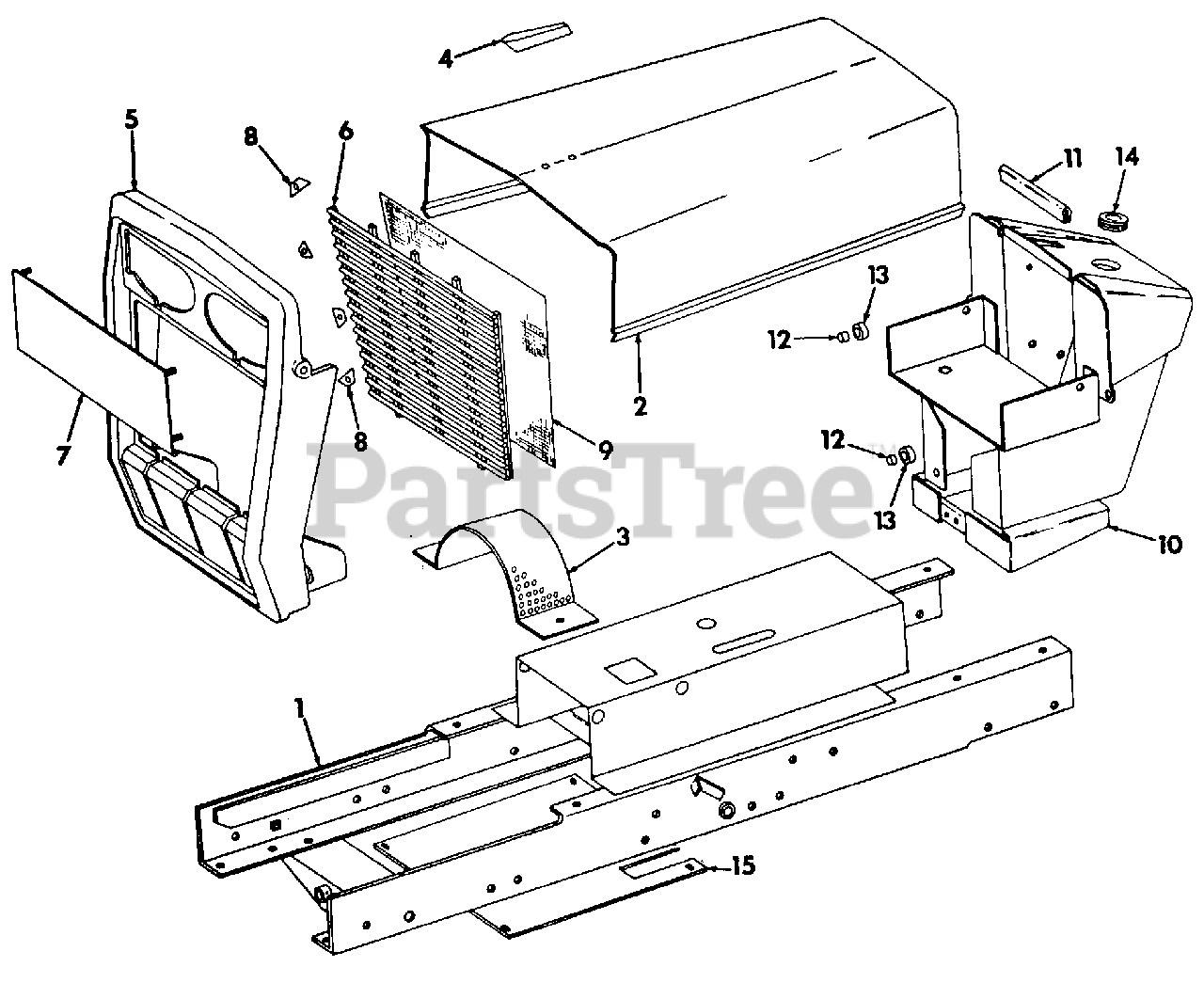

Hood, Grille & Frame Parts Diagram

  • Title

1

~NLA

Frame Assy

$

$

Not available

Screw, 3/8-16 X 11/16 Hex Hd Cap*

$

$

Not available

Screw, 3/8-16 X 1-1/4 Hex Hd Cap*

$

$

Not available

Screw, 3/8-16 X 2-1/2 Hex Hd Cap*

$

$

Not available

Washer, 3/8 Med Lock *

$

$

Not available

2

~NLA

Hood Assy

$

$

Not available

Screw, 3/8-16 X 1-1/8 C-Z Hex Hd Cap*

$

$

Not available

Cub Cadet 712-3000

Nut, 3/8-16 Gripco Center Lock

$4.49

$

In Stock, Qty 9

0

Cub Cadet 736-0140

Washer, 13/32 X 13/16 X .062

$7.49

$

In Stock, Qty 7

0

3

Cub Cadet IH-397457-R1

Shield, Clutch

Note: (Will work for IH-384909-R1)

$

$

Not available

Screw, 12-24 X 3/8 C-Z Hex Hd Cap*

$

$

Not available

Washer, No. 12 C-Z Ext Tooth Lock*

$

$

Not available

4

~NLA

Product Graphic, Hood Ornament

$

$

Not available

Cub Cadet IH-423324

Screw w/Ext Tooth Lock Washer, 10-24 X 7/16 Hex Hd Mach

$

$

Currently unavailable

5

~NLA

Housing, Grille

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 710-0514

Screw, 3/8-16 X 1 C-Z Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0520

Screw, 3/8-16 X 1-1/2 C-Z Hex Hd Cap

$4.49

$

In Stock, Qty 7

0

6

~NLA

Grille

$

$

Not available

7

~NLA

Strip Assy, Grille Panel

$

$

Not available

Cub Cadet 712-0349

Nut, 10-32 Hex Mach Screw

$4.99

$

In Stock, Qty 5

0

8

Cub Cadet IH-384898-R1

Strip, Grille Panel Clamp

$

$

Not available

9

~NLA

Screen, Grille

$

$

Not available

10

~NLA

Pedestal Assy

$

$

Not available

Cub Cadet 710-3000

Screw, 3/8-16 X 3/4 C-Z Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet IH-392622-R1

Bumper, Hood
(Superseded to 731-0511-12)

$22.99

$

Usually ships in 3-6 days

0

12

Cub Cadet IH-384906-R1

Spacer, Hood Roller Lock

$

$

Not available

13

Cub Cadet IH-393859-R2

Roller, Hood Lock (Rubber)

$

$

Currently unavailable

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Nut, 1/4-20 Stover Hex Lock *

$

$

Not available

Cub Cadet 736-3020

Washer, 17/64 X 5/8 X .036 C-Z

$6.99

$

In Stock, Qty 9

0

14

Cub Cadet IH-384908-R1

Grommet, Instrument Panel

$

$

Not available

15

~NLA

Sheet, Bottom Clutch Shield

$

$

Not available

Cub Cadet IH-172415

Screw, 12-24 X 1/2 C-Z Hex Hd Tap
(Superseded to 710-1189)

$

$

Not available

Washer, 1/2 C-Z Ext Tooth Lock*

$

$

Not available
