102 - Cub Cadet Garden Tractor Engine Controls & Instrument Panel Parts Diagram

Garden Tractor

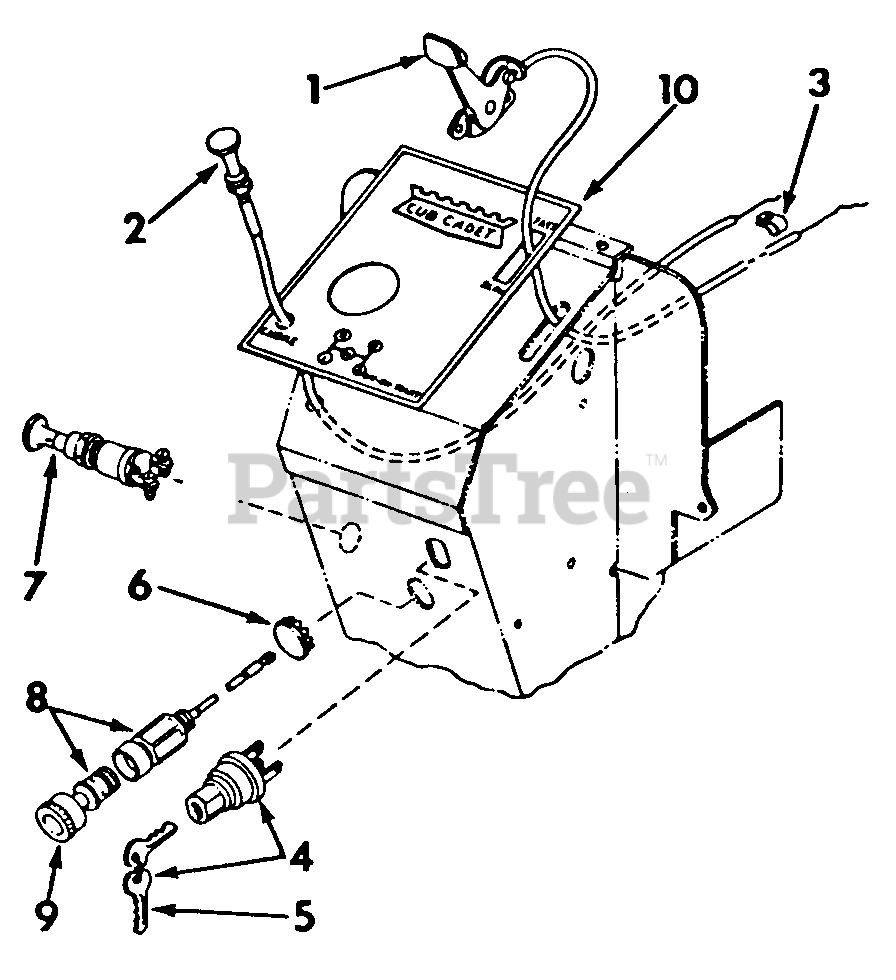

Engine Controls & Instrument Panel Parts Diagram

  • Title

1

Cub Cadet IH-384883-R92

Lever & Cable Assy, Throttle
(Superseded to IH-384883-R93)

$80.99

$

In Stock, Qty 7

0

Cub Cadet IH-443874

Screw, 10-24 X 1/2 C-Z Hex Hd Mach

$

$

Not available

Cub Cadet 736-0722

Washer, No. 10 C-Z Med Lock

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet BS-231082

Nut, 10-24 C-Z Hex Mach

$

$

Not available

2

Cub Cadet IH-384884-R91

Lever & Cable Assy, Choke
(Superseded to IH-384884-R92)

$

$

Not available

Screw, 10-24 X 1/2 C-Z Slt Rd Hd Mach*

$

$

Not available

Cub Cadet 736-0722

Washer, No. 10 C-Z Med Lock

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet BS-231082

Nut, 10-24 C-Z Hex Mach

$

$

Not available

3

Cub Cadet IH-376298-R1

Clip, Throttle Cable Retainer
(Superseded to KH-210149)

$

$

Not available

Screw, 8-32 X 1/2 C-Z Cr Rec Pan Hd Mach*

$

$

Not available

Cub Cadet 712-0142

Nut, 8-32 C-Z Hex Mach

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-121841

Washer, 8 C-Z Med Lock

$

$

Not available

4

Cub Cadet IH-60736-C2

Switch Assy, Ignition
(Superseded to IH-60736-C3)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet IH-365502-R1

Nut, Switch Mounting

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-375431-R1

Washer, Switch Mounting

$11.99

$

In Stock, only 1 left!

0

5

Cub Cadet IH-382458-R1

Key, Switch

$

$

Currently unavailable

6

Cub Cadet IH-432281

Plug, Button

Note: (29/32 tractors w/o cigarette lighter)

$

$

Currently unavailable

7

Cub Cadet IH-62801-DC

Switch Assy, Lighting
(Superseded to IH-62801-DCP)

Note: (Tractors w/electric lighting)

$

$

Not available

~NLA

Spacer, Lighting Switch

$

$

Not available

8

~NLA

Cigarette Lighter Parts Accessory (12 Volt)

$

$

Not available

9

Cub Cadet IH-378781-R91

Unit, Pop-Out

$

$

Currently unavailable

10

Product Graphic, Instrument Panel

Note: (Not serviced separately order package IH-393343-R91)

$

$

Not available
