1019-3 - Generac EXL 7,500 Watt Portable Generator Control Panel Parts Diagram

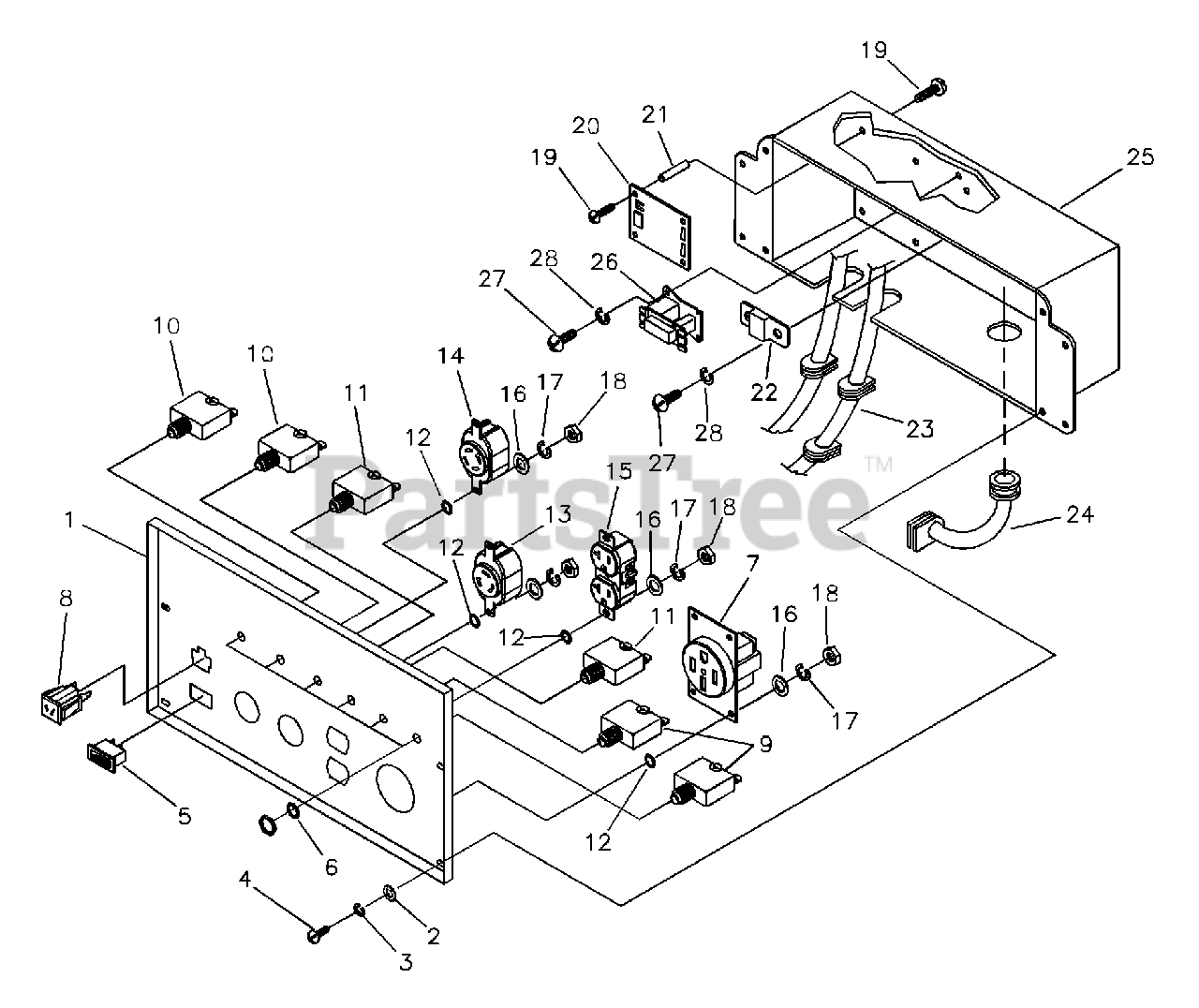

EXL 7,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton BB4461GS

PANEL, Control

$102.99

$

Usually ships in 2-12 days

0

2

WASHER, #10 M5 Flat

Note: (Purchase locally)

$

$

Not available

3

WASHER, Lock, M5

Note: (Purchase locally)

$

$

Not available

4

SCREW, M5-0.8 x 12 mm Philips Hd

Note: (Purchase locally)

$

$

Not available

5

Briggs & Stratton 82538GS

SWITCH, Idle Control

$6.99

$

Usually ships in 2-12 days

0

6

WASHER, 7/16" Internal Lock

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton B4262GS

OUTLET, 50A, 240V

$142.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90418GS

OUTLET, 10A, 12VDC

$

$

Not available

9

Briggs & Stratton 75207NGS

BREAKER, Circuit, 35A

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30A
(Superseded to 706178)

$34.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 6

0

12

WASHER, #8 Shakeproof

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 68868GS

OUTLET, 30A, 120V Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437GS

OUTLET, 30A, 120V/240V Locking

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 68759GS

OUTLET, 20A, 120V

$24.99

$

In Stock, only 4 left!

0

16

WASHER, M4 Flat

Note: (Purchase locally)

$

$

Not available

17

WASHER, Lock, #8 M4

Note: (Purchase locally)

$

$

Not available

18

NUT, M4 - 0.7 Hex

Note: (Purchase locally)

$

$

Not available

19

SCREW, #6-32 x 3/8" Self Tapping

Note: (Purchase locally)

$

$

Not available

20

Briggs & Stratton 83970GS

BOARD, System Control

$

$

Not available

21

Briggs & Stratton 64525GS

STANDOFF, 3/4" Hex

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87962GS

BREAKER, Circuit, 10A (auto), 12V

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335GS

ASSY,Wire Harness

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84134GS

GROMMET

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B92069GS

BOX, Control Panel

$192.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84028GS

TRANSFORMER, Idle Control

$47.99

$

In Stock, only 1 left!

0

27

SCREW, M3 - 0.5 x 10 mm

Note: (Purchase locally)

$

$

Not available

28

WASHER, Lock, M3

Note: (Purchase locally)

$

$

Not available
