1019-3 - Generac EXL 7,500 Watt Portable Generator Alternator Parts Diagram

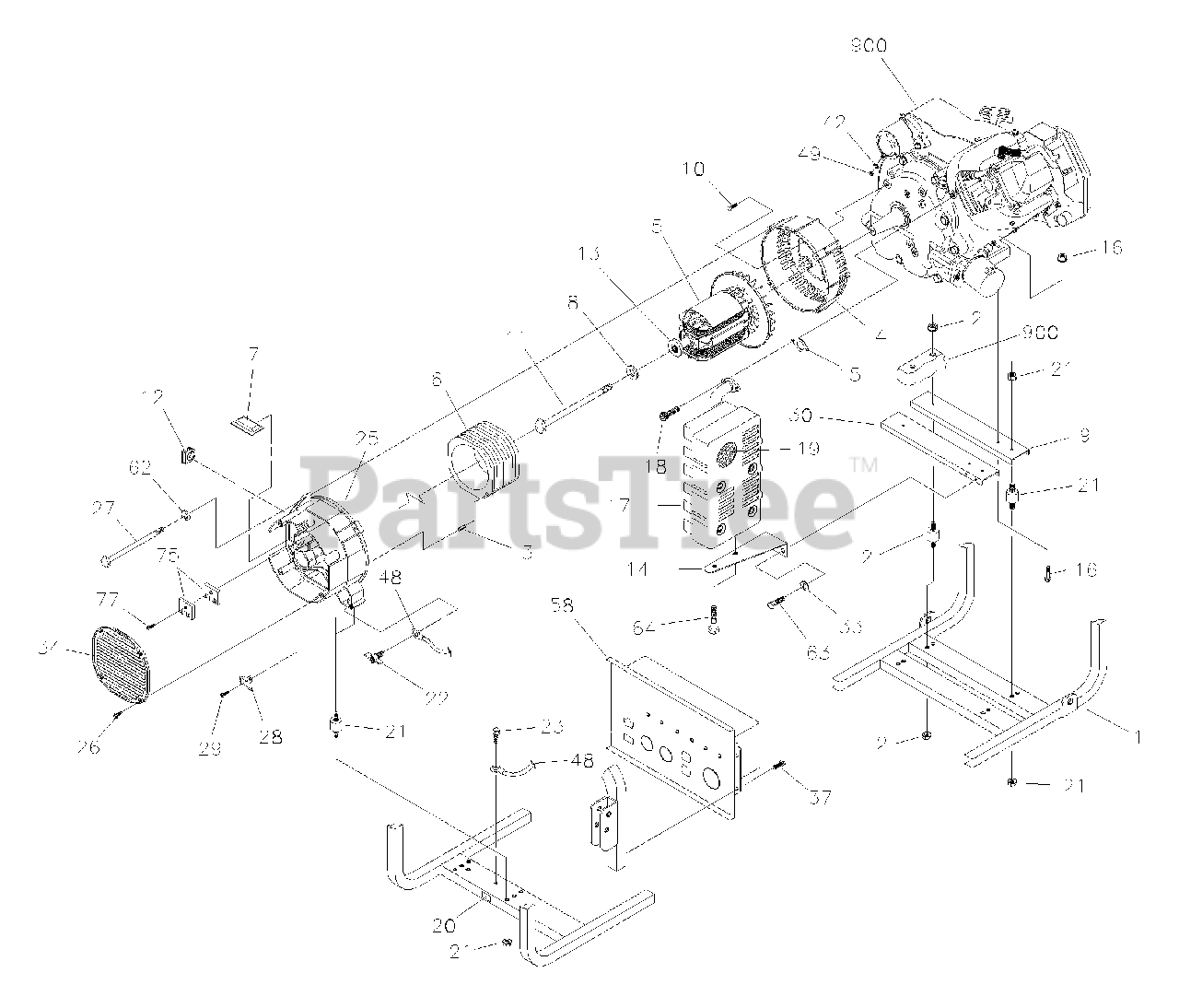

EXL 7,500 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton M197022GS

CRADLE, Red

$

$

Not available

2

Briggs & Stratton 194219GS

KIT, Mount,Vibration

$16.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 81917GS

PIN, Roll 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247GS

HOUSING, Engine Adapter

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1342GGS

ASSY, Rotor

$521.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1897AGS

ASSY, Stator

$969.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 84132GS

ASSY, Power Regulator

$126.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, Special Flat - M8

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton M92531GS

SUPPORT, Engine

$19.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307GS

HHMS, 5/16-24 x 3/4" Lg. SEMS

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 47481GS

HHCS, 5/16-24 x 10-5/8 Lg.

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92532GS

BRACKET, Muffler

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 90239GS

GASKET, Muffler

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 195078GS

KIT, Engine Mounting Hardware

$11.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton A7433GS

MUFFLER

$

$

Not available

18

SCREW, M8 - 1.25 x 20

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrestor

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194218GS

KIT, Mount,Vibration

$16.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10 Lg.

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66449LGS

BOLT, Stator M6-1 x 190mm

$30.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66386GS

ASSY, Brush Holder

$23.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 66849GS

TAPTITE, M5-0.8 x 16 Lg.

$4.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton M92731GS

SUPPORT, Engine & Muffler

$22.99

$

Usually ships in 2-12 days

0

33

WASHER, 5/16 - M8 Lock

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$

$

Not available

37

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8, Self Driller

$4.49

$

Usually ships in 2-12 days

0

42

WASHER, Shakeproof, Ext. #10

Note: (Purchase locally)

$

$

Not available

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton B4366GS

ASSY, Control Panel

Note: (see "Frame")

$434.99

$

Usually ships in 2-12 days

0

62

WASHER, 1/4 Lock

Note: (Purchase locally)

$

$

Not available

63

HHCS, 5/16 - 18 x 3/4

Note: (Purchase locally)

$

$

Not available

64

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

75

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

77

Briggs & Stratton 66849CGS

TAPTITE, M5-0.8 x 30 Lg.

$4.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4767GS

COVER, Unit

Note: Not Illustrated

$108.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 491055S

PLUG, Spark

$4.99

$

In Stock, Qty 20+

0

Briggs & Stratton 189713GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 73111GS

FILTER,Air

Note: Not Illustrated

$15.99

$

In Stock, only 1 left!

0

Briggs & Stratton 84882GS

WRENCH, Spark Plug

Note: Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

PLUG, 120/240V, 30A

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 70185GS

FILTER, Oil

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 188971GS

CORD, Extension
(Superseded to 191895DGS)

Note: Not Illustrated

$231.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A8927GS

MANUAL, Engine

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

CHARGER, Battery Float
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, Qty 5

0

Briggs & Stratton 199384GS

DECAL, Family, CA EVP

Note: Not Illustrated

$7.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100523GS

PLUG, 120V/30A

Note: Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194033GS

KIT, Decals Service

Note: Not Illustrated

$49.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84883GS

Cord Wrap

Note: Optional Accessories Not Included

$29.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories Not Included

$3.49

$

In Stock, Qty 20+

0
