1019-1 - Generac EXL 7,500 Watt Portable Generator Main Unit Parts Diagram

EXL 7,500 Watt Portable Generator

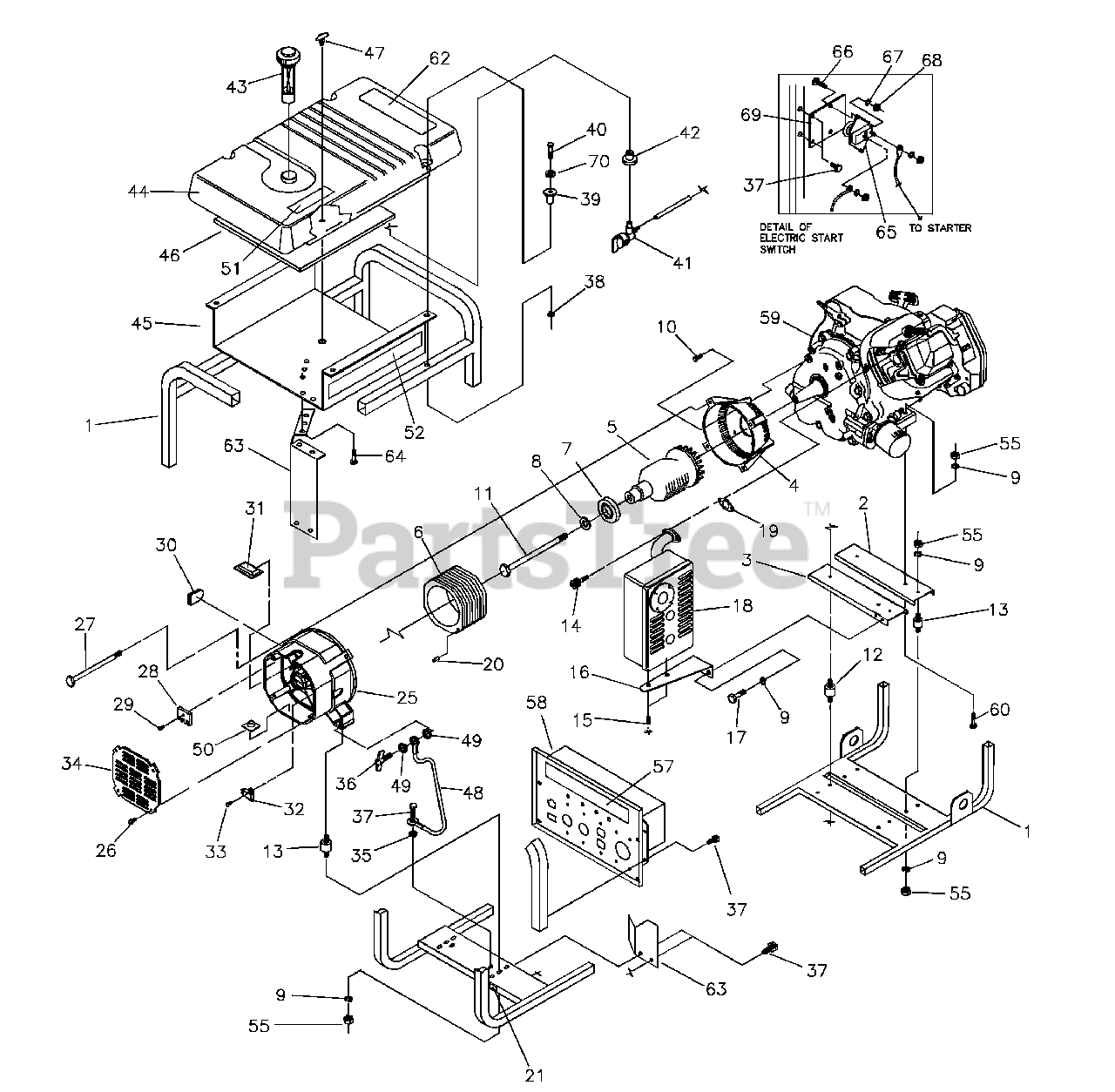

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A92432GS

CRADLE

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton A92531GS

SUPPORT, Engine

$21.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton A92731GS

SUPPORT, Engine & Muffler
(Superseded to M92731GS)

$22.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247GS

HOUSING, Engine Adapter

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1342GS

ASSEMBLY, Rotor
(Superseded to B1342GGS)

$521.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1897GS

ASSEMBLY, Stator

$

$

Currently unavailable

7

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451GS

WASHER, Special Flat - M8

$

$

Currently unavailable

9

Briggs & Stratton 22129GS

WASHER, Lock - M8

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307GS

HHMS, 5/16-24 x 3/4 SEMS

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 47481GS

HHCS, 5/16-24 x 10.625

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609GS

MOUNT, Vibration

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857GS

MOUNT, Vibration

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 40976GS

SCREW, M8 - 1.25 x 20

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66476GS

CAPSCREW, M6 - 1.0 x 12mm

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 92532GS

BRACKET, Muffler

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22142GS

SCREW, 5/16 - 18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

18

Briggs & Stratton 91153GS

MUFFLER
(Superseded to A7433GS)

$

$

Not available

19

Briggs & Stratton 90239GS

GASKET, Muffler

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 81917GS

PIN, Roll 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66825CGS

CARRIER, Rear Bearing
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66449LGS

BOLT, Stator M6-1 x 190mm

$30.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

29

Briggs & Stratton 66849CGS

TAPTITE, M5-0.8 x 30

$4.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84132GS

ASSEMBLY, Power Regulator

$126.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 66386GS

ASSEMBLY, Brush Holder

$23.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 66849GS

TAPTITE, M5-0.8 x 16

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B78388GS

COVER, Bearing Carrier

$46.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22769GS

WASHER, Shakeproof Int. #10

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494GS

SCREW, M6-1.0 x 16 Wing

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

HHCS, - #10 Self Driller

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 77395GS

NUT, Flange Lock - M6

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465GS

GROMMET, Tank

$3.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 57058GS

HHMS, M6-1.0 x 55

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 80270GS

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299GS

BUSHING, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton B4363GS

CAP, with Gauge, Fuel

$41.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton B1998GS

TANK, Fuel
(Superseded to 193500GS)

$

$

Not available

45

Briggs & Stratton B92039GS

SHIELD, Heat

$

$

Not available

46

Briggs & Stratton 92665GS

INSULATION, #2-1/4" Thick

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 26850GS

LW, EXT, Shakeproof M6

$2.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 57593GS

MOUNT, Cable Tie

$5.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton B4569GS

DECAL, Heat Shield

$27.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 25244GS

NUT, 5/16-18 Hex

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton B4569GS

DECAL, Control Panel

$27.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton B4366GS

ASSEMBLY, Control Box

$434.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

60

Briggs & Stratton 22531GS

HHCS, 5/16-18 x 1-3/4"
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton B96068GS

SHIELD, Heat
(Superseded to 192983GS)

$38.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

65

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

In Stock, only 2 left!

0

66

Briggs & Stratton 22287GS

SCREW, 1/4 - 20 x 3/4

$3.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 22097GS

LOCKWASHER, M6

$3.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 22127GS

NUT, 1/4 - 20 Hex

$1.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 78289GS

BRACKET, Starter Switch

$7.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 22473GS

WASHER, M6 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

Briggs & Stratton A96923GS

Tray, Battery

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 96924GS

J-Bolt, M8 - 1.25

Note: Not Illustrated

$7.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 22129GS

Lockwasher

Note: Not Illustrated

$2.99

$

In Stock, only 2 left!

0

Briggs & Stratton 45771GS

Hex nut M8

Note: Not Illustrated

$6.49

$

In Stock, only 2 left!

0

Briggs & Stratton 22145GS

Flat Washer

Note: Not Illustrated

$2.99

$

In Stock, only 1 left!

0

Briggs & Stratton 15453621GS

Cable, Positive Battery

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 15553621GS

Cable, Negative Battery

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 37806GS

120V 30 A plug
(Superseded to 100523GS)

Note: Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

120/240V 30 A plug

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

Cable, Battery Charge

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A96925GS

Bracket, Tie Down
(Superseded to M96925GS)

Note: Not Illustrated

$

$

Not available

Briggs & Stratton B4594GS

Manual, owner's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 72347GS

Spark Plug
(Superseded to 491055S)

Note: Not Illustrated

$4.99

$

In Stock, Qty 20+

0

Briggs & Stratton 73111GS

Air Cleaner Element

Note: Not Illustrated

$15.99

$

In Stock, only 1 left!

0

Briggs & Stratton 84882GS

Spark Plug Wrench

Note: Not Illustrated

$9.99

$

Usually ships in 2-12 days

0
