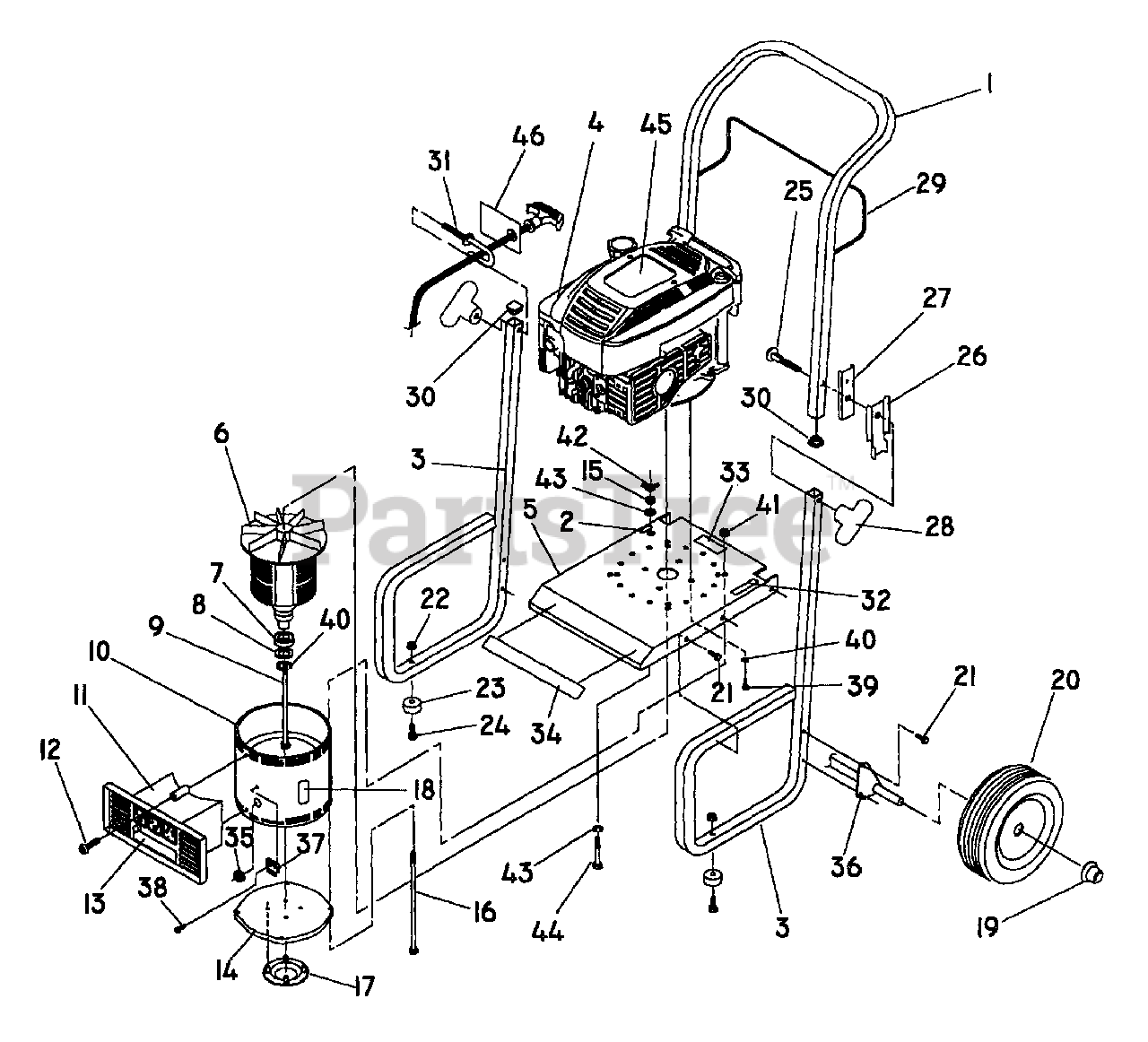

1016-0 - Generac MEGA 2,500 Watt Portable Generator Generator Parts Diagram

MEGA 2,500 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 99685

HANDLE
(Superseded to 99685GS)

$

$

Not available

2

Briggs & Stratton 67210A

DECAL, Ground
(Superseded to 67210AGS)

$

$

Not available

3

Briggs & Stratton 99681

FRAME
(Superseded to 99681GS)

$

$

Not available

4

Briggs & Stratton B1936

ENGINE, 5.5 h.p. - VS BRIGGS

$

$

Currently unavailable

5

Briggs & Stratton 99684

PLATE, Base

$

$

Not available

6

Briggs & Stratton 99687J

ASSEMBLY, Rotor

$

$

Not available

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

WASHER, Flat Special

$

$

Currently unavailable

9

Briggs & Stratton 99849

HHCS, 5/16-24 x 5"
(Superseded to 99849GS)

$

$

Not available

10

Briggs & Stratton 99688J

ASSEMBLY, Stator

$

$

Not available

11

Briggs & Stratton 99884

ASSEMBLY, Control Panel
(Superseded to 99884GS)

$

$

Not available

12

Briggs & Stratton 99896

PPHMS, #10 x 1-1/4 Self Drill
(Superseded to 99896GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B1308

DECAL, Control Panel

$

$

Not available

14

Briggs & Stratton 99686

PLATE, RBC End Stator
(Superseded to 99686GS)

$

$

Not available

15

Briggs & Stratton 49813

NUT, M6-1.0 Hex
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66449L

BOLT, Stator
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99850

COVER, Bearing

$

$

Not available

18

Briggs & Stratton 78817

DECAL, Data Sheet (back side)
(Superseded to 78817GS)

$

$

Not available

19

Briggs & Stratton 75402

PUSHNUT, 1/2" Dia
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B1760

ASSEMBLY, 10" Wheel & Tire
(Superseded to B1760GS)

$81.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 86292

HHCS, #10-16 x 3/4" Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 52858

NUT, M8- 1.25 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 87841

MOUNT, Vibration
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 39414

HHCS, M8 - 1.0 x 35
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B1343

BOLT, 1/4 - 20 x 2" Lg. Carriage
(Superseded to B1343GS)

$

$

Not available

26

Briggs & Stratton 97082

CLIP, Handle
(Superseded to 97082GS)

$5.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 99368

PLATE, SS Anti-Scratch
(Superseded to 99368GS)

$

$

Not available

28

Briggs & Stratton B1337

KNOB, Handle
(Superseded to B1337GS)

$7.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 21724

HOLDER, Ext. Cord

$

$

Not available

30

Briggs & Stratton 81895

CAP, Plug 3/4" Square
(Superseded to 81895GS)

$

$

Not available

31

Briggs & Stratton 97998

EYE BOLT, Square Neck
(Superseded to 97998GS)

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 20566

DECAL, 1-800 Number
(Superseded to 20566GS)

$

$

Not available

33

Briggs & Stratton 93639

DECAL, Danger Instructions

$

$

Not available

34

Briggs & Stratton 20024

DECAL, Start Instructions
(Superseded to 20024GS)

$

$

Not available

35

Briggs & Stratton 89685

GROMMET, Control Box
(Superseded to 89685GS)

$

$

Not available

36

Briggs & Stratton B1769

ASSEMBLY, Axle
(Superseded to B1769GS)

$

$

Not available

37

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

38

Briggs & Stratton 66849A

SCREW, M5 - 0.8 x 20 Taptite
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 86307

HHCS, 5/16-24 x 3/4"
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

40

Briggs & Stratton 22129

WASHER, 5/16 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

41

Briggs & Stratton 77395

NUT, M6 Flange Lock
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 87680

NUT, M6 - 10 Wing
(Superseded to 87680GS)

$7.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 26850

WASHER, M6 - 1/4 Shakeproof

$

$

Not available

44

Briggs & Stratton 40945

SHCS, M6 - 1.0 x 20
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

45

Briggs & Stratton 81905

DECAL, Mega 2500

$

$

Currently unavailable

46

Briggs & Stratton 70453

TAG, Oil Fill
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0
