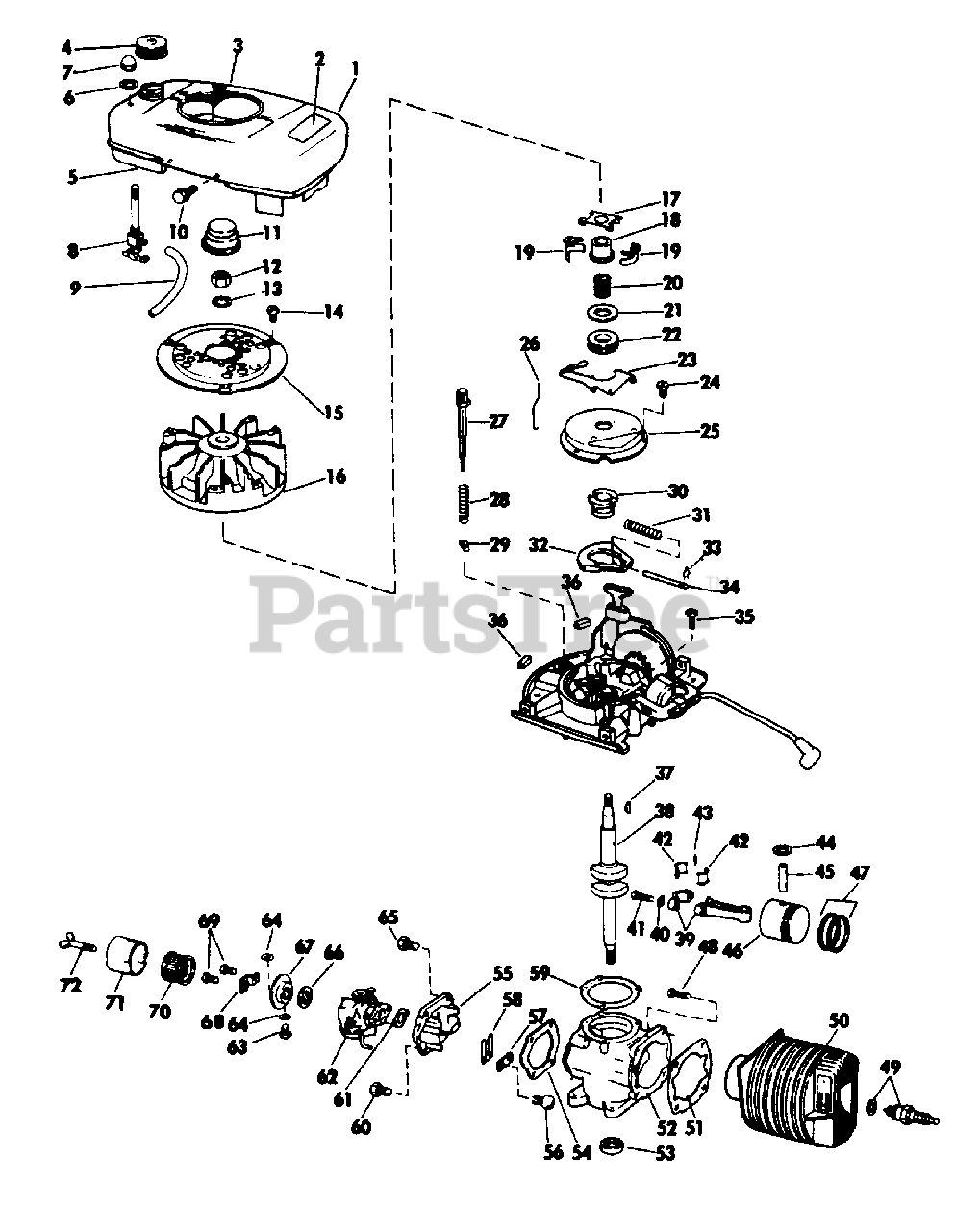

1015 - Lawn-Boy 9" Edger (SN: 100000001 - 199999999) (1971) MODEL D-462 ENGINE PARTS LIST MODELS USED ON: 1015 Parts Diagram

9" Edger

MODEL D-462 ENGINE PARTS LIST MODELS USED ON: 1015 Parts Diagram

  • Title

+

Lawn-Boy 678127

Shroud & Gas Tank Assembly

$

$

Currently unavailable

+

Lawn-Boy 678521

Governor Assembly

$

$

Not available

+

Lawn-Boy 679155

Piston & Connecting Rod Assy.
(Superseded to 682864)

$

$

Not available

1

Lawn-Boy 606861

Decal-"LAWN-BOY"

$

$

Not available

2

Lawn-Boy 606830

Decal-Instruction

$

$

Not available

3

Lawn-Boy 678136

Shroud & Shield Assembly

$

$

Not available

4

Lawn-Boy 678699

Cap & Gasket Assembly
(Superseded to 681446)

$37.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 677325

Gas Tank Assembly

$

$

Not available

6

Lawn-Boy 303952

Lockwasher

$

$

Not available

7

Lawn-Boy 604975

Acorn Nut

$4.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 677052

Shut-Off Valve

$23.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 604325

Gas Line

$

$

Not available

10

Lawn-Boy 602848

Screw-Shroud to Arm. Plate

$

$

Not available

11

Lawn-Boy 606832

Cap-Flywheel Screen

$

$

Not available

12

Lawn-Boy 130743

Nut-Flywheel

$3.49

$

In Stock, Qty 6

0

13

Lawn-Boy 304161

Lockwasher-Flywheel

$

$

Not available

14

Lawn-Boy 309072

Screw-Thd. Cutting

$

$

Not available

15

Lawn-Boy 605298

Screen-Flywheel

$

$

Currently unavailable

16

Lawn-Boy 678355

Flywheel Assembly

$

$

Not available

17

Lawn-Boy 602635

Yoke-Governor

$

$

Not available

18

Lawn-Boy 602634

Collar-Governor

$24.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 602636

Weight-Governor

$

$

Not available

20

Lawn-Boy 602633

Spring-Governor

$

$

Not available

21

Lawn-Boy 604413

Thrust Washer

$

$

Not available

22

Lawn-Boy 604265

Collar-Thrust

$12.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 604266

Lever-Governor

$9.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 604344

Screw-Attaching Dust Cover

$

$

Not available

25

Lawn-Boy 604264

Dust Cover

$

$

Not available

26

Lawn-Boy 604297

Rod-Governor

$22.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 606865

Bar-Shut-Off & Primer

$

$

Not available

28

Lawn-Boy 604248

Spring-Shut-Off Switch

$5.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 604249

Blade-Switch

$

$

Not available

30

Lawn-Boy 604276

Cam-Spark Advance

$

$

Not available

31

Lawn-Boy 604267

Spring-Spark Advance

$4.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 604263

Flyweight-Spark Advance

$

$

Not available

33

Lawn-Boy 604314

Retainer-Spring

$3.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 604277

Pin-Spark Advance

$

$

Not available

35

Lawn-Boy 604742

Screw-Arm. Plate to Crankcase

$

$

Not available

36

Lawn-Boy 602816

Pad-Rubber, Armature Plate

$

$

Not available

37

Lawn-Boy 120395

Key-Crankshaft
(Superseded to 607199)

$5.49

$

In Stock, Qty 9

0

38

Lawn-Boy 604316

Crankshaft

$

$

Not available

39

Lawn-Boy 679156

Connecting Rod Assembly
(Superseded to 682865)

$

$

Not available

40

Lawn-Boy 307558

Lockplate-Conn. Rod Scr.
(Superseded to 307578)

$

$

Not available

41

Lawn-Boy 603976

Scr.-Connecting Rod

$

$

Not available

42

Lawn-Boy 677982

Liners-Connecting Rod

$46.99

$

In Stock, only 2 left!

0

43

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

44

Lawn-Boy 303712

Retaining Ring

$3.49

$

In Stock, Qty 11

0

45

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

$11.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 606607

Piston

$

$

Not available

47

Lawn-Boy 679252

Ring Assembly-Piston

$

$

Not available

48

Lawn-Boy 602657

Screw-Mch., Cylinder to C'case

$

$

Not available

49

Lawn-Boy 605885

Spark Plug & Gasket
(Superseded to 614009)

$5.49

$

In Stock, only 3 left!

0

50

Lawn-Boy 678133

Cylinder & Sleeve Assembly
(Superseded to 678106)

$

$

Not available

51

Lawn-Boy 604116

Gasket-Cylinder to Crankcase

$3.49

$

Usually ships in 3-6 days

0

52

Lawn-Boy 679687

Crankcase & Seal Assembly

$

$

Not available

53

Lawn-Boy 605020

Oil Seal
(Superseded to 611396)

$6.99

$

In Stock, only 2 left!

0

54

Lawn-Boy 604000

Gasket-Reed Plate
(Superseded to 608362)

$4.49

$

In Stock, Qty 8

0

55

Lawn-Boy 486718

Reed Plate Assembly

$

$

Not available

56

Lawn-Boy 303761

Screw-Machine
(Superseded to 612872)

$2.49

$

In Stock, Qty 5

0

57

Lawn-Boy 602587

Plate-Back-Up

$3.49

$

Usually ships in 3-6 days

0

58

Lawn-Boy 602588

Reed

$

$

Not available

59

Lawn-Boy 602590

Gasket-C'case to Arm. Pl. .005 in.

$

$

Not available

59

Lawn-Boy 602763

Gasket-C'case to Arm. Pl. .010 in.

$2.49

$

In Stock, only 1 left!

0

60

Lawn-Boy 604857

Scr.-Hex Hd., Reed Pl. to C'case

$7.49

$

Usually ships in 3-6 days

0

61

Lawn-Boy 602052

Gasket-Carburetor

$3.99

$

In Stock, Qty 18

0

62

Lawn-Boy 678518

Carburetor Assembly

$

$

Not available

63

Lawn-Boy 603801

Fastener, Felt

$

$

Not available

64

Lawn-Boy 603800

Felt-Filter Drain

$

$

Not available

65

Lawn-Boy 602192

Scr.-Hex Hd., Reed Pl. to C'case

$

$

Not available

66

Lawn-Boy 605425

Gasket

$4.49

$

In Stock, only 1 left!

0

67

Lawn-Boy 603784

Cup-Air Filter

$

$

Not available

68

Lawn-Boy 603785

Bracket Air Filter

$

$

Not available

69

Lawn-Boy 602063

Screw-Air Filter

$

$

Not available

70

Lawn-Boy 603787

Cartridge-Air Filter

$

$

Not available

71

Lawn-Boy 603786

Cover-Air Filter

$

$

Not available

72

Lawn-Boy 603783

Screw-Thumb

$

$

Not available
