1015 - Lawn-Boy 9" Edger (SN: 100000001 - 199999999) (1971) MODEL 1015 EDGER TRIMMER PARTS LIST Parts Diagram

9" Edger

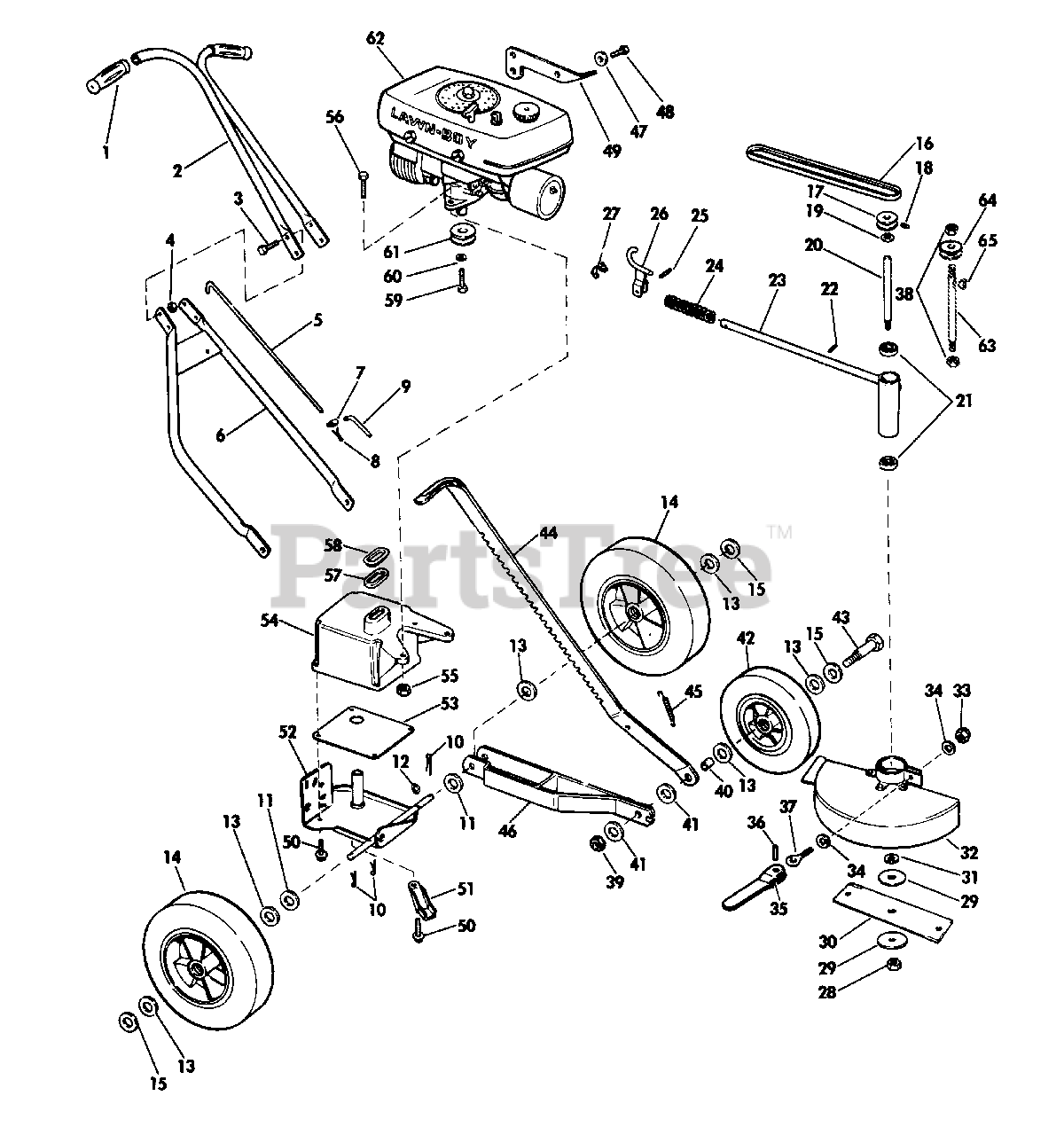

MODEL 1015 EDGER TRIMMER PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 604139

Grip-Handle, Blue

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$29.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 677354

Handle Assembly, Top

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

3

Lawn-Boy 602480

Screw-Handle Truss Head

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

4

Lawn-Boy 603477

Nut-Nylok Stop

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

5

Lawn-Boy 603698

Rod-Handle Adjusting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

6

Lawn-Boy 677809

Handle Assembly, Bottom

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

7

Lawn-Boy 603680

Clamp-Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

8

Lawn-Boy 603036

Pin-Cotter

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

9

Lawn-Boy 603699

Lever-Rod Clamp

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

10

Lawn-Boy 603036

Pin-Cotter

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

11

Lawn-Boy 309076

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

12

Lawn-Boy 603931

Grip Ring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

13

Lawn-Boy 605255

Washer, Felt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$1.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 679292

Wheel and Tire Assembly 8"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Currently unavailable

15

Lawn-Boy 605256

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 603682

Belt-4L-240

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

17

Lawn-Boy 603681

Pulley-Driven

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

18

Lawn-Boy 603339

Screw-Socket Set

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

19

Lawn-Boy 603931

Grip Ring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

20

Lawn-Boy 603685

Shaft-Spindle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

21

Lawn-Boy 603686

Bearing-Seal Ball 9/16"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

22

Lawn-Boy 603394

Pin-Groove

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

23

Lawn-Boy 677803

Spindle Housing and Pivot Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

24

Lawn-Boy 603689

Spring-Comp.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

25

Lawn-Boy 603694

Pin-Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

26

Lawn-Boy 677808

Locking Pin and Lever Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

27

Lawn-Boy 603695

Spring-Locking Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

28

Lawn-Boy 603948

Nut-Stop

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

29

Lawn-Boy 602145

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

30

Lawn-Boy 603687

Blade-9"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Currently unavailable

31

Lawn-Boy 303259

Washer, Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.49

$

In Stock, Qty 8

0

32

Lawn-Boy 677850

Guard and Clamp Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

33

Lawn-Boy 603796

Nut Lock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

34

Lawn-Boy 120196

Washer-Plain

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

35

Lawn-Boy 678828

Lever Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

36

Lawn-Boy 314469

Roll Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Currently unavailable

37

Lawn-Boy 606014

Eye Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

38

Lawn-Boy 603948

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. Later Production Models

$

$

Not available

39

Lawn-Boy 603773

Nut, Wheel, Shoulder Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, only 1 left!

0

40

Lawn-Boy 604009

Sleeve, Wheel Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

41

Lawn-Boy 602627

Washer, Wheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

42

Lawn-Boy 679291

Wheel and Tire Assembly 6"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

43

Lawn-Boy 602680

Bolt, Wheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

44

Lawn-Boy 606356

Lever, Wheel Adjusting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

45

Lawn-Boy 602937

Spring, Wheel Height Adj.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

46

Lawn-Boy 679015

Wheel Bracket and Spacer Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

47

Lawn-Boy 302474

Washer, Bracket to Shroud

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

48

Lawn-Boy 552062

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Currently unavailable

49

Lawn-Boy 606355

Bracket, Wheel Height Adj.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

50

Lawn-Boy 603476

Screw-Thread Cutting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

51

Lawn-Boy 603970

Deflector, Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

52

Lawn-Boy 677807

Axle and Muffler Plate Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

53

Lawn-Boy 603696

Gasket-Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

54

Lawn-Boy 603697

Muffler-Edger

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

55

Lawn-Boy 602830

Nut-Nylok

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

56

Lawn-Boy 603014

Screw-Hex Hd. Machine

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

57

Lawn-Boy 604624

Gasket-Exhaust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$11.99

$

In Stock, only 1 left!

0

58

Lawn-Boy 602717

Sleeve-Exhaust Gasket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 16

0

59

Lawn-Boy 550000

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

60

Lawn-Boy 120177

Lockwasher

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

61

Lawn-Boy 603688

Pulley-Drive

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

62

Lawn-Boy 679424

Engine, Model D-462

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

63

Lawn-Boy 607143

Shaft-Spindle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. Later Production Models

$

$

Not available

64

Lawn-Boy 607142

Pulley-Driven

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. Later Production Models

$

$

Not available

65

Lawn-Boy 306399

Key-Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. Later Production Models

$

$

Not available
