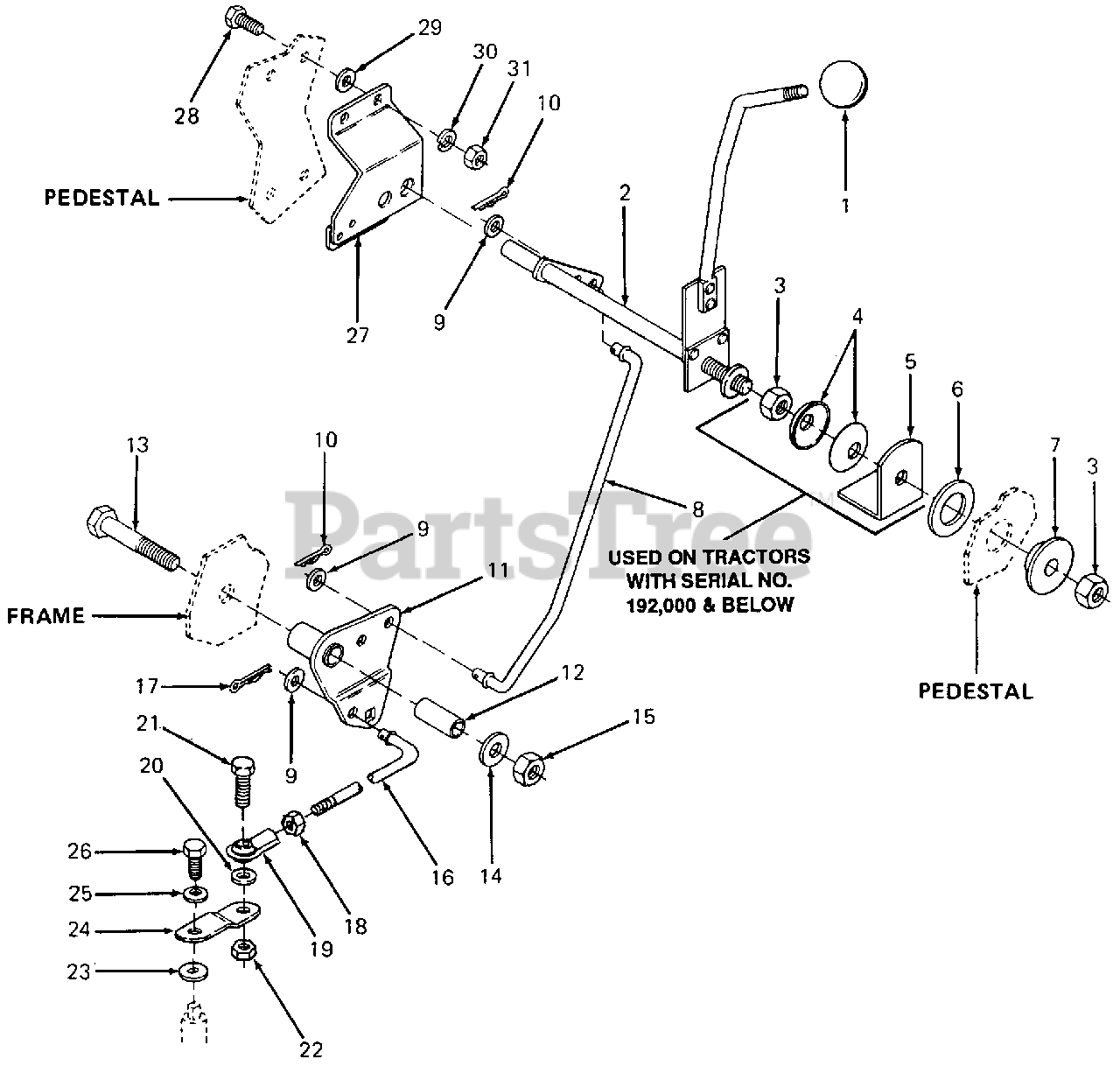

1015 (138-200-100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) Transmission Controls Parts Diagram

Lawn Tractor

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 720-3000

Knob, Control
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

2

Cub Cadet 703-1544A

Shifter Assy

Note: [Replaces 703-1544 by omitting Ref No. 3 (Qty 1), 4 (Qty 2) & 5]

$167.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-3059

Nut, Hex Top Lock, 1/2-20

Note: (Used on Tractors with Serial No. 192,000 and below)

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-3022

Washer, Bell
(Superseded to 936-3022)

Note: (Used on Tractors with Serial No. 192,000 and below)

$5.49

$

In Stock, only 2 left!

0

5

Cub Cadet 703-1705

Bracket, Friction

Note: (Used on Tractors with Serial No. 192,000 and below)

$

$

Not available

6

Cub Cadet 723-3055

Washer, Friction
(Superseded to 923-3055)

$

$

Not available

7

Cub Cadet 748-3024

Spacer, Shoulder

$

$

Not available

8

Cub Cadet 747-3116

Rod, Shift

$

$

Not available

9

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X.063 Thk

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 714-0144

Pin, Cotter, 1/8 X 1.0 Lg

$

$

Not available

11

Cub Cadet 703-1541

Cam, Shift

$

$

Not available

12

Cub Cadet 750-0351

Sleeve, .380 X .623 X 1.555 Lg

$

$

Not available

13

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0267

Washer, Flat, .385 X .87 X 0.6 Thk HDN

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 9

0

16

Cub Cadet 747-3122

Rod, Shift

$

$

Not available

17

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

19

Cub Cadet 723-3016

Ball Joint
(Superseded to 923-3016)

$23.99

$

In Stock, only 2 left!

0

20

Cub Cadet 736-0140

Washer, Flat, .385 X .62 X .063 Thk

$7.49

$

In Stock, Qty 7

0

21

Cub Cadet 710-0152

Screw, Hex Cap, 3/8-24 X 1.0 Lg
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0262

Nut, Hex Center Lock Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 717-0234

Washer

$

$

Not available

24

Cub Cadet 703-1540

Bracket, Shifter

$

$

Not available

25

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0513

Screw, Hex Patch Lock, 1/4-28 X .62 Lg
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

27

Cub Cadet 703-1537

Bracket, Clutch Handle

$

$

Not available

28

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-3000

Washer, Flat, .281 X .75 X .105 Thk
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

30

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 19

0
