1014-0 - Generac 3,200 PSI Pressure Washer Pressure Washer Parts Diagram

3,200 PSI Pressure Washer

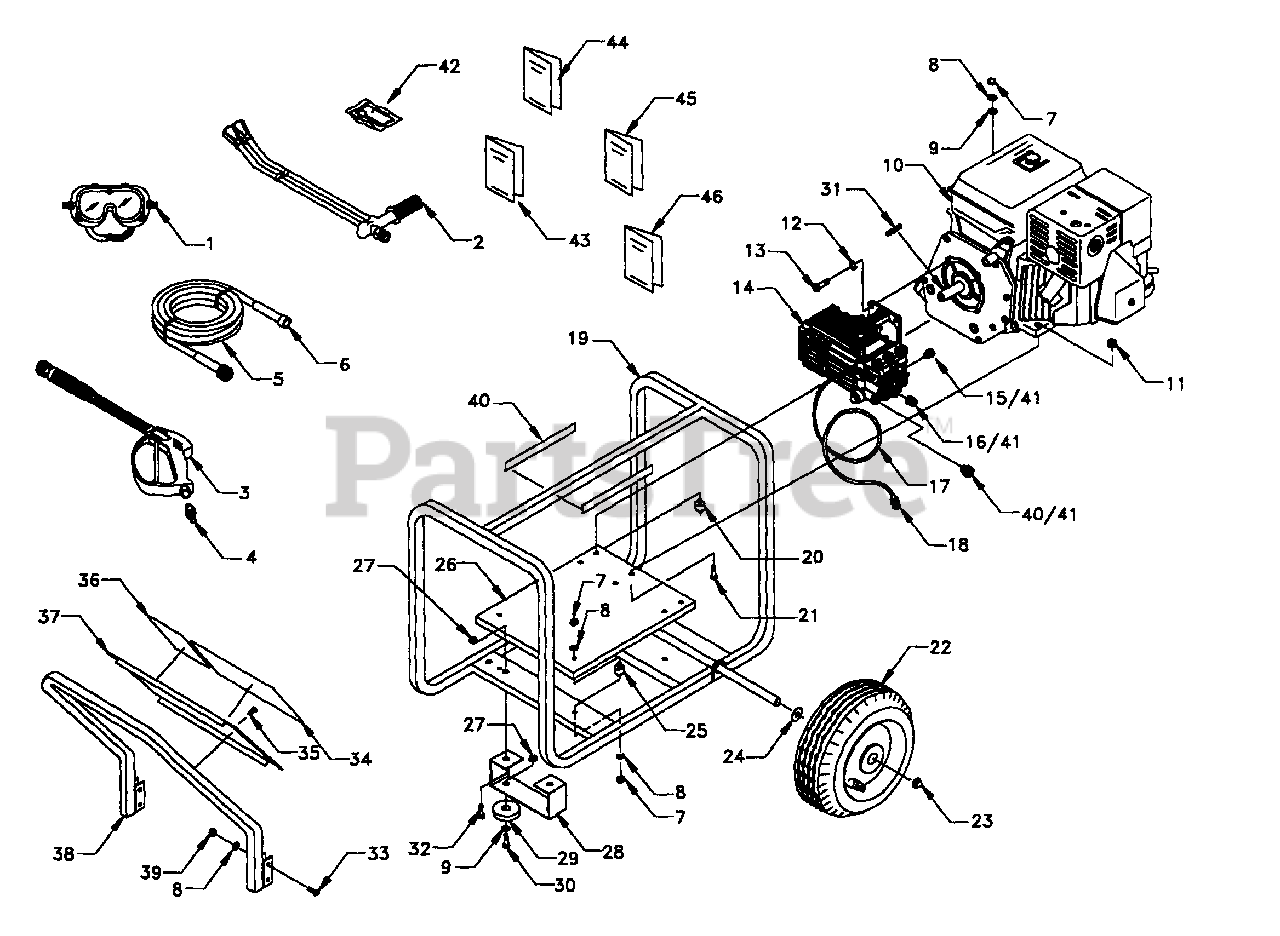

Pressure Washer Parts Diagram

  • Title
1

Briggs & Stratton 87815

Safety Goggles
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B2140E

Dual Wand Extension
(Superseded to B2140EGS)

$148.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B2500

Gun w/Molded Grip
(Superseded to B2500GS)

$198.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 95459

Quick Disconnect For Gun
(Superseded to 95459GS)

$9.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1411

Hose 3600 PSI

$

$

Currently unavailable

6

Briggs & Stratton 95458

Quick Disconnect For Hose

$

$

Not available

7

Briggs & Stratton 22259

Hex Nut 5/16-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

Lock Washer, 5/16"/M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 50190

Washer 10 GA
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

10

$

$

Currently unavailable

11

Briggs & Stratton 52859

Locking Nut M10
(Superseded to 52859GS)

$2.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22237

Lockwasher, 3/8"

$

$

Not available

13

Briggs & Stratton 23645

Bolt 3/8-1 1/4 LG
(Superseded to 23645GS)

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B1843

Pump, General

$

$

Not available

14

Briggs & Stratton B1410

Annovi, General

$

$

Not available

15

Briggs & Stratton B1554

Thermal Relief
(Superseded to 195016GS)

$25.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B1462

Adapter 3/8 NPT

$

$

Currently unavailable

17

Briggs & Stratton A1040C

Chemical Hose
(Superseded to A1040CGS)

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton A1041

Hose Filter
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B1442

Cradle 1014-0

$

$

Not available

20

Briggs & Stratton 92609

Vib Mount 1.5"
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 64416

Bolt M10 - 1.5 x 45mm Lg.
(Superseded to 64416GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 88521

Wheel 10"
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 75402

Pushnut .50
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

24

Briggs & Stratton 49808

Washer M12
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 82857

Vib Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

26

$

$

Not available

27

Briggs & Stratton 52858

Lock Nut M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton B1444

Cradle Support
(Superseded to B1444GS)

$12.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 27007

Vib Mount, Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

30

Briggs & Stratton 42909

Screw M8 - 1.25 x 30mm
(Superseded to 42909GS)

$

$

Not available

31

$

$

Not available

32

Briggs & Stratton 39253

Screw M8 - 1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

33

Briggs & Stratton 51731

Screw M8-1.25 x 50

$

$

Not available

34

$

$

Not available

35

Briggs & Stratton 86292

Self Drilling Screws
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton B1472

Starting Instructions Decal

$

$

Not available

37

Briggs & Stratton B1451

Billboard Panel

$

$

Not available

38

Briggs & Stratton B1545

Assembly, Handle

$

$

Currently unavailable

39

Briggs & Stratton 45771

Hex Nut M8-1.25

$

$

Not available

40

Briggs & Stratton 95320

Connector Garden Hose
(Superseded to 95320GS)

$42.99

$

Usually ships in 2-12 days

0

41

$

$

Currently unavailable

42

Briggs & Stratton B2508

Nozzle Cleaning Kit
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

43

$

$

Not available

44

Briggs & Stratton B2686

Unloader Manual

$

$

Not available

45

Briggs & Stratton B1464

Engine Manual
(Superseded to B1464GS)

$17.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B1405

Unit Manual
(Superseded to B1405GS)

$14.99

$

Usually ships in 2-12 days

0
