1013 - Lawn-Boy 9" Edger (SN: 800000001 - 899999999) (1968) Model D-430 Carburetor Parts List Used On Models7010, 3054 Parts Diagram

9" Edger

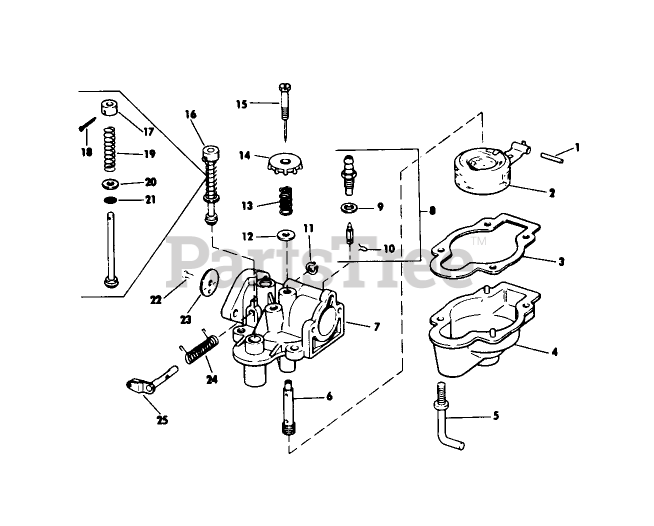

Model D-430 Carburetor Parts List Used On Models7010, 3054 Parts Diagram

  • Title

Lawn-Boy 678518

DISCONTINUED

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

1

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$5.99

$

In Stock, only 2 left!

0

1

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

Note: 678686 Carburetor Repair Kit

$5.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 678113

DISCONTINUED

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

3

Lawn-Boy 604283

GASKET S

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$6.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 604283

GASKET S

Note: 678686 Carburetor Repair Kit

$6.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 604232

DISCONTINUED

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

5

Lawn-Boy 604336

SCREW

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

6

Lawn-Boy 605140

See Supercession: 612214
(Superseded to 612214)

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$86.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 605140

See Supercession: 612214
(Superseded to 612214)

Note: 678686 Carburetor Repair Kit

$86.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 678500

Carburetor Body Assy.

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Currently unavailable

8

Lawn-Boy 678736

DISCONTINUED

Note: 678686 Carburetor Repair Kit

$

$

Not available

8

Lawn-Boy 678736

DISCONTINUED

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

9

Lawn-Boy 301996

WASHER

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$3.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 603145

See Supercession: 92-9697
(Superseded to 92-9697)

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$23.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 604286

RING GRIP S

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$3.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 306561

Washer

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Currently unavailable

13

Lawn-Boy 602293

Spring-Ndl. Adj.

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Currently unavailable

14

Lawn-Boy 602495

KNOB S

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$7.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 677039

NEEDLE AY. S

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

15

Lawn-Boy 677039

NEEDLE AY. S

Note: 678686 Carburetor Repair Kit

$

$

Not available

16

Lawn-Boy 678414

PRIMER AY S

Note: 678686 Carburetor Repair Kit

$74.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 678414

PRIMER AY S

Note: 678414 Primer Kit

$74.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 678414

PRIMER AY S

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$74.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 605031

DISCONTINUED

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

17

Lawn-Boy 605031

DISCONTINUED

Note: 678414 Primer Kit

$

$

Not available

18

Lawn-Boy 304637

DISCONTINUED

Note: 678414 Primer Kit

$

$

Not available

18

Lawn-Boy 304637

DISCONTINUED

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

19

Lawn-Boy 605209

Spring-Compression

Note: 678414 Primer Kit

$

$

Currently unavailable

19

Lawn-Boy 605209

Spring-Compression

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Currently unavailable

20

Lawn-Boy 604300

DISCONTINUED

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

20

Lawn-Boy 604300

DISCONTINUED

Note: 678414 Primer Kit

$

$

Not available

21

Lawn-Boy 302329

DISCONTINUED

Note: 678414 Primer Kit

$

$

Not available

21

Lawn-Boy 302329

DISCONTINUED

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

22

Lawn-Boy 605522

SCREW F

Note: 678686 Carburetor Repair Kit

$1.49

$

In Stock, only 1 left!

0

22

Lawn-Boy 605522

SCREW F

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$1.49

$

In Stock, only 1 left!

0

23

Lawn-Boy 604295

THROTTLE DISC S

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

24

Lawn-Boy 604296

DISCONTINUED

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available

24

Lawn-Boy 604296

DISCONTINUED

Note: 678686 Carburetor Repair Kit

$

$

Not available

25

Lawn-Boy 678119

THROTTLE LEVER S

Note: Note: Production Primer Assembly is not serviced. Replacement parts are supplied only for Service Assembly 678414.

$

$

Not available
