10122 - Lawn-Boy Walk-Behind Mower, Cordless (SN: 008900001 - 008999999) (1998) ELECTRICAL WIRE DIAGRAM AND SIDE DISCHARGE CHUTE Parts Diagram

Walk-Behind Mower, Cordless

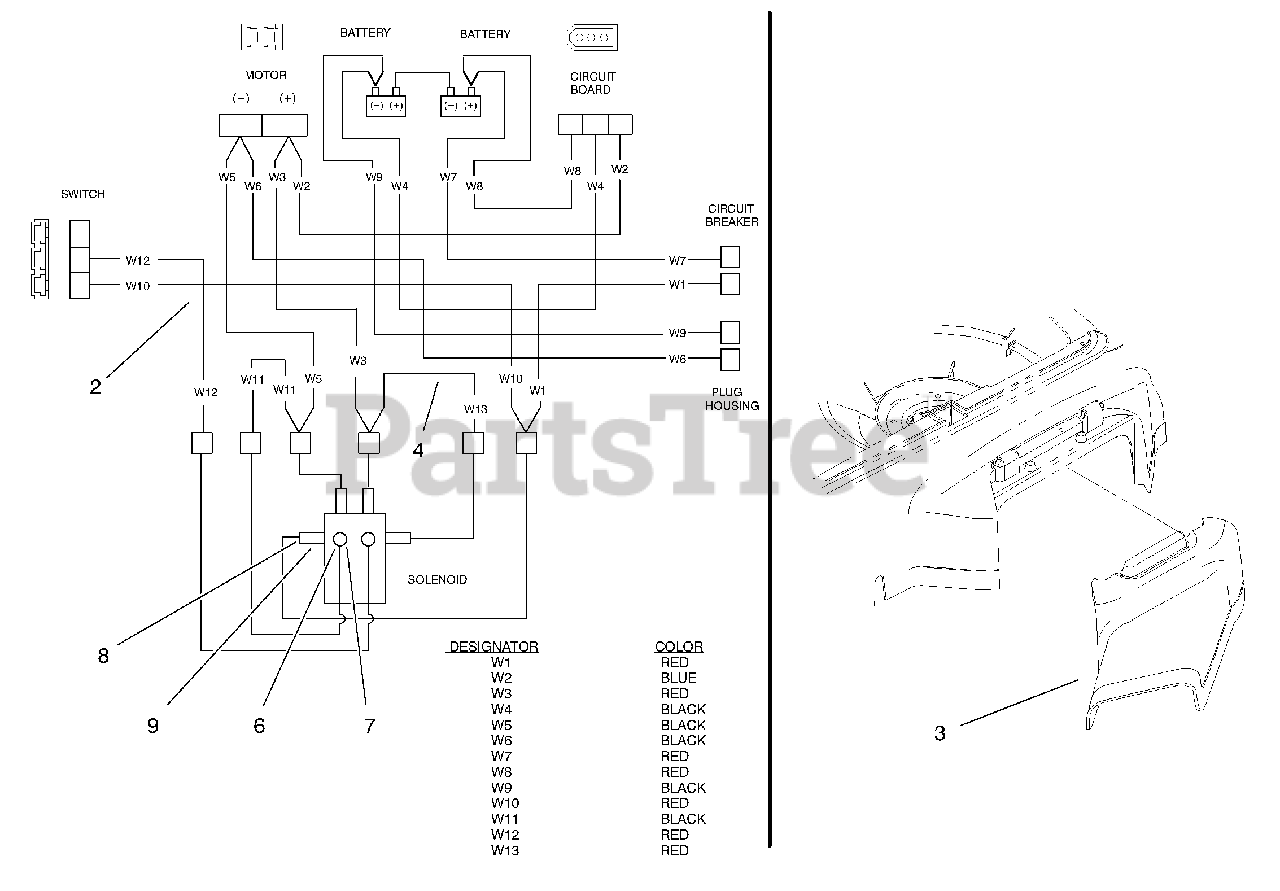

ELECTRICAL WIRE DIAGRAM AND SIDE DISCHARGE CHUTE Parts Diagram

  • Title
1

Lawn-Boy 95-5158

Decal-Positive

Note: Not illustrated.

$

$

Not available

2

Lawn-Boy 95-5048

Harness-Wire (Incl. W1-W12)

$

$

Not available

3

Lawn-Boy 93-3963

Chute-Side Discharge

$23.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 95-3254

Harness-Wire (Incl. W13)

$24.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 95-5159

Decal-Negative

Note: Not illustrated.

$

$

Not available

6

$

$

Not available

7

Lawn-Boy 3253-25

Washer-Lock

$

$

Not available

8

Lawn-Boy 3220-2

Nut-Jam

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 3253-4

Washer-Lock

$0.99

$

In Stock, Qty 20+

0
