10120 - Lawn-Boy Walk-Behind Mower, Cordless (SN: 006900001 - 006999999) (1996) HANDLE AND CONTROLS ASSEMBLY Parts Diagram

Walk-Behind Mower, Cordless

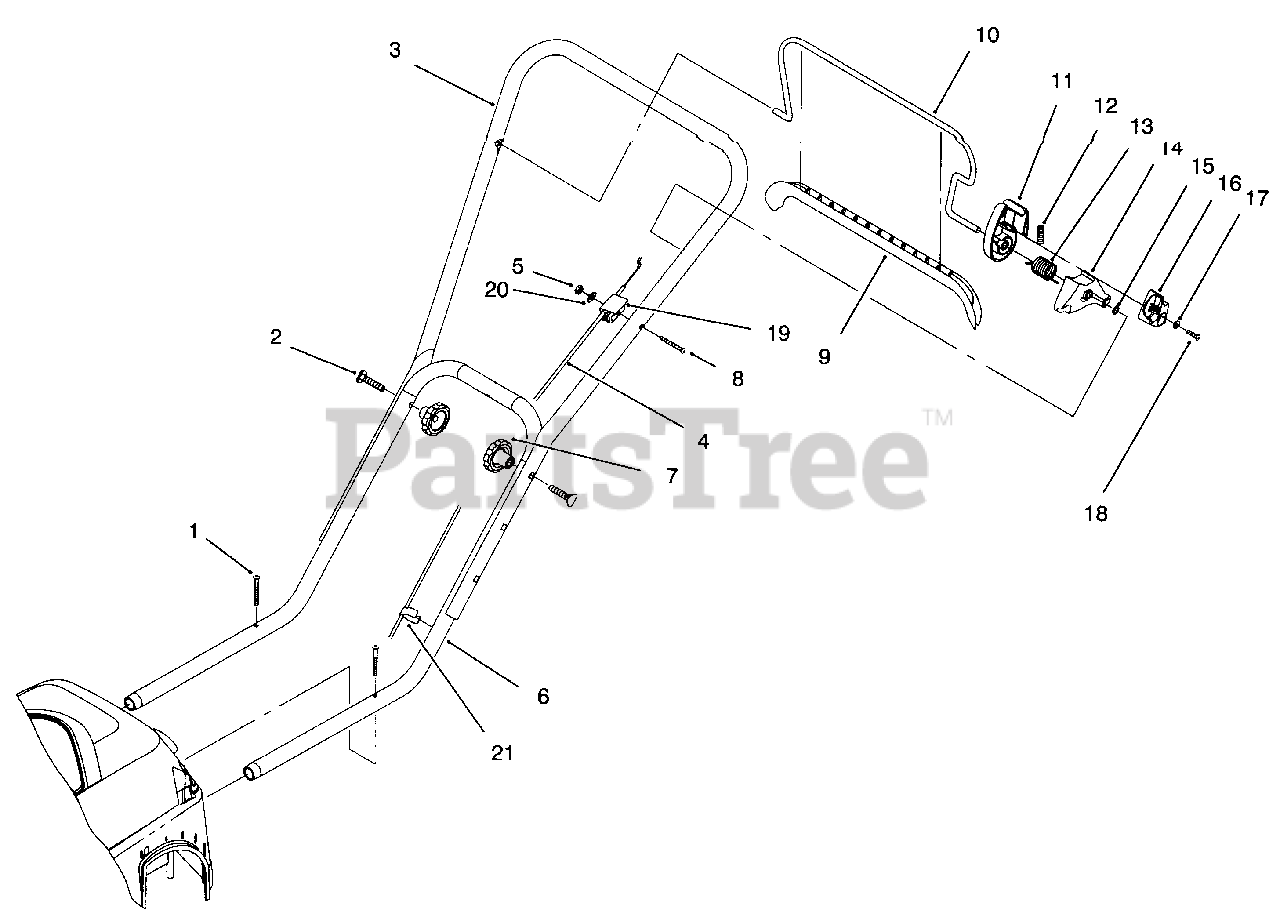

HANDLE AND CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-3986

Screw-PPH

$4.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-2260

Screw-Handle

$3.99

$

In Stock, Qty 11

0

3

Lawn-Boy 93-3971

Handle-Upper
(Superseded to 93-3971-05)

$98.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 93-3978

Cable Control

$47.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 3296-8

Nut-Lock

$1.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 93-3972

Handle-Lower
(Superseded to 93-3972-05)

$

$

Not available

7

Lawn-Boy 19-4050

Knob

$17.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 321-48

Screw-HH

$1.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 93-3965

Cover-Bail

$

$

Not available

10

Lawn-Boy 93-3977

Bail

$139.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 93-3969

Housing-Bail

$11.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 94-3851

Spring-Slide

$1.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 94-1154

Spring-Bail

$44.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 93-3967

Cam

$8.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 94-1191

Nut-Push

$3.49

$

In Stock, only 3 left!

0

16

Lawn-Boy 93-3968

Slide

$7.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 94-3868

Washer-Flat

$1.49

$

In Stock, Qty 9

0

18

Lawn-Boy 94-4496

Screw-PH

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 94-7407

Support-Cable

$

$

Not available

20

Lawn-Boy 3256-2

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 94-7409

Clip-Cable

$

$

Not available

Lawn-Boy 17-3249

Loose Part Kit

Note: Not Illustrated

$

$

Not available
