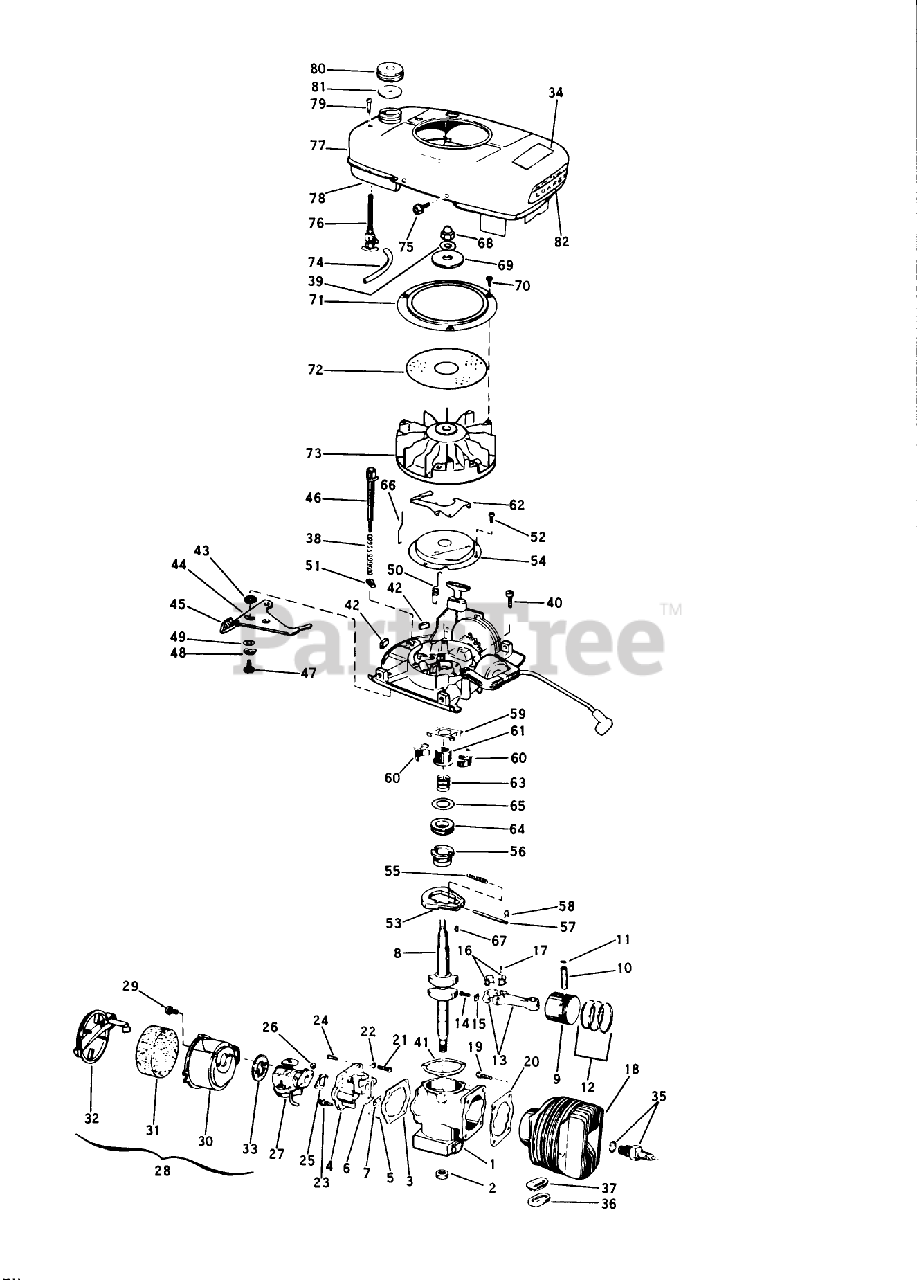

1012 - Lawn-Boy 9" Edger (SN: 500000001 - 599999999) (1965) Model D-452 Engine Parts List Parts Diagram

9" Edger

Model D-452 Engine Parts List Parts Diagram

  • Title

1

Lawn-Boy 678023

DISCONTINUED

$

$

Not available

2

Lawn-Boy 603101

DISCONTINUED

$

$

Not available

3

Lawn-Boy 604000

See Supercession: 608362
(Superseded to 608362)

Note: 678071-Gasket Set

$4.49

$

In Stock, Qty 8

0

4

Lawn-Boy 486718

DISCONTINUED

$

$

Not available

5

Lawn-Boy 303761

See Supercession: 612872
(Superseded to 612872)

$2.49

$

In Stock, Qty 5

0

6

Lawn-Boy 602588

DISCONTINUED

$

$

Not available

7

Lawn-Boy 602587

PLATE-BACKUP, REED

$3.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 604316

DISCONTINUED

$

$

Not available

Lawn-Boy 678065

See Supercession: 682864
(Superseded to 682864)

$

$

Not available

9

Lawn-Boy 604099

See Supercession: 682864
(Superseded to 682864)

$

$

Not available

10

Lawn-Boy 303711

DISCONTINUED

$

$

Not available

11

Lawn-Boy 303712

RING-RETAINING

$3.49

$

In Stock, Qty 11

0

12

Lawn-Boy 678422

DISCONTINUED

$

$

Not available

13

Lawn-Boy 677966

See Supercession: 682864
(Superseded to 682864)

$

$

Not available

14

Lawn-Boy 603976

SCREW

$

$

Not available

15

Lawn-Boy 307578

DISCONTINUED

$

$

Not available

16

Lawn-Boy 677982

LINER ASM

$46.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 677963

See Supercession: 683911
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

18

Lawn-Boy 678133

See Supercession: 678106
(Superseded to 678106)

$

$

Not available

19

Lawn-Boy 602657

DISCONTINUED

$

$

Not available

20

Lawn-Boy 604116

GASKET S

Note: 678071-Gasket Set

$3.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 604738

DISCONTINUED

$

$

Not available

22

Lawn-Boy 605076

DISCONTINUED

$

$

Not available

23

Lawn-Boy 604857

SCREW S

$7.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 602192

SCREW S

$

$

Not available

25

Lawn-Boy 602052

GASKET S

Note: 678071-Gasket Set

$3.99

$

In Stock, Qty 18

0

26

Lawn-Boy 602201

STOP NUT

$

$

Not available

27

Lawn-Boy 678375

See Supercession: 681072
(Superseded to 681072)

$

$

Not available

28

Lawn-Boy 678321

DISCONTINUED

$

$

Not available

29

Lawn-Boy 602775

SCREW S

$

$

Not available

30

Lawn-Boy 604698

DISCONTINUED

$

$

Not available

31

Lawn-Boy 604274

AIR FIL.ELEM S

$8.49

$

In Stock, Qty 6

0

32

Lawn-Boy 678122

See Supercession: 679425
(Superseded to 679425)

$

$

Not available

33

Lawn-Boy 604697

DISCONTINUED

$

$

Not available

34

Lawn-Boy 604834

Decal-Instruction

$

$

Currently unavailable

35

Lawn-Boy 602721

Spark Plug

$

$

Currently unavailable

36

Lawn-Boy 604624

GASKET S

Note: 678071-Gasket Set

$11.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 602717

SLEEVE

$2.99

$

In Stock, Qty 16

0

38

Lawn-Boy 604248

SPRING S

$5.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 304161

DISCONTINUED

$

$

Not available

40

Lawn-Boy 604742

DISCONTINUED

$

$

Not available

41

Lawn-Boy 602590

GASKET S

Note: 678071-Gasket Set

$

$

Not available

41

Lawn-Boy 602763

GASKET S

Note: 678071-Gasket Set

$2.49

$

In Stock, only 1 left!

0

42

Lawn-Boy 602816

DISCONTINUED

$

$

Not available

43

Lawn-Boy 202133

Washer-Vari-Speed

$

$

Currently unavailable

44

Lawn-Boy 678419

DISCONTINUED

$

$

Not available

45

Lawn-Boy 604254

DISCONTINUED

$

$

Not available

46

Lawn-Boy 604352

DISCONTINUED

$

$

Not available

47

Lawn-Boy 604280

DISCONTINUED

$

$

Not available

48

Lawn-Boy 604290

DISCONTINUED

$

$

Not available

49

Lawn-Boy 311734

DISCONTINUED

$

$

Not available

50

Lawn-Boy 604291

SPRING

$

$

Not available

51

Lawn-Boy 604249

DISCONTINUED

$

$

Not available

52

Lawn-Boy 604344

SCREW S

$

$

Not available

53

Lawn-Boy 604263

FLYWEIGHT S

$

$

Not available

54

Lawn-Boy 604264

DUST COVER S

$

$

Not available

55

Lawn-Boy 604267

SPARK ADV. SPRING S

$4.49

$

Usually ships in 3-6 days

0

56

Lawn-Boy 604276

SPARK ADV. S

$

$

Not available

57

Lawn-Boy 604277

PIN,SPARK ADV. S

$

$

Not available

58

Lawn-Boy 604314

SPARK ADJ. SPRING

$3.99

$

Usually ships in 3-6 days

0

Lawn-Boy 678149

DISCONTINUED

$

$

Not available

59

Lawn-Boy 602635

YOKE S

$

$

Not available

60

Lawn-Boy 602636

DISCONTINUED

$

$

Not available

61

Lawn-Boy 602634

COLLAR S

$24.99

$

In Stock, only 3 left!

0

62

Lawn-Boy 604266

LEVER-GOVERNOR S

$9.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 604269

SPRING S

$8.99

$

Usually ships in 3-6 days

0

64

Lawn-Boy 604265

THRUST COLLAR S

$12.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 604413

DISCONTINUED

$

$

Not available

66

Lawn-Boy 604297

ROD S

$22.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 120395

See Supercession: 607199
(Superseded to 607199)

$5.49

$

In Stock, Qty 9

0

68

Lawn-Boy 604273

NUT

$19.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 604348

DISCONTINUED

$

$

Not available

70

Lawn-Boy 309072

DISCONTINUED

$

$

Not available

71

Lawn-Boy 604271

Ring-Flywhl. Scrn.

$

$

Currently unavailable

72

Lawn-Boy 604272

DISCONTINUED

$

$

Not available

73

Lawn-Boy 678355

DISCONTINUED

$

$

Not available

74

Lawn-Boy 604325

DISCONTINUED

$

$

Not available

75

Lawn-Boy 602848

SCREW S

$

$

Not available

76

Lawn-Boy 677052

VALVE&SCREEN SM

$23.99

$

In Stock, only 2 left!

0

Lawn-Boy 678127

Shroud Gas Tank Assy.

$

$

Currently unavailable

77

Lawn-Boy 678136

DISCONTINUED

$

$

Not available

78

Lawn-Boy 677325

DISCONTINUED

$

$

Not available

79

Lawn-Boy 604739

DISCONTINUED

$

$

Not available

80

Lawn-Boy 678410

DISCONTINUED

$

$

Not available

81

Lawn-Boy 604988

DISCONTINUED

$

$

Not available

82

Lawn-Boy 604893

DISCONTINUED

$

$

Not available
