1011 - Lawn-Boy Edger (SN: 400000001 - 499999999) (1964) Model 7252 Grasscatcher Deluxe Parts List Parts Diagram

Edger

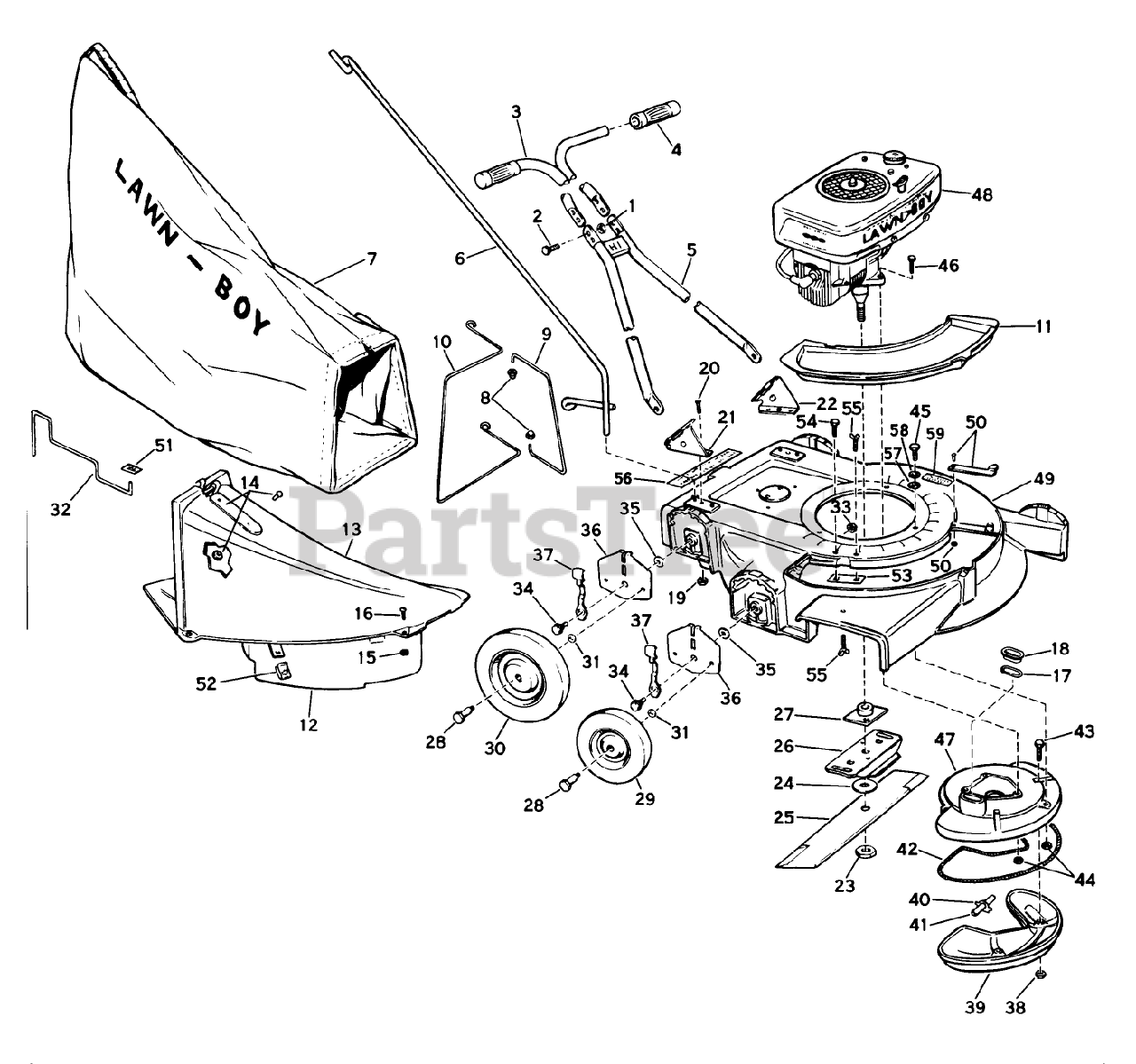

Model 7252 Grasscatcher Deluxe Parts List Parts Diagram

  • Title

1

Lawn-Boy 602201

STOP NUT

$

$

Not available

2

Lawn-Boy 603105

DISCONTINUED

$

$

Not available

3

Lawn-Boy 677354

DISCONTINUED

$

$

Not available

4

Lawn-Boy 604139

HANDLE GRIP

$29.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 677797

DISCONTINUED

$

$

Not available

6

Lawn-Boy 678002

DISCONTINUED

$

$

Not available

7

Lawn-Boy 678019

DISCONTINUED

$

$

Not available

8

Lawn-Boy 603964

Nut-Self Threading

$

$

Currently unavailable

9

Lawn-Boy 604046

Frame, Left-Bag

$

$

Currently unavailable

10

Lawn-Boy 604047

DISCONTINUED

$

$

Not available

11

Lawn-Boy 678018

DISCONTINUED

$

$

Not available

Lawn-Boy 678004

DISCONTINUED

$

$

Not available

12

Lawn-Boy 678031

Skirt Assembly-Chute (Includes Hardware)

$

$

Currently unavailable

13

Lawn-Boy 678030

Chute and Spring Assy. (Includes Hardware)

$

$

Currently unavailable

14

Lawn-Boy 678024

DISCONTINUED

$

$

Not available

15

Lawn-Boy 133079

NUT S

$3.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 602063

DISCONTINUED

$

$

Not available

17

Lawn-Boy 602644

DISCONTINUED

$

$

Not available

18

Lawn-Boy 602717

SLEEVE

$2.99

$

In Stock, Qty 16

0

19

Lawn-Boy 602830

NUT

$

$

Not available

20

Lawn-Boy 602693

DISCONTINUED

$

$

Not available

21

Lawn-Boy 677118

DISCONTINUED

$

$

Not available

22

Lawn-Boy 677843

DISCONTINUED

$

$

Not available

23

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 602178

DISCONTINUED

$

$

Not available

25

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

26

Lawn-Boy 603541

DISCONTINUED

$

$

Not available

27

Lawn-Boy 677525

PLATE AND COLLAR ASM

$51.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 603441

BOLT WHEEL

$7.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 677998

DISCONTINUED

$

$

Not available

30

Lawn-Boy 677999

DISCONTINUED

$

$

Not available

31

Lawn-Boy 603620

WASHER WROUGHT

$5.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 604051

DISCONTINUED

$

$

Not available

33

Lawn-Boy 602830

NUT

$

$

Not available

34

Lawn-Boy 603440

BOLT

$71.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 603553

DISCONTINUED

$

$

Not available

36

Lawn-Boy 604077

DISCONTINUED

$

$

Not available

37

Lawn-Boy 604078

DISCONTINUED

$

$

Not available

38

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

39

Lawn-Boy 604024

DISCONTINUED

$

$

Not available

40

Lawn-Boy 603149

Gasket-Internal Tube

$

$

Currently unavailable

41

Lawn-Boy 603150

Tube-Internal Muffler

$

$

Currently unavailable

42

Lawn-Boy 604516

DISCONTINUED

$

$

Not available

43

Lawn-Boy 604036

See Supercession: 607847
(Superseded to 607847)

$

$

Not available

44

Lawn-Boy 602830

NUT

$

$

Not available

45

Lawn-Boy 602694

DISCONTINUED

$

$

Not available

46

Lawn-Boy 604039

DISCONTINUED

$

$

Not available

47

Lawn-Boy 604026

DISCONTINUED

$

$

Not available

48

Lawn-Boy 678110

DISCONTINUED

$22.99

$

In Stock, only 3 left!

0

49

Lawn-Boy 678028

Housing Cover Assy. 21"

$

$

Currently unavailable

50

Lawn-Boy 678010

Spring, Rivet Washer Assy.

$

$

Currently unavailable

51

Lawn-Boy 602825

DISCONTINUED

$

$

Not available

52

Lawn-Boy 604227

SPEED NUT ARDEN

$

$

Not available

53

Lawn-Boy 604214

DISCONTINUED

$

$

Not available

54

Lawn-Boy 603012

DISCONTINUED

$

$

Not available

55

Lawn-Boy 604213

DISCONTINUED

$

$

Not available

56

Lawn-Boy 604350

Decal, Instruction

$

$

Currently unavailable

57

Lawn-Boy 306453

DISCONTINUED

$

$

Not available

58

Lawn-Boy 306325

DISCONTINUED

$

$

Not available

59

Lawn-Boy 604575

DISCONTINUED

$

$

Not available
