1010 - Lawn-Boy Edger (SN: 200000001 - 299999999) (1962) Model C-17aa Engine Parts List Parts Diagram

Edger

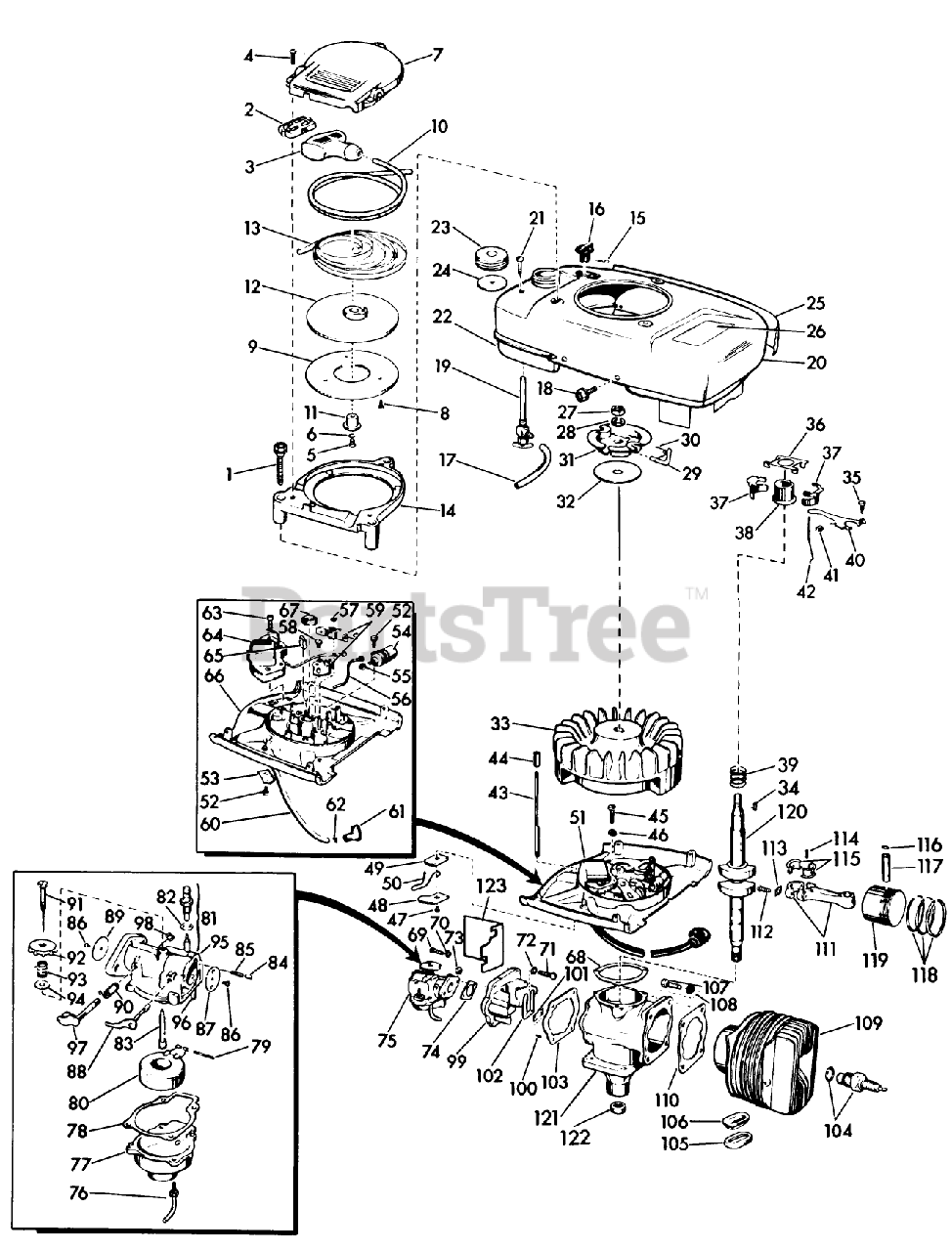

Model C-17aa Engine Parts List Parts Diagram

  • Title

1

Lawn-Boy 602840

DISCONTINUED

$

$

Not available

1

Lawn-Boy 486315

DISCONTINUED

$

$

Not available

2

Lawn-Boy 304325

DISCONTINUED

$

$

Not available

3

Lawn-Boy 602773

DISCONTINUED

$

$

Not available

4

Lawn-Boy 304381

DISCONTINUED

$

$

Not available

5

Lawn-Boy 306408

DISCONTINUED

$

$

Not available

6

Lawn-Boy 306396

Washer

$

$

Currently unavailable

7

Lawn-Boy 603802

DISCONTINUED

$

$

Not available

8

Lawn-Boy 602821

SCREW

$

$

Not available

9

Lawn-Boy 403084

Plate-Pulley

$

$

Currently unavailable

10

Lawn-Boy 602823

DISCONTINUED

$

$

Not available

11

Lawn-Boy 602609

DISCONTINUED

$

$

Not available

12

Lawn-Boy 602819

DISCONTINUED

$

$

Not available

13

Lawn-Boy 602610

RECOIL SPRING

$

$

Not available

14

Lawn-Boy 402276

DISCONTINUED

$

$

Not available

15

Lawn-Boy 602723

Cotter Pin-Choke Knob

$

$

Currently unavailable

16

Lawn-Boy 602623

KNOB, CHOKE BAR

$6.49

$

In Stock, Qty 6

0

17

Lawn-Boy 602253

DISCONTINUED

$

$

Not available

18

Lawn-Boy 602848

SCREW S

$

$

Not available

19

Lawn-Boy 677052

VALVE&SCREEN SM

$23.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 677551

DISCONTINUED

$

$

Not available

20

Lawn-Boy 677552

DISCONTINUED

$

$

Not available

21

Lawn-Boy 132823

DISCONTINUED

$

$

Not available

22

Lawn-Boy 677325

DISCONTINUED

$

$

Not available

23

Lawn-Boy 677081

Gas Cap

$

$

Currently unavailable

24

Lawn-Boy 602059

DISCONTINUED

$

$

Not available

25

Lawn-Boy 402834

DISCONTINUED

$

$

Not available

26

Lawn-Boy 603154

DISCONTINUED

$

$

Not available

27

Lawn-Boy 130981

DISCONTINUED

$

$

Not available

28

Lawn-Boy 304161

DISCONTINUED

$

$

Not available

29

Lawn-Boy 602612

PIN - STARTER

$23.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 602613

DISCONTINUED

$

$

Not available

31

Lawn-Boy 602615

DISCONTINUED

$

$

Not available

32

Lawn-Boy 602617

DISCONTINUED

$

$

Not available

33

Lawn-Boy 486420

DISCONTINUED

$

$

Not available

34

Lawn-Boy 120395

See Supercession: 607199
(Superseded to 607199)

$5.49

$

In Stock, Qty 9

0

35

Lawn-Boy 604121

DISCONTINUED

$

$

Not available

36

Lawn-Boy 602635

YOKE S

$

$

Not available

37

Lawn-Boy 602636

DISCONTINUED

$

$

Not available

38

Lawn-Boy 602634

COLLAR S

$24.99

$

In Stock, only 3 left!

0

39

Lawn-Boy 402537

DISCONTINUED

$

$

Not available

40

Lawn-Boy 677294

GOVERNER LEVER AY

$

$

Not available

41

Lawn-Boy 602639

WEAR BLOCK S

$2.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 602638

GOVERNOR ROD S

$

$

Not available

43

Lawn-Boy 604055

DISCONTINUED

$

$

Not available

44

Lawn-Boy 602733

DISCONTINUED

$

$

Not available

45

Lawn-Boy 306408

DISCONTINUED

$

$

Not available

46

Lawn-Boy 306396

Washer

$

$

Currently unavailable

47

Lawn-Boy 602625

Screw Shut-off Switch

$

$

Currently unavailable

48

Lawn-Boy 604074

DISCONTINUED

$

$

Not available

49

Lawn-Boy 602621

DISCONTINUED

$

$

Not available

50

Lawn-Boy 602618

SPRING

$

$

Not available

51

Lawn-Boy 678052

DISCONTINUED

$

$

Not available

52

Lawn-Boy 602651

See Supercession: 604344
(Superseded to 604344)

$

$

Not available

53

Lawn-Boy 602454

DISCONTINUED

$

$

Not available

54

Lawn-Boy 677299

DISCONTINUED

$

$

Not available

55

Lawn-Boy 133079

NUT S

$3.49

$

Usually ships in 3-6 days

0

56

Lawn-Boy 677237

DISCONTINUED

$

$

Not available

57

Lawn-Boy 307594

DISCONTINUED

$

$

Not available

58

Lawn-Boy 302812

DISCONTINUED

$

$

Not available

59

Lawn-Boy 677254

BREAKER AY. S

$54.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 677293

See Supercession: 684179
(Superseded to 684179)

$32.99

$

In Stock, only 1 left!

0

61

Lawn-Boy 510232

Cover-Rubber

$

$

Currently unavailable

62

Lawn-Boy 510231

See Supercession: 684698
(Superseded to 684698)

$7.49

$

Usually ships in 3-6 days

0

63

Lawn-Boy 510195

DISCONTINUED

$

$

Not available

64

Lawn-Boy 580184

DISCONTINUED

$

$

Not available

65

Lawn-Boy 603754

DISCONTINUED

$

$

Not available

66

Lawn-Boy 678057

DISCONTINUED

$

$

Not available

67

Lawn-Boy 602632

See Supercession: 611396
(Superseded to 611396)

$6.99

$

In Stock, Qty 19

0

68

Lawn-Boy 602590

GASKET S

Note: 678071 Gasket Set

$

$

Not available

68

Lawn-Boy 602763

GASKET S

Note: 678071 Gasket Set

$2.49

$

In Stock, only 1 left!

0

69

Lawn-Boy 602192

SCREW S

$

$

Not available

70

Lawn-Boy 306396

Washer

$

$

Currently unavailable

71

Lawn-Boy 132492

DISCONTINUED

$

$

Not available

72

Lawn-Boy 303630

DISCONTINUED

$

$

Not available

73

Lawn-Boy 602201

STOP NUT

$

$

Not available

74

Lawn-Boy 602052

GASKET S

$3.99

$

In Stock, Qty 18

0

75

Lawn-Boy 486411

DISCONTINUED

$

$

Not available

76

Lawn-Boy 603169

DISCONTINUED

$

$

Not available

77

Lawn-Boy 602712

DISCONTINUED

$

$

Not available

78

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

Note: 677271 Carburetor Repair Kit

$3.49

$

In Stock, Qty 20+

0

79

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

Note: 677271 Carburetor Repair Kit

$5.99

$

In Stock, only 1 left!

0

80

Lawn-Boy 486410

DISCONTINUED

$

$

Not available

81

Lawn-Boy 486218

DISCONTINUED
(Superseded to 678736)

Note: 677271 Carburetor Repair Kit

$

$

Not available

82

Lawn-Boy 301996

WASHER

$3.49

$

Usually ships in 3-6 days

0

83

Lawn-Boy 601096

DISCONTINUED

Note: 677271 Carburetor Repair Kit

$

$

Not available

84

Lawn-Boy 601098

DISCONTINUED

$

$

Not available

85

Lawn-Boy 601097

DISCONTINUED

$

$

Not available

86

Lawn-Boy 53X220

Screw-Choke Disc

Note: 677271 Carburetor Repair Kit

$

$

Currently unavailable

87

Lawn-Boy 402509

Disc-Choke

$

$

Currently unavailable

88

Lawn-Boy 677241

CHOKE SHAFT&LVR AY

$116.99

$

Usually ships in 3-6 days

0

89

Lawn-Boy 602290

DISCONTINUED

$

$

Not available

90

Lawn-Boy 602685

SPRING

Note: 677271 Carburetor Repair Kit

$

$

Not available

91

Lawn-Boy 677039

NEEDLE AY. S

Note: 677271 Carburetor Repair Kit

$

$

Not available

92

Lawn-Boy 602495

KNOB S

$7.99

$

In Stock, only 1 left!

0

93

Lawn-Boy 602293

Spring-Ndl. Adj.

$

$

Currently unavailable

94

Lawn-Boy 306561

Washer

$

$

Currently unavailable

95

Lawn-Boy 402508

DISCONTINUED

$

$

Not available

96

Lawn-Boy 402510

DISCONTINUED

$

$

Not available

97

Lawn-Boy 677637

DISCONTINUED

$

$

Not available

98

Lawn-Boy 603292

DISCONTINUED

$

$

Not available

99

Lawn-Boy 486718

DISCONTINUED

$

$

Not available

100

Lawn-Boy 303761

See Supercession: 612872
(Superseded to 612872)

$2.49

$

In Stock, Qty 5

0

101

Lawn-Boy 602587

PLATE-BACKUP, REED

$3.49

$

Usually ships in 3-6 days

0

102

Lawn-Boy 602588

DISCONTINUED

$

$

Not available

103

Lawn-Boy 604000

See Supercession: 608362
(Superseded to 608362)

Note: 678071 Gasket Set

$4.49

$

In Stock, Qty 7

0

104

Lawn-Boy 602721

Spark Plug

$

$

Currently unavailable

105

Lawn-Boy 602644

DISCONTINUED

Note: 678071 Gasket Set

$

$

Not available

106

Lawn-Boy 602717

SLEEVE

$2.99

$

In Stock, Qty 16

0

107

Lawn-Boy 602657

DISCONTINUED

$

$

Not available

108

Lawn-Boy 306325

DISCONTINUED

$

$

Not available

109

Lawn-Boy 677607

DISCONTINUED

$

$

Not available

110

Lawn-Boy 603038

DISCONTINUED

$

$

Not available

110

Lawn-Boy 677969

DISCONTINUED

$

$

Not available

111

Lawn-Boy 677966

See Supercession: 682864
(Superseded to 682864)

$

$

Not available

112

Lawn-Boy 603976

SCREW

$

$

Not available

113

Lawn-Boy 307578

DISCONTINUED

$

$

Not available

114

Lawn-Boy 677963

See Supercession: 683911
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

115

Lawn-Boy 677982

LINER ASM

$46.99

$

In Stock, only 4 left!

0

116

Lawn-Boy 120325

DISCONTINUED

$

$

Not available

117

Lawn-Boy 202522

DISCONTINUED

$

$

Not available

118

Lawn-Boy 603181

DISCONTINUED

$

$

Not available

119

Lawn-Boy 603180

DISCONTINUED

$

$

Not available

120

Lawn-Boy 604092

DISCONTINUED

$

$

Not available

121

Lawn-Boy 678038

Crankcase Reed Plate Assy.

$

$

Currently unavailable

122

Lawn-Boy 602632

See Supercession: 611396
(Superseded to 611396)

$6.99

$

In Stock, Qty 19

0

123

Lawn-Boy 402523

DISCONTINUED

$

$

Not available
