101 (19A-101-100) - Cub Cadet Twin Rear Bagger att General Assembly Model 101 Parts Diagram

Twin Rear Bagger

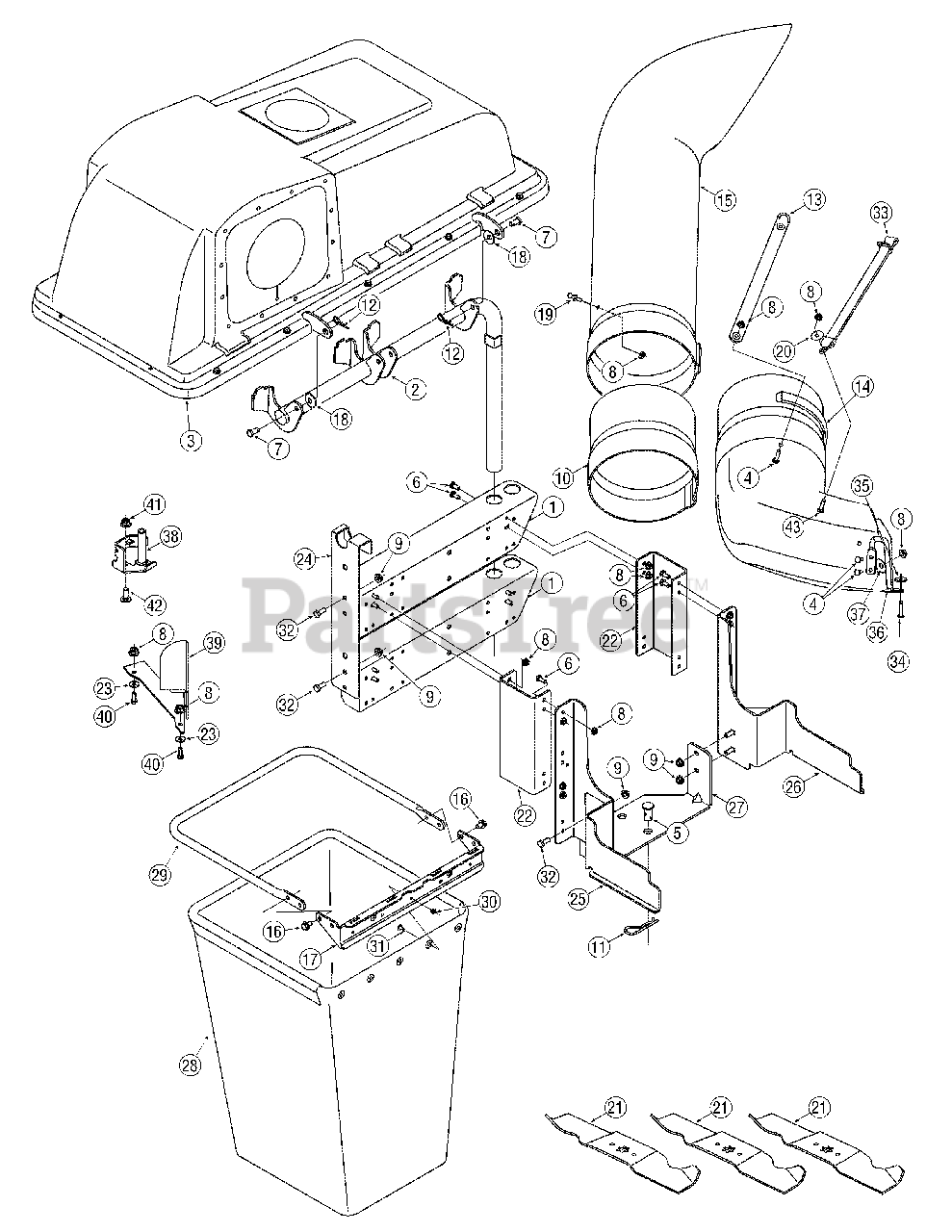

General Assembly Model 101 Parts Diagram

  • Title

1

Cub Cadet 16587D

Bracket Support
(Superseded to 16587D-0637)

Variations

Cub Cadet 16587D-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16592

Support Tube Assembly
(Superseded to 16592-0637)

Variations

Cub Cadet 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 664-04017

Grass catcher Cover Assembly

$

$

Not available

4

Cub Cadet 710-0597

Screw 1/4-20 x 1"

$3.99

$

In Stock, Qty 14

0

5

Cub Cadet 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 6

0

6

Cub Cadet 710-0751

Hex Screw 1/4-20 x0.620

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 711-1421

Clevis Pin

$7.49

$

In Stock, only 3 left!

0

8

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 731-2299A

Extension Tube

$73.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 714-0117

Hairpin Clip

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 723-04009A

Chute Strap - 50" Deck

$11.99

$

In Stock, only 1 left!

0

14

Cub Cadet 631-0221A

Discharge Chute - 50" Deck

$260.99

$

In Stock, only 2 left!

0

15

Cub Cadet 731-0926B

Catcher Tube

$142.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-0604A

Self-Tapping Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 16591A

Bag Hanger Bracket
(Superseded to 16591A-0637)

Variations

Cub Cadet 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0331

Bell Washer

$3.99

$

In Stock, Qty 16

0

19

Cub Cadet 711-04069

Grass catcher Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-3092

Flat Washer

$3.99

$

In Stock, Qty 9

0

21

Cub Cadet 742-04056C

Blade, 17.90" Lg. (3) - 50" Deck
(Superseded to 942-04056C)

Variations

Cub Cadet 742-04056C-0637

Mower Blade, 17.90 Lg - POWDER BLACK (0637)

$35.99

$

In Stock, only 3 left!

0

$35.99

$

In Stock, only 3 left!

0

22

Cub Cadet 783-05414

Mounting Bracket Spacer
(Superseded to 783-05414-0637)

Variations

Cub Cadet 783-05414-0637

BRACKET-FAST ATTAC - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 783-0601

Catcher Support
(Superseded to 783-0601-0637)

Variations

Cub Cadet 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 683-04348

Mounting Bracket - RH

Variations

Cub Cadet 683-04348-0637

MOUNTING BRACKET - RH(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 683-04350

Mounting Bracket - LH
(Superseded to 683-04350-0637)

Variations

Cub Cadet 683-04350-0637

Fast Bracket Assembly - POWDER BLACK (0637)

$108.99

$

Usually ships in 3-6 days

0

$108.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-0765

Cross Support Bracket
(Superseded to 783-0765-0637)

Variations

Cub Cadet 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

28

Cub Cadet 764-0221

Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

29

Cub Cadet 749-0701A

Grass Bag Frame
(Superseded to 749-0701A-0637)

Variations

Cub Cadet 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-0272

Hex Sems Nut, #10-24

$3.99

$

In Stock, only 1 left!

0

31

Cub Cadet 710-0473

Machine Screw, , #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 710-3008

Hex Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

34

Cub Cadet 728-0173

Pop Rivet
(Superseded to 928-0173)

$4.49

$

In Stock, only 4 left!

0

35

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$5.49

$

In Stock, Qty 14

0

36

Cub Cadet 747-2134A

Bag Mount Rod

$62.99

$

In Stock, only 1 left!

0

37

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

38

Cub Cadet 683-0617A

Chute Stop Bracket
(Superseded to 683-0617A-0637)

Variations

Cub Cadet 683-0617A-0637

Chute Deflector Stop, Black - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 703-05783

50" Deck Deflector
(Superseded to 703-05783-0637)

Variations

Cub Cadet 703-05783-0637

Baffle, 50" - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 710-3015

Hhcs, 1-4/20 x .75

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-04065

Nut, Lock, Flange, 3/8-16

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0106

Screw 1/4-20 x 1.25"

$3.99

$

In Stock, only 2 left!

0
