10081 - Troy-Bilt Edger - Cultivator Plus MAIN ASSEMBLY Parts Diagram

Edger - Cultivator Plus

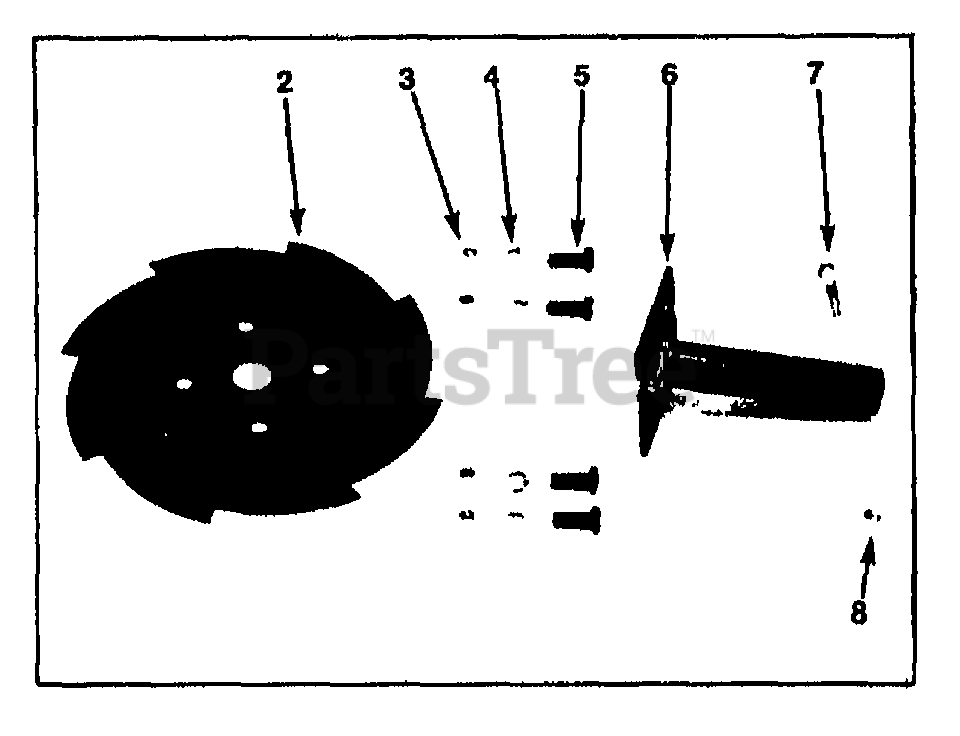

MAIN ASSEMBLY Parts Diagram

  • Title

MTD 10081

EDGER-CULT

$

$

Not available

2

Troy-Bilt 60132

BLADE-EDGER 10"

$

$

Currently unavailable

3

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

4

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

5

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

6

Troy-Bilt 60141

HOLDER-EDGER PNT

$

$

Currently unavailable

7

MTD 9555

BOLT-HH 3/8-16X1.75 G8 ZP

$

$

Not available

8

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available
